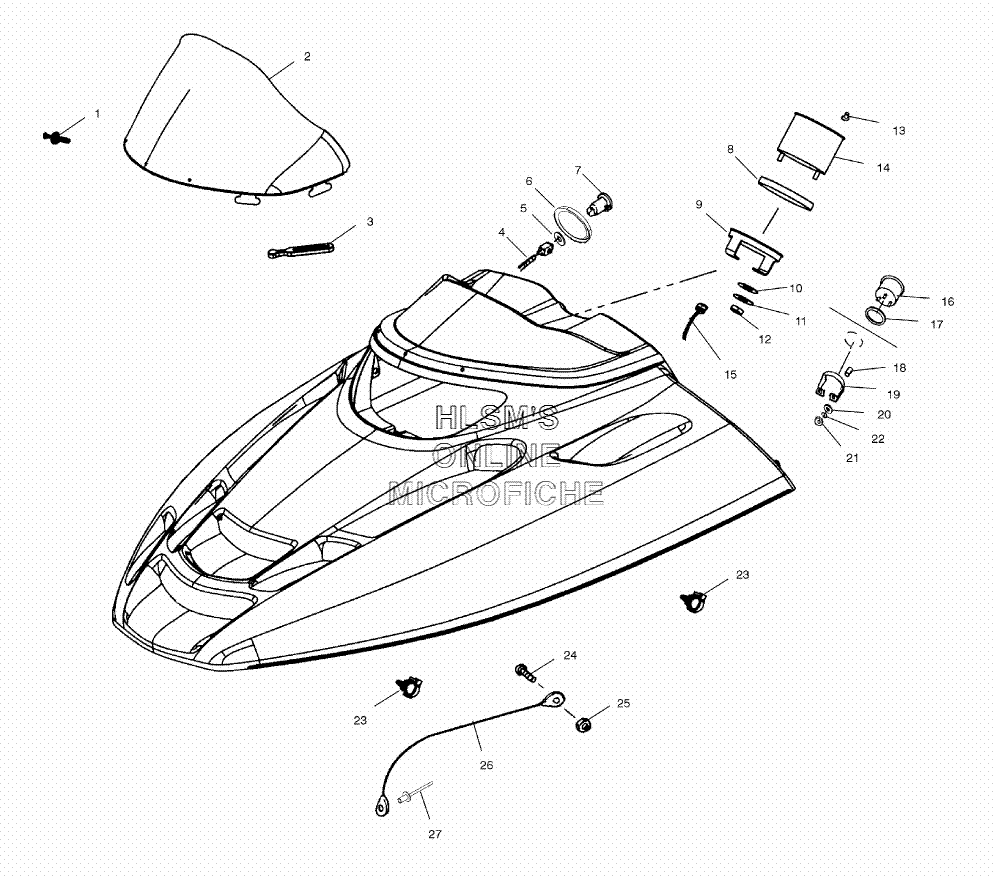

HOOD ACCESSORIES для Polaris 500 CLASSIC (S02ND4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET, PLASTIC
    RIVET, PLASTIC
  • 2
    5433517 WINDSHEILD, 15'' FLR SMK, EDGE
    WINDSHEILD, 15'' FLR SMK, EDGE
  • 3
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 4
    2460876 HARNESS, JUMPER (TEMP LIGHT)
    HARNESS, JUMPER (TEMP LIGHT)
  • 5
    7670133 RETAINER-1/2'' BOLT/LAMP
    RETAINER-1/2'' BOLT/LAMP
  • 6
    5434081 PLUG, DASH 5'' W/SINGLE 1/2''HOLE
    PLUG, DASH 5'' W/SINGLE 1/2''HOLE
  • 7
    4010535 INDICATOR, HIGH TEMP 1/2'' DIA
    INDICATOR, HIGH TEMP 1/2'' DIA
  • 8
    3280209 CUSHION, RUBBER TACH/SPEEDO
    CUSHION, RUBBER TACH/SPEEDO
  • 9
    3280210 BRACKET, TACH/SPEEDO 5''
    BRACKET, TACH/SPEEDO 5''
  • 10
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 11
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 12
    3280158 NUT
    NUT
  • 13
    3280186 KNOB, TRIP ODOMETER, THD. (LEFT)
    KNOB, TRIP ODOMETER, THD. (LEFT)
  • 14
    3280348 SPEEDO, 5'' 120MPH, WH. W/OANG
    SPEEDO, 5'' 120MPH, WH. W/OANG
  • 14
    4030015 BULB TAILLIGHT/TACH/SPEEDO
    BULB TAILLIGHT/TACH/SPEEDO
  • 15
    3280385 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 16
    3280334 GUAGE, FUEL, 2'' BACKLIT
    GUAGE, FUEL, 2'' BACKLIT
  • 16
    4060139 FUSE
    FUSE
  • 17
    3280230 CUSHION, FUELGAUGE (2'') RUBBER
    CUSHION, FUELGAUGE (2'') RUBBER
  • 18
    3280228 SPACER, BRACKET (FUELGAUGE)
    SPACER, BRACKET (FUELGAUGE)
  • 19
    3280229 BRACKET, FUELGAUGE (2'')
    BRACKET, FUELGAUGE (2'')
  • 20
    3280231 WASHER
    WASHER
  • 21
    3280232 NUT
    NUT
  • 22
    3280233 WASHER, SPLITLOCK
    WASHER, SPLITLOCK
  • 23
    4010589 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
  • 24
    7512018 SCREW
    SCREW
  • 25
    7541925 NUT
    NUT
  • 26
    7080521 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 27
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
