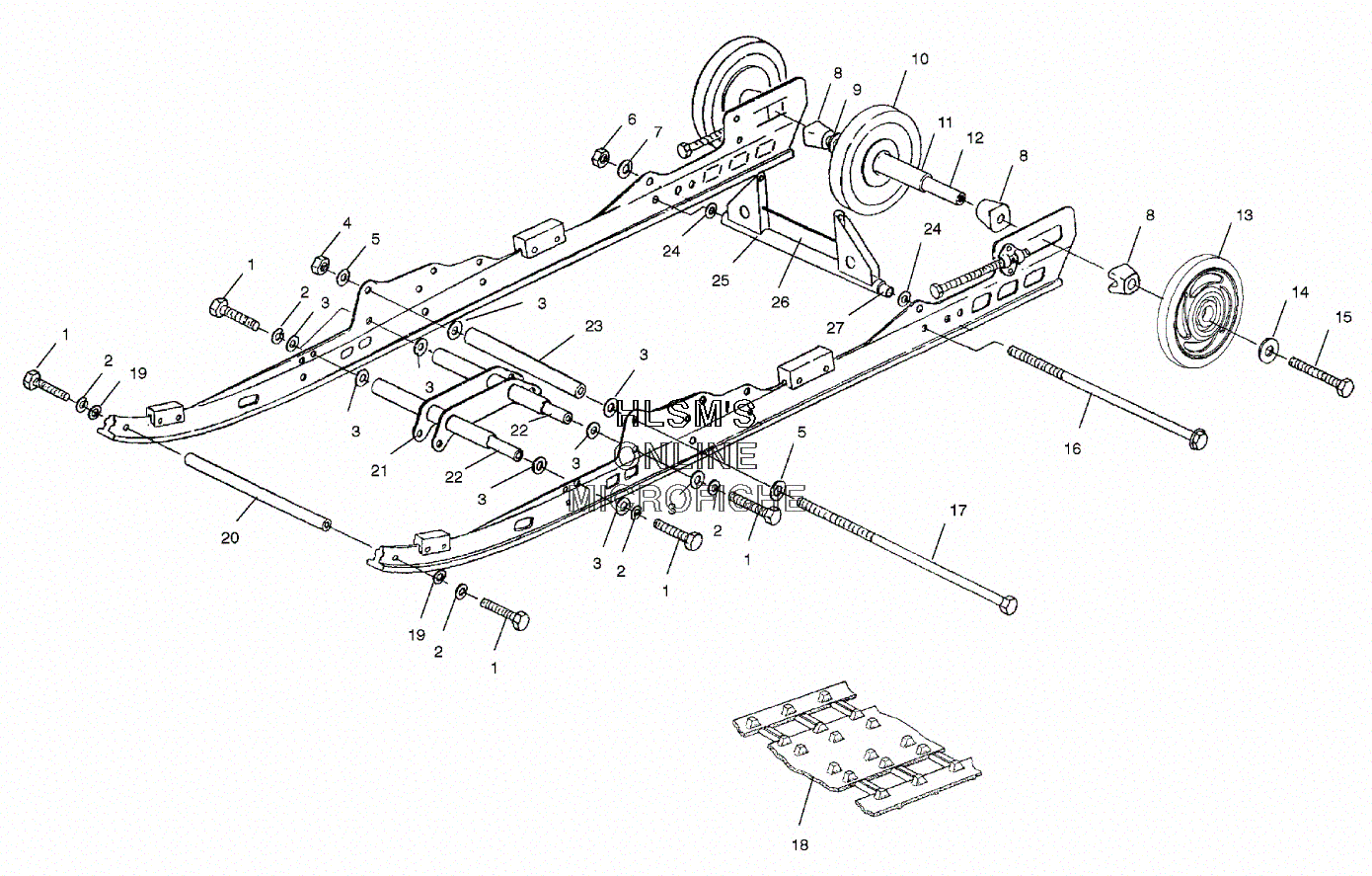

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска`
-
№АртикулНазвание
-
17517247 SCREWSCREW
-
27552603 WASHERWASHER
-
37555797 WASHERWASHER
-
47542411 NUT LOCKNUT LOCK
-
57555806 WASHERWASHER
-
67542319 NUT FLEX LOC,NUT FLEX LOC,
-
77558402 WASHER STEELWASHER STEEL
-
85432535 SPACER, IDLERSPACER, IDLER
-
97555918 BUSHINGBUSHING
-
101594087 WHEEL ASSY, PLAIN(6.38 O.D.)WHEEL ASSY, PLAIN(6.38 O.D.)
-
115333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
125020744 SHAFT, IDLERSHAFT, IDLER
-
131594083-256 WHEEL, IDLER, SCRL (C.RED)WHEEL, IDLER, SCRL (C.RED)
-
147571629 WASHERWASHER
-
157515526 BOLTBOLT
-
167517207 SCREWSCREW
-
177517353 SCREWSCREW
-
185241473 CLIP, SLIDECLIP, SLIDE
-
185241474 CLIP, GUIDECLIP, GUIDE
-
185411166 TRACK, MOD, LIGHTNING (133''X1'')TRACK, MOD, LIGHTNING (133''X1'')
-
197555923 WASHERWASHER
-
205020868 SHAFTSHAFT
-
211541521-067 MOUNT, SHOCK (1.28) (BLK)MOUNT, SHOCK (1.28) (BLK)
-
225020866 SHAFTSHAFT
-
235333511 SHAFTSHAFT
-
247555958 WASHERWASHER
-
251541103-067 WELDING, PIVOT ARM, REINFORCEMENT (REAR)WELDING, PIVOT ARM, REINFORCEMENT (REAR)
-
267080424 FITTING, LUBEFITTING, LUBE
-
275333477 TUBETUBE
