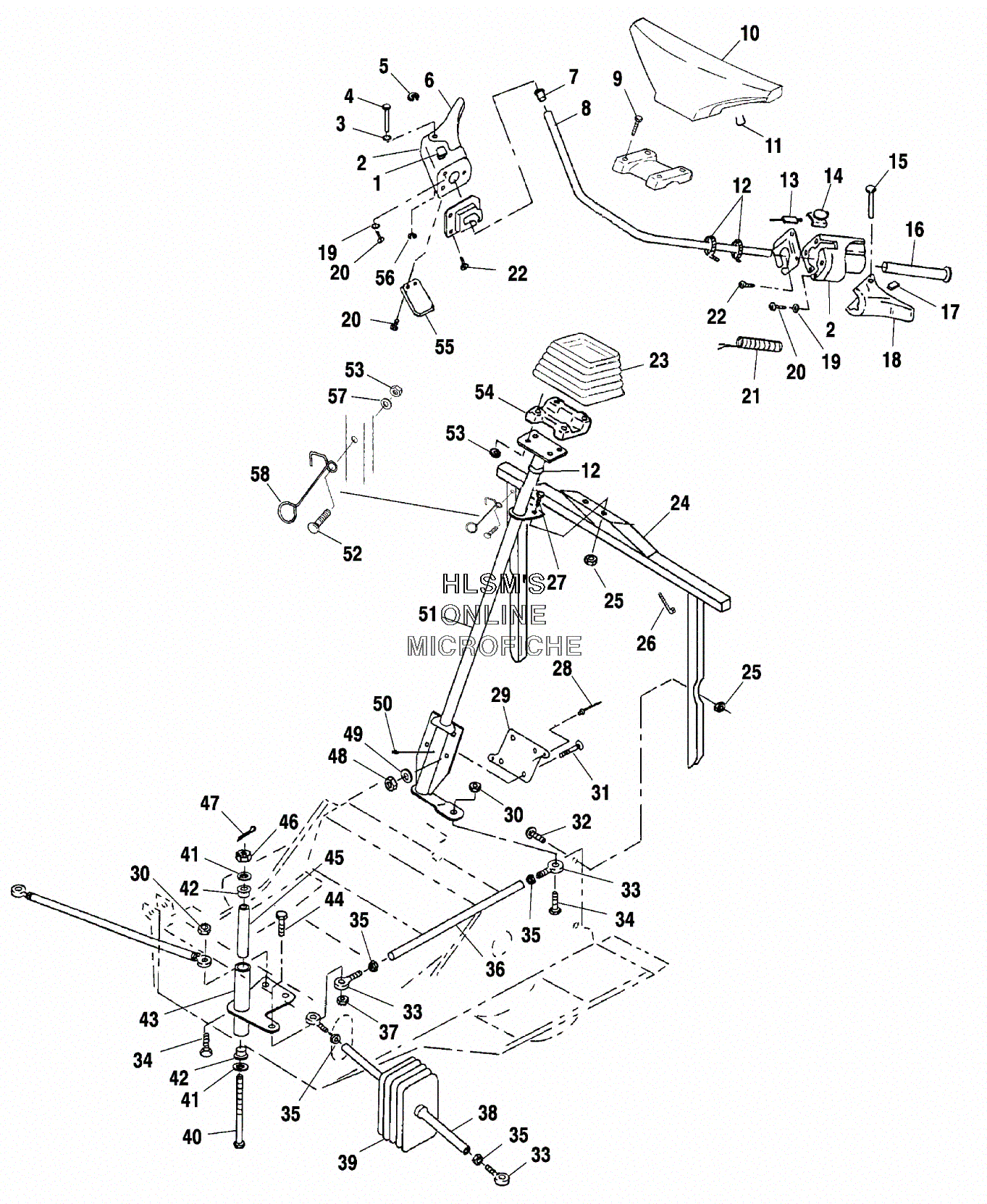

STEERING ASSEMBLY W/ HANDLEBAR для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска`
-
№АртикулНазвание
-
14110106 SWITCH, AUX.SHUT OFFSWITCH, AUX.SHUT OFF
-
25431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
37555730 WASHERWASHER
-
47661624 PIN HINGEPIN HINGE
-
57710401 E-RINGE-RING
-
65430601 LEVER THROTTLELEVER THROTTLE
-
62010147 LEVER, W/HTR (30 MM)LEVER, W/HTR (30 MM)
-
75431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
85224841-067 HANDLEBAR (BLK) (LITE)HANDLEBAR (BLK) (LITE)
-
97517238 SCREWSCREW
-
105432903 PAD, HANDLEBARPAD, HANDLEBAR
-
117080799 CLIP, HANDLEBAR PADCLIP, HANDLEBAR PAD
-
127080138 STRAP PANDUITSTRAP PANDUIT
-
134110105 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
144110104 SWITCH, DIMMERSWITCH, DIMMER
-
157661617 RIVETRIVET
-
165432634 GRIP, HANDLEBAR, SNOWGRIP, HANDLEBAR, SNOW
-
177670044 CLIP SPEEDOMETERCLIP SPEEDOMETER
-
185430602 LEVER BRAKELEVER BRAKE
-
197555727 RIVET BURRRIVET BURR
-
207511848 SCREW SEMSSCREW SEMS
-
212460313 HEATER GRIP ASSYHEATER GRIP ASSY
-
227512465 SCREWSCREW
-
235432827 BOOT, STEERING POSTBOOT, STEERING POST
-
241011863-067 HOOP, STEERING (BLK).HOOP, STEERING (BLK).
-
257542103 NUT, LOCKNUT, LOCK
-
267080804 CABLE TIE RELEASABLE (5 1/2'')CABLE TIE RELEASABLE (5 1/2'')
-
277515101 BOLTBOLT
-
287661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
295222421 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
-
307542439 NUT, NYLOKNUT, NYLOK
-
317512377 BOLTBOLT
-
327512298 BOLTBOLT
-
337060166 ROD END (LEFT)ROD END (LEFT)
-
337060167 ROD END (RIGHT)ROD END (RIGHT)
-
347515528 BOLTBOLT
-
357542424 NUTNUT
-
357542401 NUT HEXAGONNUT HEXAGON
-
365333816-067 ROD DRAGLINK (9.70 STEEL) (BLK)ROD DRAGLINK (9.70 STEEL) (BLK)
-
377542411 NUT LOCKNUT LOCK
-
385132136-067 ROD TIE (17.23) (BLK)ROD TIE (17.23) (BLK)
-
395411652 BOOT, TIE RODBOOT, TIE ROD
-
407512572 BOLTBOLT
-
417555817 WASHERWASHER
-
425630371 BUSHINGBUSHING
-
431820776-067 STEERING (CENTER) (BLK)STEERING (CENTER) (BLK)
-
447515434 SCREWSCREW
-
455333009 BUSHING, SPACERBUSHING, SPACER
-
467542503 NUT, LOCK,NUT, LOCK,
-
477661203 PIN COTTERPIN COTTER
-
487542303 NUT FLEX LOCNUT FLEX LOC
-
497558402 WASHER STEELWASHER STEEL
-
507080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
511822589-067 POST, STEERING (BLK)POST, STEERING (BLK)
-
527512193 BOLTBOLT
-
537542122 NUT LOCKNUT LOCK
-
545630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
555432261 HOLDER WIREHOLDER WIRE
-
567710401 E-RINGE-RING
-
577558302 WASHER, WROUGHTWASHER, WROUGHT
-
585224442-067 RINGMOUNT, RECOIL (BLK)RINGMOUNT, RECOIL (BLK)
