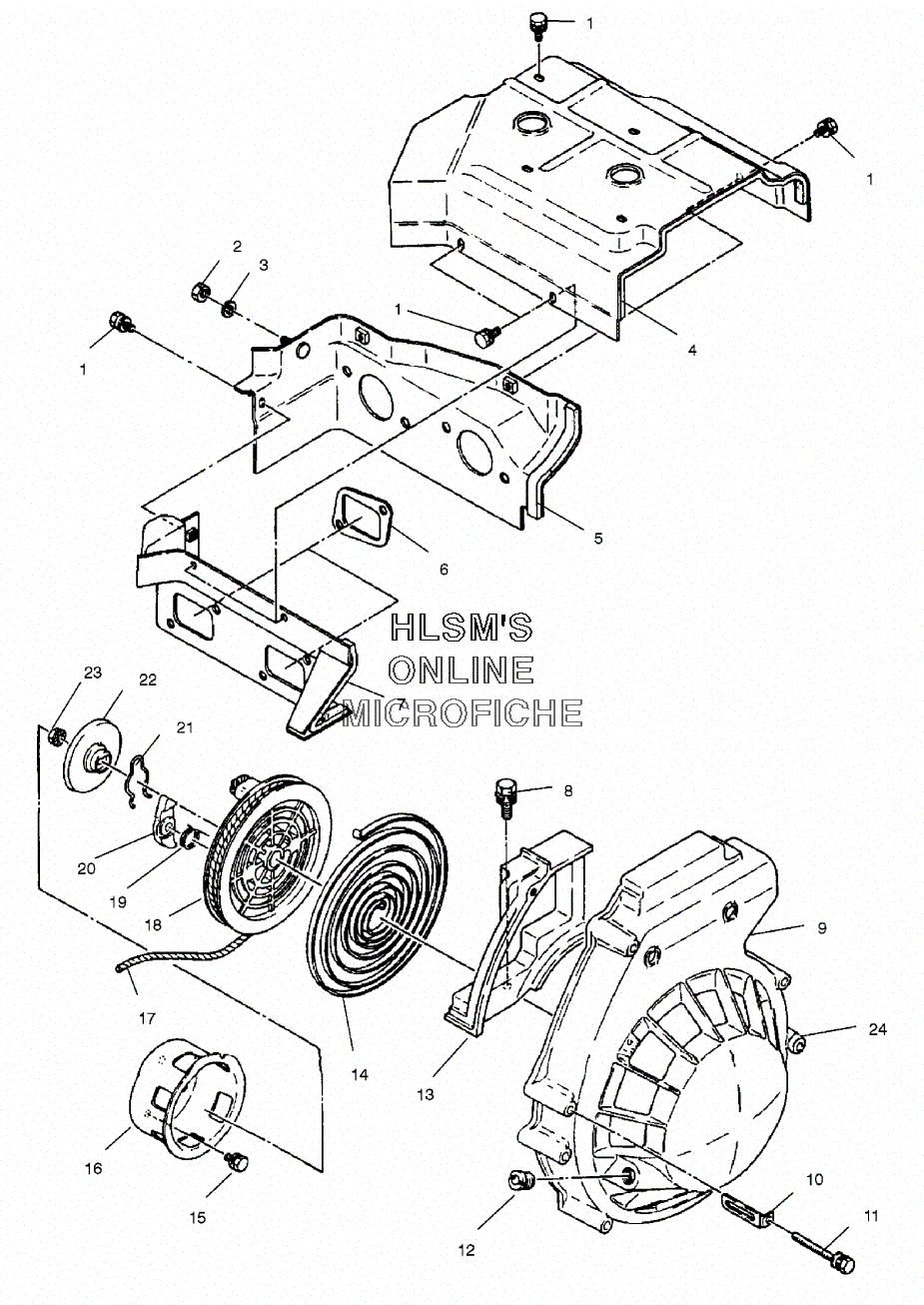

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска`
-
№АртикулНазвание
-
13083715 BOLT AND WASHER ASMBOLT AND WASHER ASM
-
23084375 NUT(10)NUT(10)
-
33080077 WASHER SPRINGWASHER SPRING
-
43084420 BAFFLE#1, CYL.BAFFLE#1, CYL.
-
53084421 BAFFLE#2, CYL.BAFFLE#2, CYL.
-
63085846 GASKET-INTAKEGASKET-INTAKE
-
73085847 CYLINDER-BAFFLE3 (INCL. 6-7)CYLINDER-BAFFLE3 (INCL. 6-7)
-
83081663 BOLT AND WASHERBOLT AND WASHER
-
93083588 RECOIL STARTER (INCL. 9,12,14,17-23)RECOIL STARTER (INCL. 9,12,14,17-23)
-
93083589 CASE, STARTERCASE, STARTER
-
103083590 CLAMPCLAMP
-
113083729 BOLTANDWASHERBOLTANDWASHER
-
123083107 GUIDE-ROPEGUIDE-ROPE
-
133083591 HOUSING, BLOWER#2HOUSING, BLOWER#2
-
143083376 SPRING, SPIRALSPRING, SPIRAL
-
153081665 BOLT,BOLT,
-
163083108 PULLEY-STARTINGPULLEY-STARTING
-
172870621 ROPE,100 FT,NYL.STARTER (BULK, CUT TO FIT)ROPE,100 FT,NYL.STARTER (BULK, CUT TO FIT)
-
183083377 REEL, REWINDREEL, REWIND
-
193083463 SPRING, RETURNSPRING, RETURN
-
203083378 RATCHETRATCHET
-
213083379 SPRING, FRICTIONSPRING, FRICTION
-
223083464 PLATE, FRICTIONPLATE, FRICTION
-
233083381 NUT, FLANGE ,NUT, FLANGE ,
-
247080367 CLAMP, CABLE,CLAMP, CABLE,
