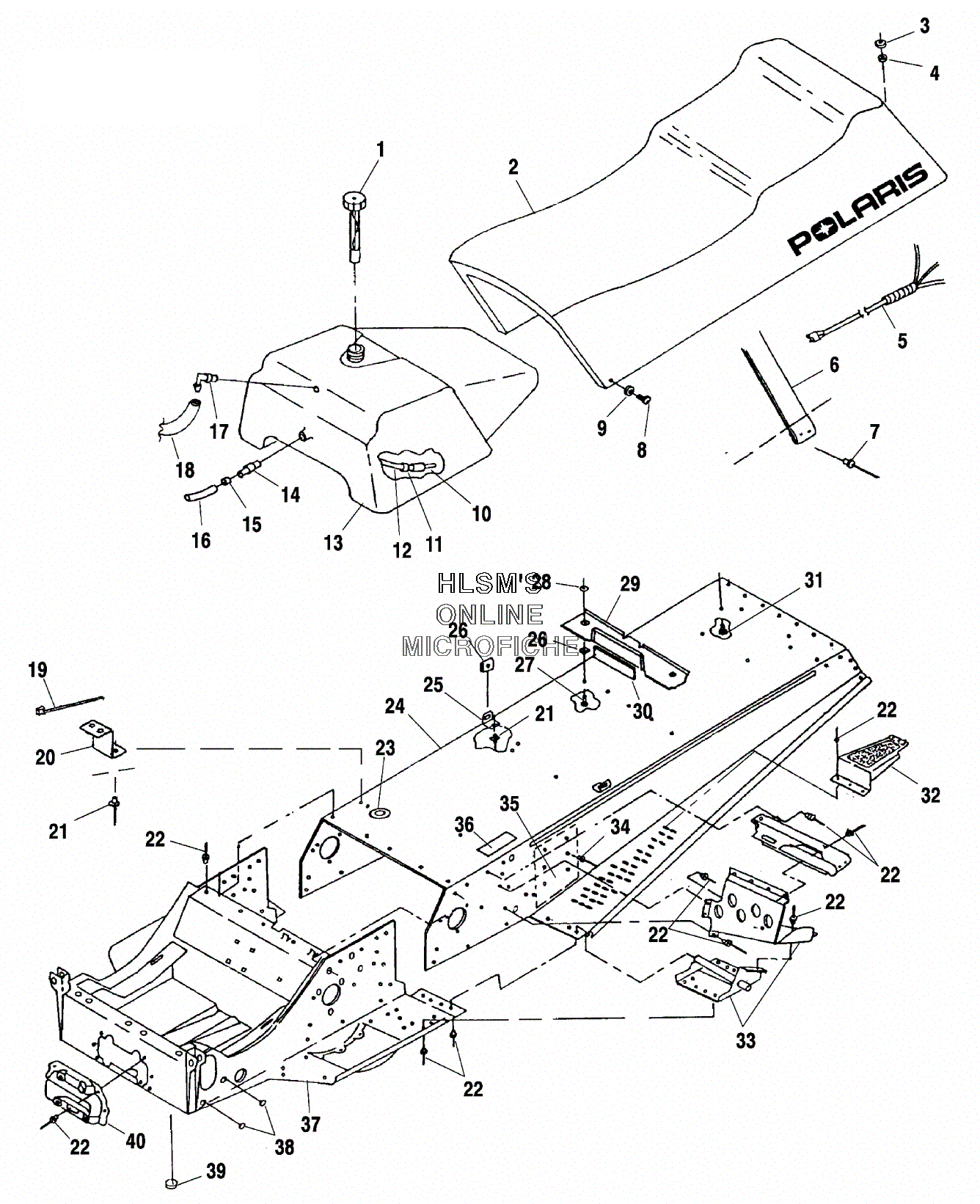

SEAT W/ TUNNEL ASSEMBLY для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска
-
№АртикулНазвание
-
12511245 CAP, GAS, W/GAUGECAP, GAS, W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22682636 SEAT CUSHION ASSY (INCL. 5)SEAT CUSHION ASSY (INCL. 5)
-
22682637 SEAT COVER ASSY, 2 UPSEAT COVER ASSY, 2 UP
-
37542324 NUTNUT
-
47558403 WASHER WROUGHTWASHER WROUGHT
-
52460237 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
67080434 BELT, SEATBELT, SEAT
-
77621472 RIVETRIVET
-
87515111 SCREWSCREW
-
97555798 WASHERWASHER
-
107052301 PICK UP FUEL, W/FILTER (105MICRN)PICK UP FUEL, W/FILTER (105MICRN)
-
117080402 RING, COMPRESSIONRING, COMPRESSION
-
128350018-600 TUBING, ETHER, ERETHNE (160CM)TUBING, ETHER, ERETHNE (160CM)
-
132520179 TANK, FUEL ASSY. (INCL. 10 14, 17, 18)TANK, FUEL ASSY. (INCL. 10 14, 17, 18)
-
147052023 FITTING OUTLETFITTING OUTLET
-
157080307 CLAMPCLAMP
-
168450040-600 FUEL LINE (1/4 ID) (600 CM.)FUEL LINE (1/4 ID) (600 CM.)
-
177052095 FITTING (90 DEG) (1/8)FITTING (90 DEG) (1/8)
-
188450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
197080138 STRAP PANDUITSTRAP PANDUIT
-
205220520-067 BRACKET, STAND (BLK)BRACKET, STAND (BLK)
-
217621453 RIVETRIVET
-
227661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
235410021 GROMMET RUBBERGROMMET RUBBER
-
241012598 TUNNEL, X LITE, 133 (INCL. 26, 34)TUNNEL, X LITE, 133 (INCL. 26, 34)
-
255222452-067 BRACKET, CONSOLE/SEAT MOUNTBRACKET, CONSOLE/SEAT MOUNT
-
267670021 SPEEDOMETER NUTSPEEDOMETER NUT
-
277512193 BOLTBOLT
-
287542122 NUT LOCKNUT LOCK
-
295222330-067 STRAP, GASTANK (BLK)STRAP, GASTANK (BLK)
-
305420126 CUSHION, TANK H.D.CUSHION, TANK H.D.
-
317512331 BOLTBOLT
-
325830007 PAD, FOOT SAFETY (LEFT)PAD, FOOT SAFETY (LEFT)
-
325830008 PAD, FOOT SAFETY (RIGHT)PAD, FOOT SAFETY (RIGHT)
-
325220893 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
325220894 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
331011830 FOOTREST ASSY (LEFT)FOOTREST ASSY (LEFT)
-
331011826 FOOTREST ASSY (RIGHT)FOOTREST ASSY (RIGHT)
-
331011792-067 SUPPORT, TRAILING.ARM (LEFT/BLK).SUPPORT, TRAILING.ARM (LEFT/BLK).
-
331011793-067 SUPPORT, TRAILING.ARM (RIGHT/BLK)SUPPORT, TRAILING.ARM (RIGHT/BLK)
-
347661837 RIVETRIVET
-
355211705-067 PAD, SUSPENSION MOUNT (FRONT) (XL)PAD, SUSPENSION MOUNT (FRONT) (XL)
-
365810502 PAD, AIR BOXPAD, AIR BOX
-
371012587-067 BULKHEAD (BLK)BULKHEAD (BLK)
-
387080416 PLUG, HOLEPLUG, HOLE
-
397080398 PLUG, HOLEPLUG, HOLE
