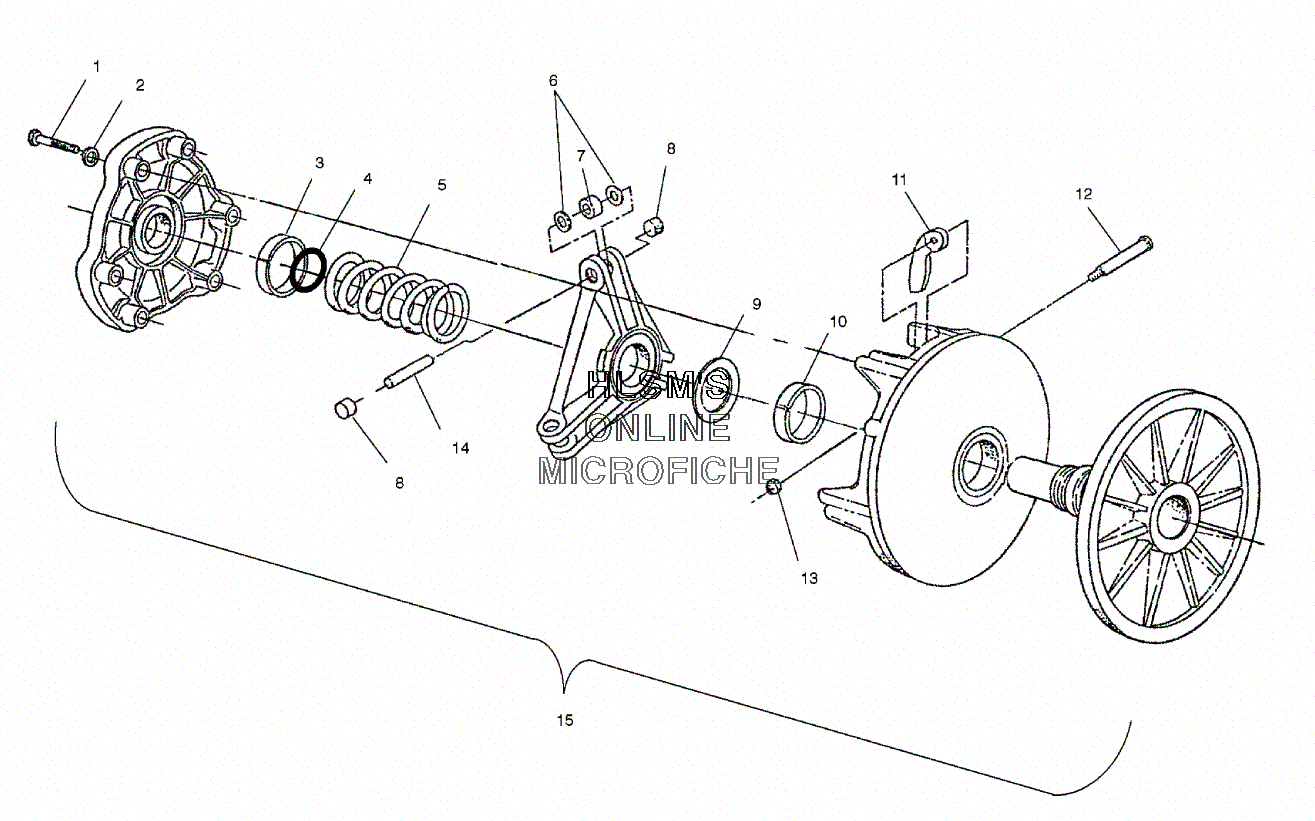

CLUTCH - DRIVE для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK WASHER
    LOCK WASHER
  • 3
    3576516 COVER, BEARING, GARMAX
    COVER, BEARING, GARMAX
  • 4
    7710417 RING, RETAINING, BOLT
    RING, RETAINING, BOLT
  • 5
    7041286 SPRING, CLUTCH (SILVER/GOLD)
    SPRING, CLUTCH (SILVER/GOLD)
  • 6
    5430945 WASHER,
    WASHER,
  • 7
    1321457 ROLLER/BUSHING ASSY
    ROLLER/BUSHING ASSY
  • 8
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 9
    5210752 SPACER (.020'')
    SPACER (.020'')
  • 9
    5210753 SPACER (.032'')
    SPACER (.032'')
  • 9
    5210754 SPACER (.050'')
    SPACER (.050'')
  • 9
    5242981 SPACER (.025'')
    SPACER (.025'')
  • 10
    3576504 BUSHING, DRIVEN
    BUSHING, DRIVEN
  • 11
    5630272 WT/BUSHING ASSY
    WT/BUSHING ASSY
  • 12
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 13
    7541906 NUT FLEX LOC
    NUT FLEX LOC
  • 14
    5020422 PIN ROLLER,
    PIN ROLLER,
  • 15
    1321596 CLUTCH, BASIC, #42(DRIVE) (INCL. ALL LESS 5, 11)
    CLUTCH, BASIC, #42(DRIVE) (INCL. ALL LESS 5, 11)
  • 15
    2200386 CLUTCH UPDATE KIT (INCL. 6, 7, 8, 12, 14)
    CLUTCH UPDATE KIT (INCL. 6, 7, 8, 12, 14)
