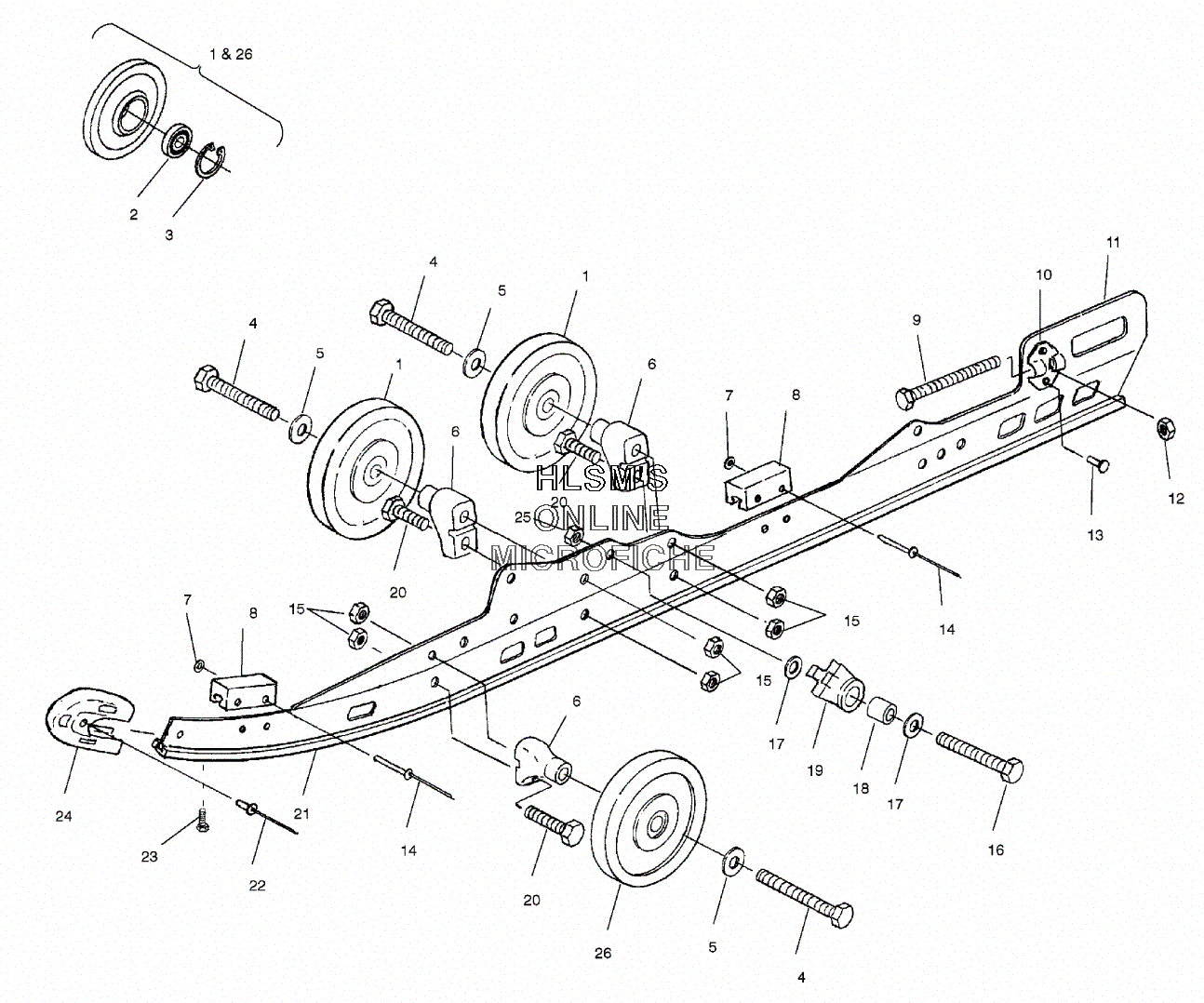

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris INDY 340 TOURING (S01LT3AS) - 2001 года выпуска`
-
№АртикулНазвание
-
11594070 WHEEL ASSY (INCL. 2 3)WHEEL ASSY (INCL. 2 3)
-
23514305 BEARING, CHAINCASE (1 PER WHEEL)BEARING, CHAINCASE (1 PER WHEEL)
-
37718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
47515346 BOLTBOLT
-
57555959 WASHER,WASHER,
-
65131314 MOUNT, WHEEL, MACHMOUNT, WHEEL, MACH
-
77670068 NUT, PUSH ONNUT, PUSH ON
-
85811282 BUMPER, JOUNCE, XLBUMPER, JOUNCE, XL
-
97517227 SCREW,SCREW,
-
105241628 BRACKET, IDLER, ADJUSTBRACKET, IDLER, ADJUST
-
111541175 RAIL ASSY (LEFT) (133''XTRA LITE) (INCL. 7, 8, 10, 13, 14, 22, 24)RAIL ASSY (LEFT) (133''XTRA LITE) (INCL. 7, 8, 10, 13, 14, 22, 24)
-
111541176 RAIL ASSY (RIGHT) (133''XTRA LITE) (INCL. 7, 8, 10, 13, 14, 22, 24)RAIL ASSY (RIGHT) (133''XTRA LITE) (INCL. 7, 8, 10, 13, 14, 22, 24)
-
127542451 NUT, NYLOCNUT, NYLOC
-
137621512 RIVETRIVET
-
147661621 PIN HOOD HINGEPIN HOOD HINGE
-
157542324 NUTNUT
-
167515433 BOLTBOLT
-
177555893 WASHERWASHER
-
185010332 BUSHINGBUSHING
-
195431924 BLOCK, SPRING SLIDERBLOCK, SPRING SLIDER
-
207515317 BOLTBOLT
-
215521450 HI-FAX, XL, SERVICE,BASICHI-FAX, XL, SERVICE,BASIC
-
227621435 RIVETRIVET
-
237515199 SCREWSCREW
-
245432364 CAP, RAILTIP (XL)CAP, RAILTIP (XL)
-
257542439 NUT, NYLOKNUT, NYLOK
-
261590275-256 WHEEL SCROLLED ASSY (5.35) (C RED) (INCL. 2 3)WHEEL SCROLLED ASSY (5.35) (C RED) (INCL. 2 3)
