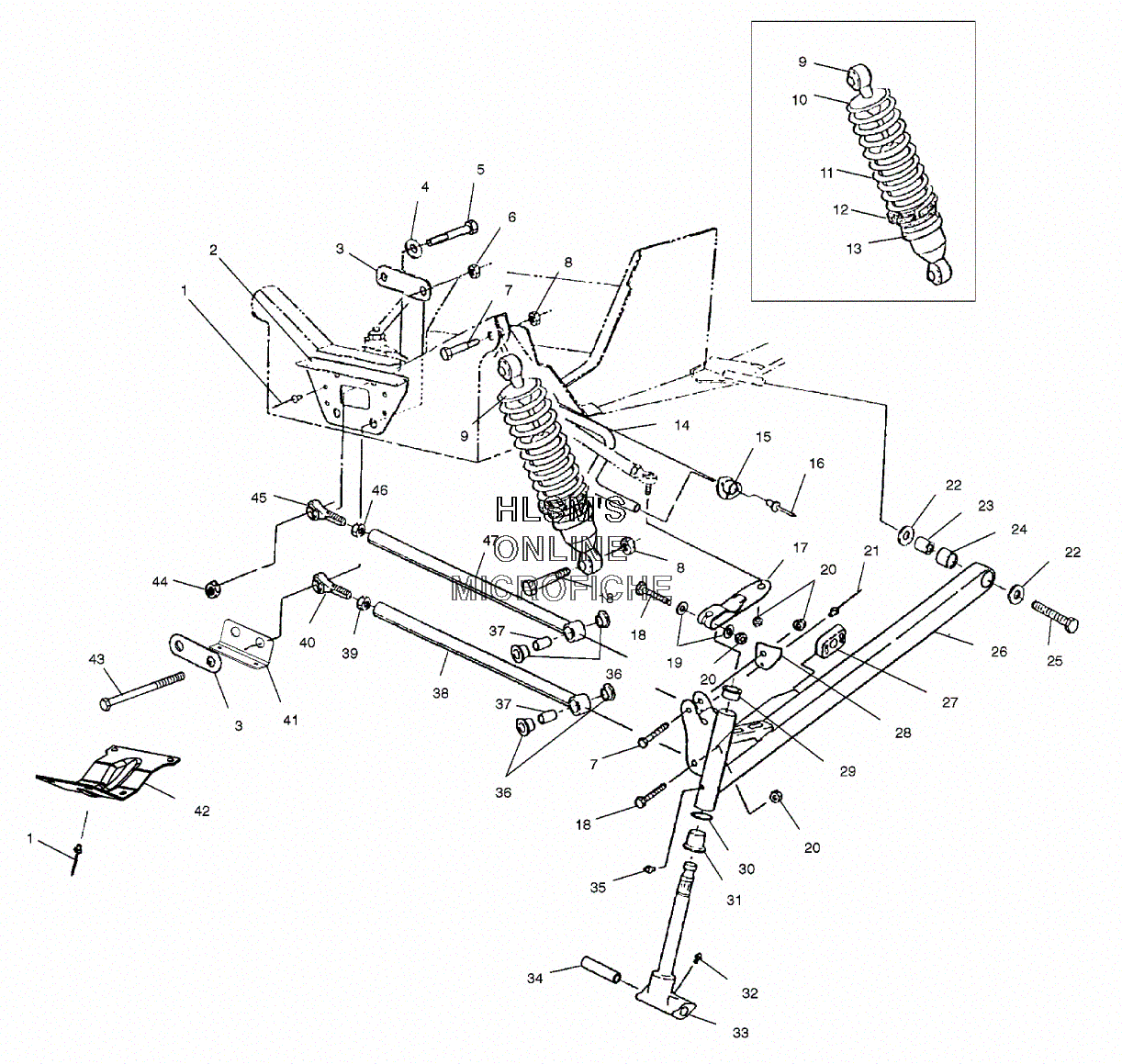

SUSPENSION - FRONT для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
21012575-067 BRACE, BULKHEAD (FRONT/BLACK)BRACE, BULKHEAD (FRONT/BLACK)
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
47558702 WASHER THRUSTWASHER THRUST
-
57512551 BOLTBOLT
-
67542703 NUT FLEXNUT FLEX
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041795 SHOCK, GAS, IFS, SELECTSHOCK, GAS, IFS, SELECT
-
105630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
117041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
145243438-067 TORSION, BAR, 5/8, X-12, CRCTORSION, BAR, 5/8, X-12, CRC
-
155432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621477 RIVET,RIVET,
-
175241660-067 ARM, STRG (BLACK/LEFT)ARM, STRG (BLACK/LEFT)
-
175241661-067 ARM, STRG (BLACK/RIGHT)ARM, STRG (BLACK/RIGHT)
-
187517583 SCREWSCREW
-
197555832 WASHERWASHER
-
207542403 NUT LOCKNUT LOCK
-
217661643 RIVET (3/16-.214-.420)RIVET (3/16-.214-.420)
-
227555721 WASHERWASHER
-
235010310 TUBE, BUSHINGTUBE, BUSHING
-
245410872 PIVOT, TRLG.ARM, RUBBERPIVOT, TRLG.ARM, RUBBER
-
257512557 BOLTBOLT
-
261822517 TRAILING ARM KIT (INCL. 23, 24) (LEFT)TRAILING ARM KIT (INCL. 23, 24) (LEFT)
-
261822518 TRAILING ARM KIT (INCL. 23, 24) (RIGHT)TRAILING ARM KIT (INCL. 23, 24) (RIGHT)
-
275432561 SLIDE, SWAYBAR, 5/8SLIDE, SWAYBAR, 5/8
-
285241777-067 STOP, STRG (BLACK/LEFT)STOP, STRG (BLACK/LEFT)
-
285241778-067 STOP, STRG (BLACK/RIGHT)STOP, STRG (BLACK/RIGHT)
-
293573909 BUSHING, FLANGEBUSHING, FLANGE
-
307556509 WASHER SPECIALWASHER SPECIAL
-
313574208 BUSHING, SPINDLE HSGBUSHING, SPINDLE HSG
-
327080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
336230102-067 SHAFT, SPINDLE, TRLG (BLACK)SHAFT, SPINDLE, TRLG (BLACK)
-
345010158 BUSHING, PIVOTBUSHING, PIVOT
-
357080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
365431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
375010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
381820673-067 RADIUS ROD (BLACK/LOWER)RADIUS ROD (BLACK/LOWER)
-
397542711 NUT-JAMNUT-JAM
-
407061027 ROD END-RADIUS (RIGHT/LOWER)ROD END-RADIUS (RIGHT/LOWER)
-
415242578 BRACKET, RADIUS ROD BOTTOM)BRACKET, RADIUS ROD BOTTOM)
-
437512684 BOLTBOLT
-
447542503 NUT, LOCK,NUT, LOCK,
-
457061010 ROD END-RADIUS, 7/16'' (RIGHT)ROD END-RADIUS, 7/16'' (RIGHT)
-
467542520 NUT JAMNUT JAM
-
471820672-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
