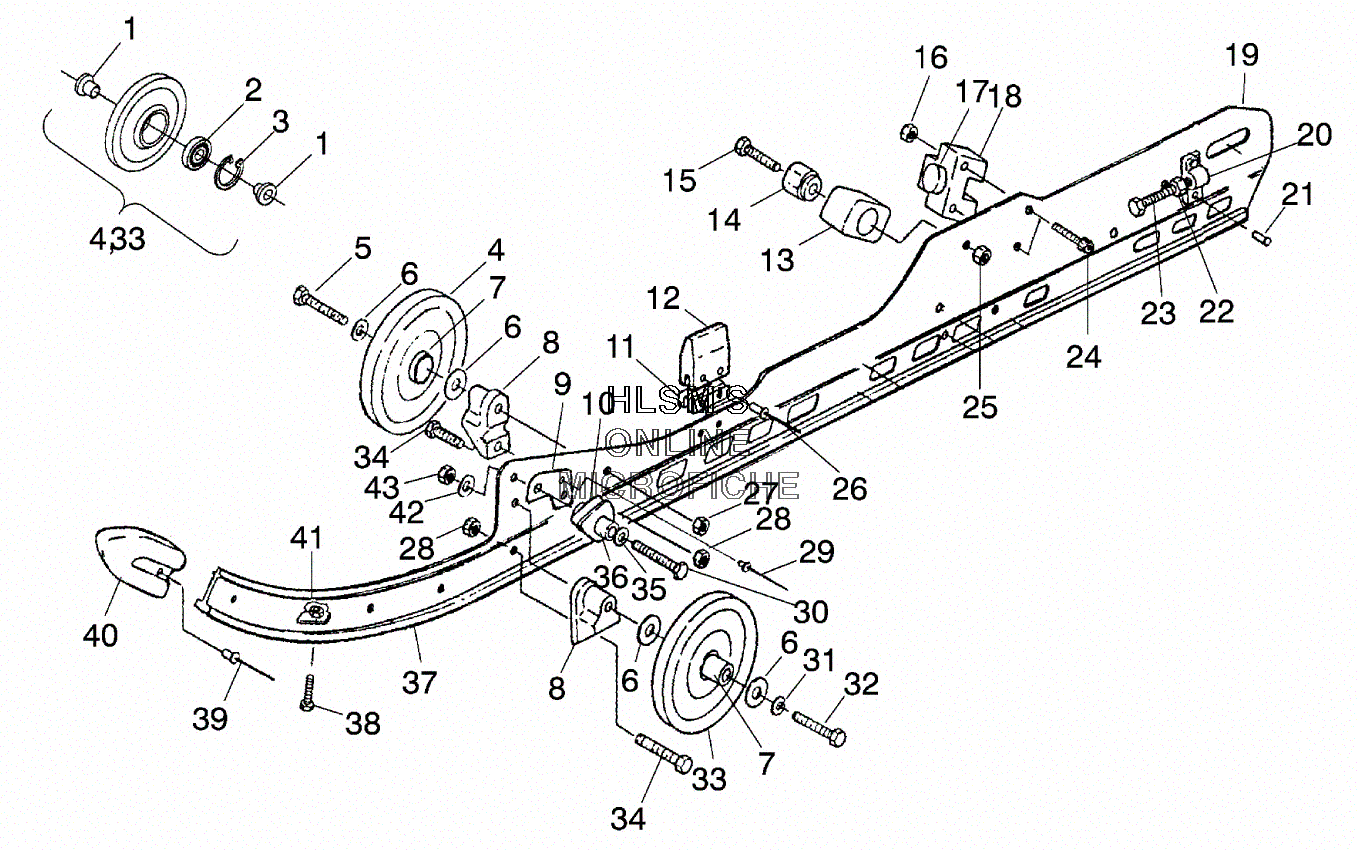

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска`
-
№АртикулНазвание
-
15431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
23514305 BEARING, CHAINCASE (1 PER WHEEL)BEARING, CHAINCASE (1 PER WHEEL)
-
37718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
41543018 WHEEL, IDLER (INCL. 1-3)WHEEL, IDLER (INCL. 1-3)
-
57512538 BOLTBOLT
-
67555852 WASHER, FLATWASHER, FLAT
-
75333116 SPACER, WHEELSPACER, WHEEL
-
85630399 SPACERSPACER
-
95211786 PLATE, RAIL SUPPORTPLATE, RAIL SUPPORT
-
105431924 BLOCK, SPRING SLIDERBLOCK, SPRING SLIDER
-
115240946 BRACKET, BUMPER SUPPORTBRACKET, BUMPER SUPPORT
-
125811065 BUMPER, JOUNCE, RAIL, LTBUMPER, JOUNCE, RAIL, LT
-
135410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
145131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
157515545 BOLTBOLT
-
167542103 NUT, LOCKNUT, LOCK
-
175411041 BUMPER, PIVOT ARM (REAR)BUMPER, PIVOT ARM (REAR)
-
185131111 BLOCK, PIVOT ARM STOP (REAR)BLOCK, PIVOT ARM STOP (REAR)
-
191541438 RAIL, ASSY. (INCL. 11, 12, 20, 21, 26, 39, 40) (LEFT)RAIL, ASSY. (INCL. 11, 12, 20, 21, 26, 39, 40) (LEFT)
-
191541439 RAIL, ASSY. (INCL.11, 12, 20, 21, 26, 39, 40) (RIGHT)RAIL, ASSY. (INCL.11, 12, 20, 21, 26, 39, 40) (RIGHT)
-
205130530 BLOCK, IDLER BOLT ADJUST.BLOCK, IDLER BOLT ADJUST.
-
217621501 RIVETRIVET
-
225020943 NUT, TENSIONER ADJUSTNUT, TENSIONER ADJUST
-
237515455 BOLT, ADJUSTERBOLT, ADJUSTER
-
247515156 SCREWSCREW
-
257542411 NUT LOCKNUT LOCK
-
267621488 RIVETRIVET
-
277542525 NUT, NYLOCKNUT, NYLOCK
-
287542439 NUT, NYLOKNUT, NYLOK
-
297621514 RIVETRIVET
-
307515538 BOLTBOLT
-
317556179 WASHER-SPRING, CONWASHER-SPRING, CON
-
327512508 BOLTBOLT
-
331594082-256 WHEEL, BOGIE, SCRL (C. RED)WHEEL, BOGIE, SCRL (C. RED)
-
347512404 BOLTBOLT
-
357555976 WASHERWASHER
-
365010332 BUSHINGBUSHING
-
375521452 SLIDER, WHI.SLIDER, WHI.
-
387515175 BOLTBOLT
-
397621435 RIVETRIVET
-
405433005 COVER, RAIL TIPCOVER, RAIL TIP
-
417542122 NUT-LOCKNUT-LOCK
-
427555743 WASHERWASHER
-
437542403 NUT LOCKNUT LOCK
