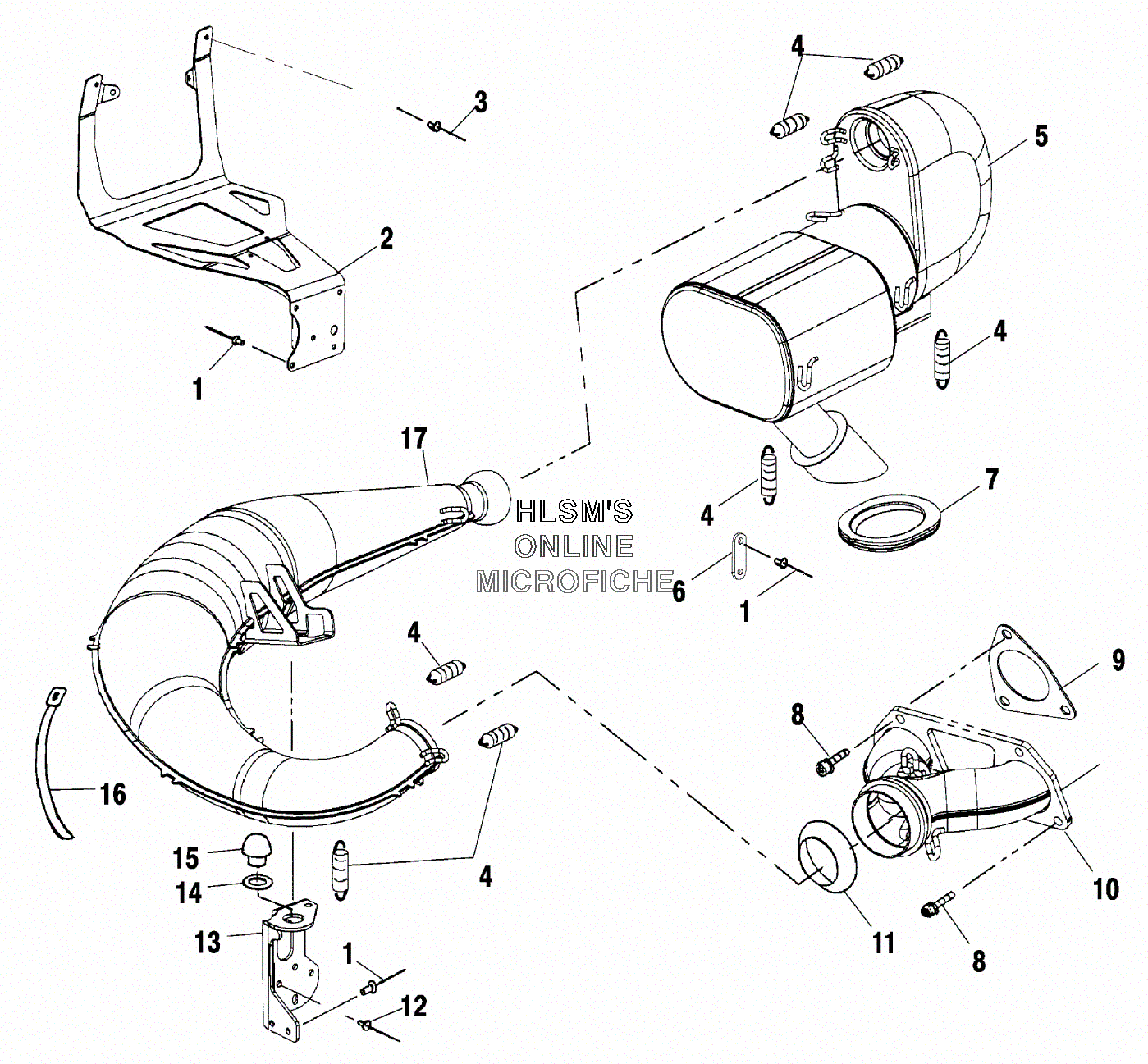

EXHAUST SYSTEM для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661643 RIVET (3/16-.214-.420)
    RIVET (3/16-.214-.420)
  • 2
    1260979-029 BRACKET, CHASSIS/RESON, TRG (BLACK)
    BRACKET, CHASSIS/RESON, TRG (BLACK)
  • 3
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 4
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    1261019-029 RESONATOR (BLACK)
    RESONATOR (BLACK)
  • 6
    5243186-067 HOOD-SPRING (BLACK)
    HOOD-SPRING (BLACK)
  • 7
    5411494 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 8
    7517322 SCREW
    SCREW
  • 9
    5811838 GASKET-EXHAUST 440 BASE 500/600
    GASKET-EXHAUST 440 BASE 500/600
  • 10
    1261018-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 11
    3610046 SEAL, EXHUAST SOCKET
    SEAL, EXHUAST SOCKET
  • 12
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 13
    5244082 BRACKET, MUFFLER Z (FRONT)
    BRACKET, MUFFLER Z (FRONT)
  • 14
    7556004 WASHER
    WASHER
  • 15
    5411576 DAMPENER, VIBRATION, W/RIBS
    DAMPENER, VIBRATION, W/RIBS
  • 16
    7080811 CLAMP-WORM DRIVE (.44 X 6.5)
    CLAMP-WORM DRIVE (.44 X 6.5)
  • 16
    7080812 CLAMP, WORM DRIVE (.44 X 3.75)
    CLAMP, WORM DRIVE (.44 X 3.75)
  • 16
    7080813 CLAMP, WORM DRIVE (.44 X 4.25)
    CLAMP, WORM DRIVE (.44 X 4.25)
  • 17
    1261020 TUNED PIPE, ASSY. (INCL. 16)
    TUNED PIPE, ASSY. (INCL. 16)
  • 17
    5244303 COVER, TUNED PIPE (TOP)
    COVER, TUNED PIPE (TOP)
  • 17
    5244304 COVER, TUNED PIPE (BOTTOM)
    COVER, TUNED PIPE (BOTTOM)
  • 17
    5830198 MATTE, SOUND
    MATTE, SOUND
