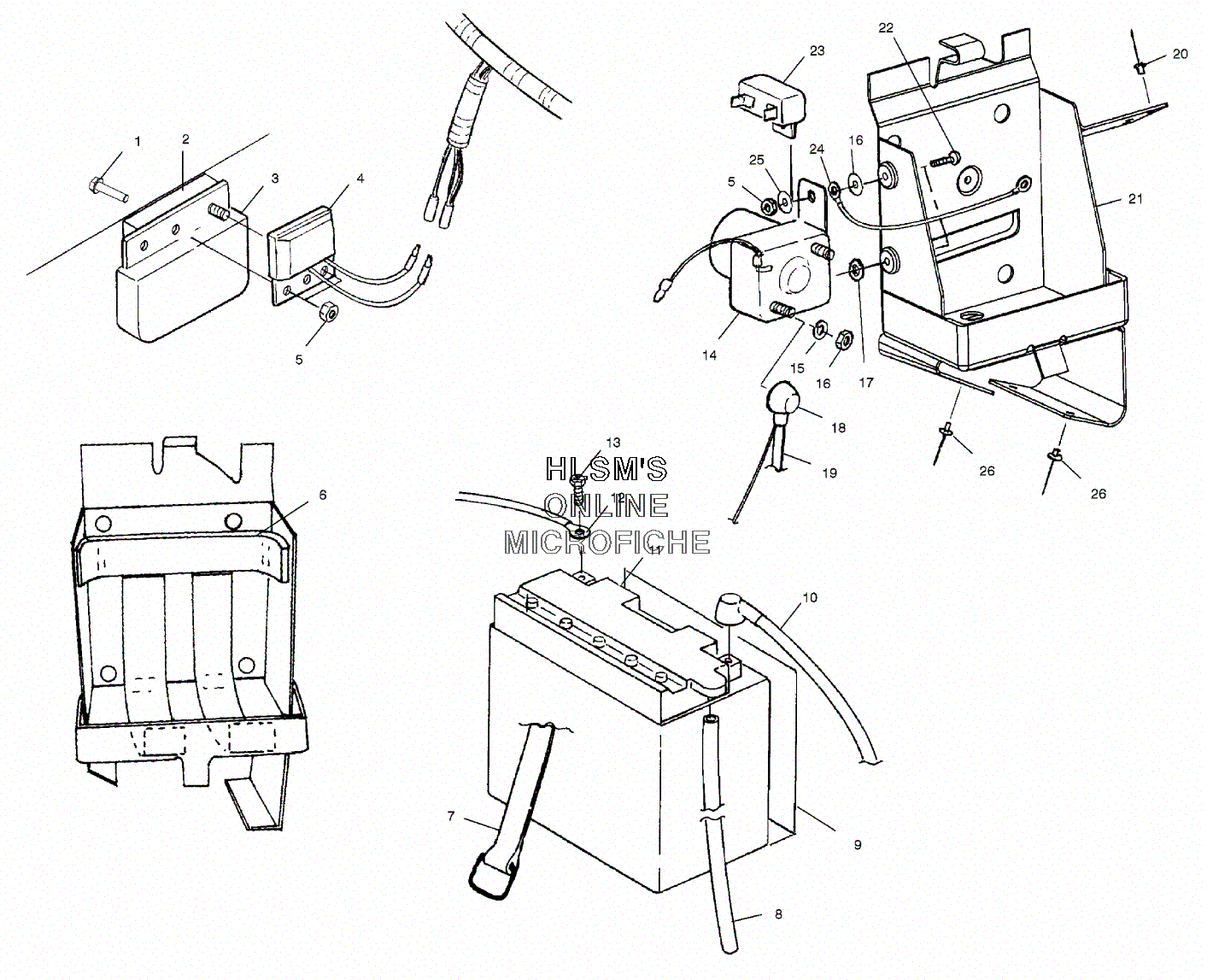

BATTERY BOX для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    5211573 SPACER, REGULATOR
    SPACER, REGULATOR
  • 3
    4060123 REGULATOR (14.3VAC) LR-7
    REGULATOR (14.3VAC) LR-7
  • 4
    4010196 REGULATOR, RECTIFIER, SNO, LR26
    REGULATOR, RECTIFIER, SNO, LR26
  • 5
    7541925 NUT
    NUT
  • 6
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 7
    2450020 STRAP ASSY., BATTERY HOLDER
    STRAP ASSY., BATTERY HOLDER
  • 8
    5433681 TUBE, BATTERY VENT, 400 MM
    TUBE, BATTERY VENT, 400 MM
  • 9
    8360018 TAPE, FOIL W/BACK. 3MIL 6''W.
    TAPE, FOIL W/BACK. 3MIL 6''W.
  • 10
    2460393 CABLE ASSY., SOLENOID
    CABLE ASSY., SOLENOID
  • 11
    4140006 BATTERY
    BATTERY
  • 12
    4010114 CABLE, 11'' BATTERY (BLACK)
    CABLE, 11'' BATTERY (BLACK)
  • 13
    2200361 BOLT, BATTERY KIT (SHORT)
    BOLT, BATTERY KIT (SHORT)
  • 17
    7571602 WASHER
    WASHER
  • 18
    5410346 INSUL.CABLE SOL.
    INSUL.CABLE SOL.
  • 19
    4010190 CABLE, 25'' (RED)
    CABLE, 25'' (RED)
  • 20
    7621418 POP RIVET
    POP RIVET
  • 21
    1012799-067 BATTERY BOX (BLACK)
    BATTERY BOX (BLACK)
  • 22
    7512027 SCREW
    SCREW
  • 23
    2434008 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 24
    4010108 WIRE, JUMPER, SOL/BATT, 8.5''
    WIRE, JUMPER, SOL/BATT, 8.5''
  • 25
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 26
    7621467 RIVET, BLIND
    RIVET, BLIND
