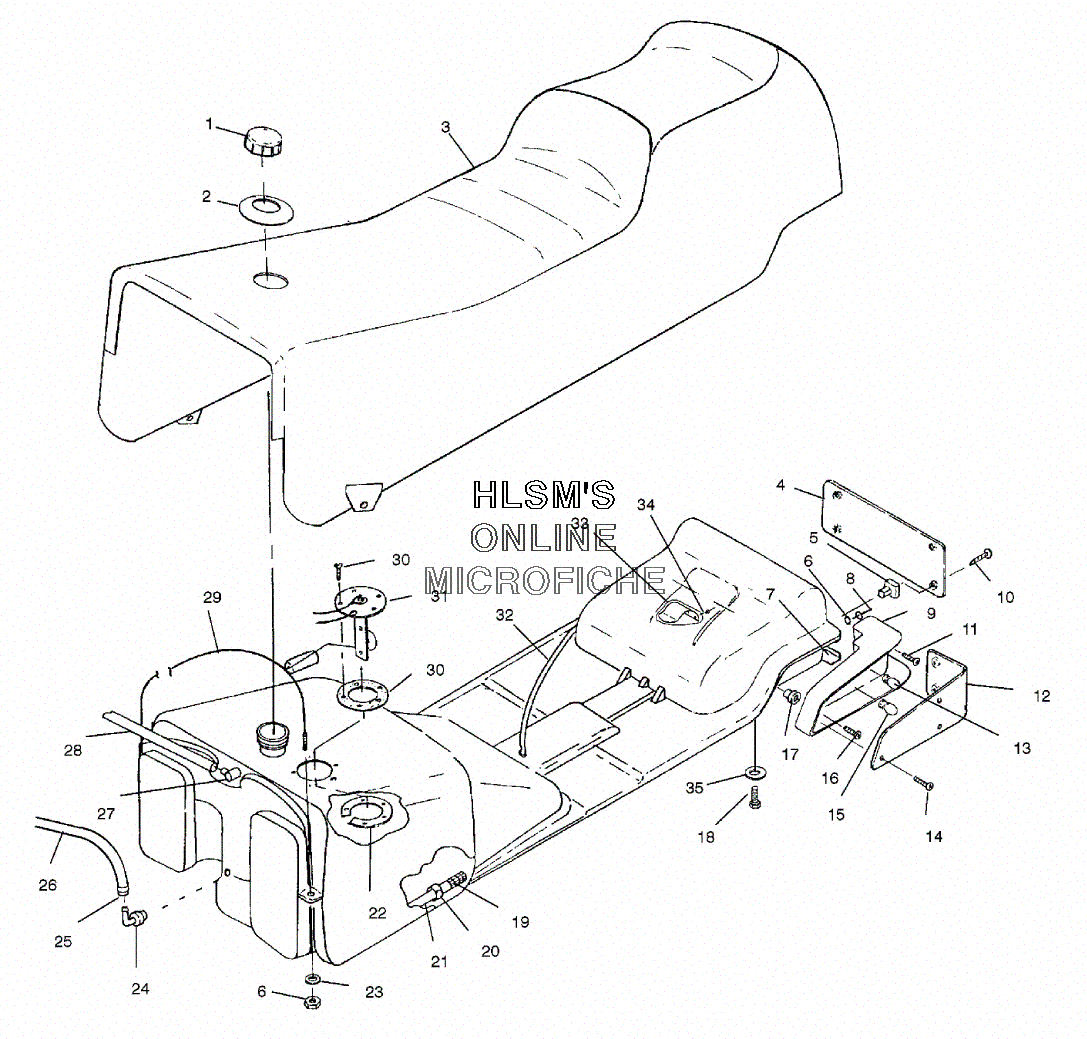

SEAT W/ GAS TANK ASSEMBLY для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска
-
№АртикулНазвание
-
12511226 CAP, FUELTANK, W/GASKETCAP, FUELTANK, W/GASKET
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
32682582 ASSY., SEAT CUSHION, TOUR (INCL. 3, 4-17, 19-21, 24, 27)ASSY., SEAT CUSHION, TOUR (INCL. 3, 4-17, 19-21, 24, 27)
-
32682580 ASSY., SEAT COVER, TOURASSY., SEAT COVER, TOUR
-
45432008 REFLECTOR, CTR, SEATREFLECTOR, CTR, SEAT
-
57546908 NUTNUT
-
67541925 NUTNUT
-
71012838-067 ASSY., BRACKET, SEAT MOUNT W/CLIP (BLACK)ASSY., BRACKET, SEAT MOUNT W/CLIP (BLACK)
-
87621433 RIVETRIVET
-
95432002 HOUSING, LENS (LEFT)HOUSING, LENS (LEFT)
-
95432003 HOUSING, LENS (RIGHT)HOUSING, LENS (RIGHT)
-
107511840 SCREWSCREW
-
117522004 SCREW, SELF-TAPSCREW, SELF-TAP
-
125432031 LENS (LEFT)LENS (LEFT)
-
125432032 LENS (RIGHT)LENS (RIGHT)
-
134030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
147512054 SCREWSCREW
-
154032084 BULB TAILLIGHTBULB TAILLIGHT
-
167511954 SCREWSCREW
-
177541901 NUT, WELLNUT, WELL
-
187512242 SCREWSCREW
-
197052301 PICK-UP-FUEL, W/FILTER, 105MICRNPICK-UP-FUEL, W/FILTER, 105MICRN
-
207080402 RING, COMPRESSIONRING, COMPRESSION
-
218350019-1525 TUBETUBE
-
225244067 FLANGE, FUEL TANK MOUNTINGFLANGE, FUEL TANK MOUNTING
-
237555746 BURR, RIVETBURR, RIVET
-
247052143 FITTING, OUT, 90 DEG, , DOUBLEFITTING, OUT, 90 DEG, , DOUBLE
-
257080307 CLAMPCLAMP
-
268350018-600 TUBING-ETHER ERETHNE, 160CM, SVCTUBING-ETHER ERETHNE, 160CM, SVC
-
277052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
288450061-600 FUELLINE, 3MMX7MMFUELLINE, 3MMX7MM
-
297080559 CABLE, TANK, RETENTIONCABLE, TANK, RETENTION
-
302410012 HDWE. PKG, SEND. UNITHDWE. PKG, SEND. UNIT
-
313280227 SENDER, FUEL LEVEL, W/GASKETSENDER, FUEL LEVEL, W/GASKET
-
322460524 HARNESS TAILLIGHT (TOUR)HARNESS TAILLIGHT (TOUR)
-
335243593 RETAINER, CLIP TOOL POUCH, TOURRETAINER, CLIP TOOL POUCH, TOUR
-
347621467 RIVET, BLINDRIVET, BLIND
-
357558302 WASHER, WROUGHTWASHER, WROUGHT
