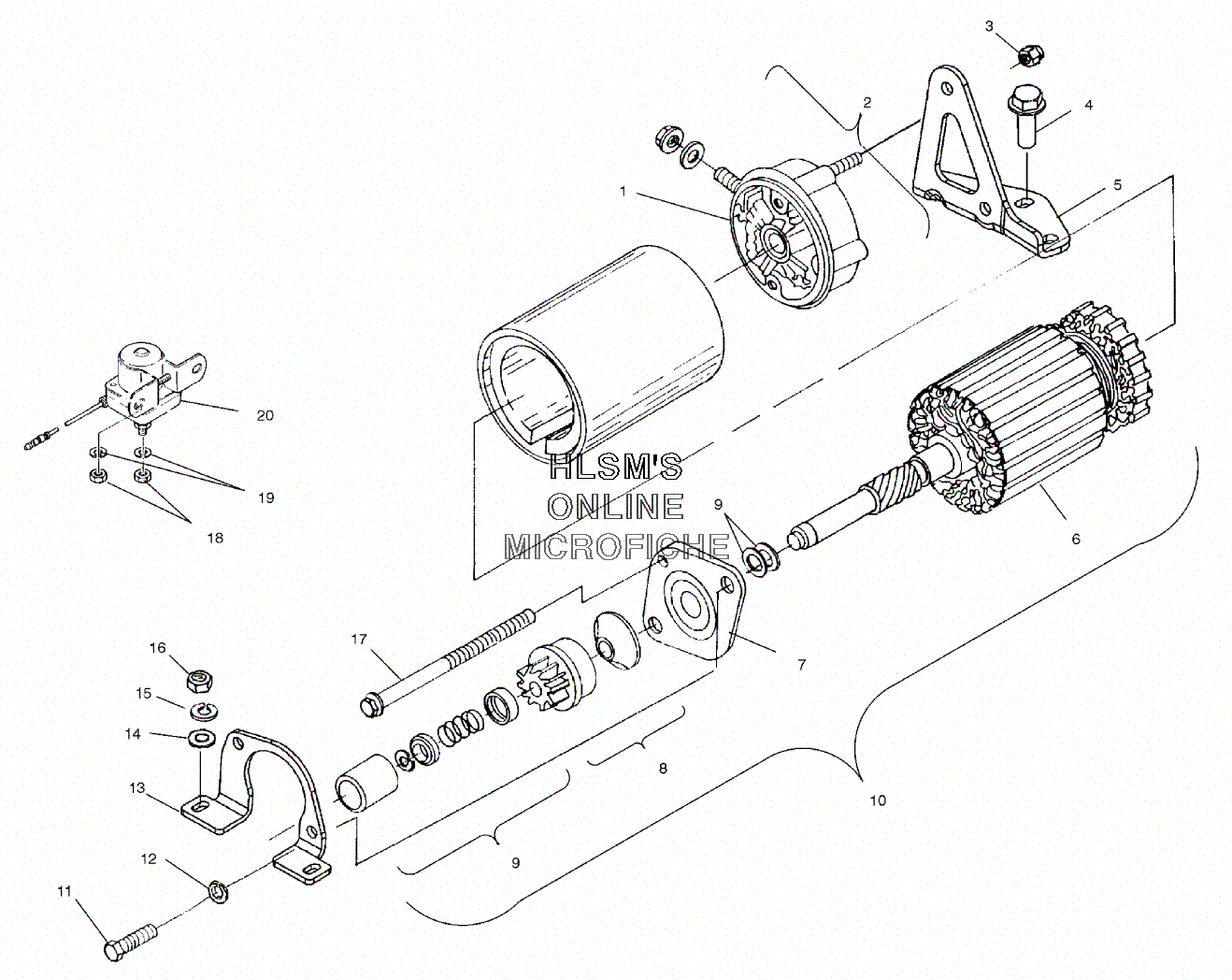

STARTING MOTOR для Polaris 600 CLASSIC TOURING (S01ST6ES) - 2001 года выпуска`
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
22200758 COMMUTATOR CAP ASSY.COMMUTATOR CAP ASSY.
-
37542153 NUTNUT
-
47516823 SCREWSCREW
-
55244250 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
62200756 ARMATURE ASSY.ARMATURE ASSY.
-
72200757 DRIVECAP ASSY.DRIVECAP ASSY.
-
82200754 DRIVE ASSY.DRIVE ASSY.
-
92200755 DRIVE HDWE. KITDRIVE HDWE. KIT
-
104170006 MOTOR, STARTER (DOMESTIC)MOTOR, STARTER (DOMESTIC)
-
117512492 SCREWSCREW
-
127552603 WASHERWASHER
-
135242498 BRACKET, STARTER (FRONT)BRACKET, STARTER (FRONT)
-
147555954 WASHERWASHER
-
157552902 WASHERWASHER
-
167547144 NUT, NYLOCK M8X1.25NUT, NYLOCK M8X1.25
-
172200753 SCREW KITSCREW KIT
-
183082939 NUTNUT
-
193080077 WASHER SPRINGWASHER SPRING
-
203083211 SWITCH, MAGNETICSWITCH, MAGNETIC
