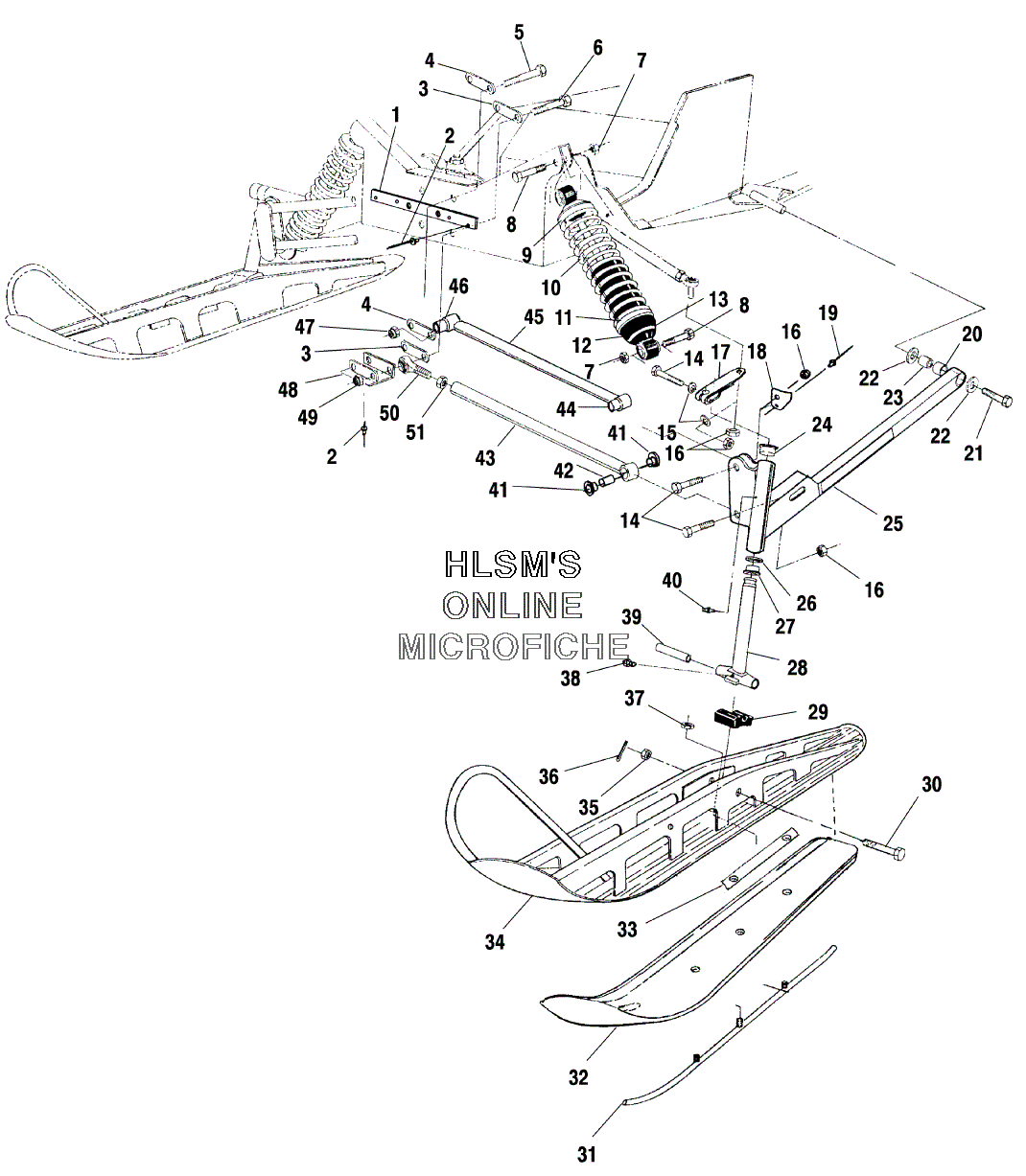

SUSPENSION - FRONT W/ SKI для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
15240349-067 BRACE, BULKHEADBRACE, BULKHEAD
-
27661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67512678 BOLTBOLT
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515415 BOLTBOLT
-
95630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
115431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041543 SHOCK, GAS IFSSHOCK, GAS IFS
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
167542403 NUT, LOCKNUT, LOCK
-
175220326-067 ARM, STEERINGARM, STEERING
-
185241569-067 STOP, STEERING (BLACK/LEFT)STOP, STEERING (BLACK/LEFT)
-
185241570-067 STOP, STEERING (BLACK/RIGHT)STOP, STEERING (BLACK/RIGHT)
-
197661643 RIVETRIVET
-
205410872 PIVOT, TRAILING ARM RUBBERPIVOT, TRAILING ARM RUBBER
-
217512557 BOLTBOLT
-
227555721 WASHERWASHER
-
235010310 TUBE, BUSHINGTUBE, BUSHING
-
243573909 BUSHING, FLANGEBUSHING, FLANGE
-
251822485 ARM, TRAILING (LEFT) (INCL. 20, 23)ARM, TRAILING (LEFT) (INCL. 20, 23)
-
251822486 ARM, TRAILING (RIGHT) (INCL. 20, 23)ARM, TRAILING (RIGHT) (INCL. 20, 23)
-
267556509 WASHER, SPECIALWASHER, SPECIAL
-
273574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
286230102-067 SHAFT, SPINDLE TRAILING (BLACK)SHAFT, SPINDLE TRAILING (BLACK)
-
295411083 STOP, RUBBERSTOP, RUBBER
-
307515462 BOLTBOLT
-
312871288 60 DEG, 4'' CARBIDE60 DEG, 4'' CARBIDE
-
325432153-070 SKIN, SKI WIDE (BLACK)SKIN, SKI WIDE (BLACK)
-
335433795 SHIM, SKI SKINSHIM, SKI SKIN
-
341820430-067 SKI, WELDSKI, WELD
-
357542438 NUT, CASTLENUT, CASTLE
-
367661209 PIN, COTTERPIN, COTTER
-
377542324 NUTNUT
-
387080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
395010158 BUSHING, PIVOTBUSHING, PIVOT
-
407080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
415010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
425431486 BUSH, RADIUS ROD PIVOT (OUTTER)BUSH, RADIUS ROD PIVOT (OUTTER)
-
431822444-067 ROD, RADIUS (BLACK/LOWER)ROD, RADIUS (BLACK/LOWER)
-
445411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
-
451822420 ROD, RADIUS FIXED (UPPER) (INCL. 44, 46)ROD, RADIUS FIXED (UPPER) (INCL. 44, 46)
-
465411095 BUSHING, PIVOT (7/16)BUSHING, PIVOT (7/16)
-
477542503 NUT, LOCKNUT, LOCK
-
485242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
497542703 NUT, FLEXNUT, FLEX
-
507061011 ROD END (1/2)ROD END (1/2)
-
517542711 NUT, JAMNUT, JAM
