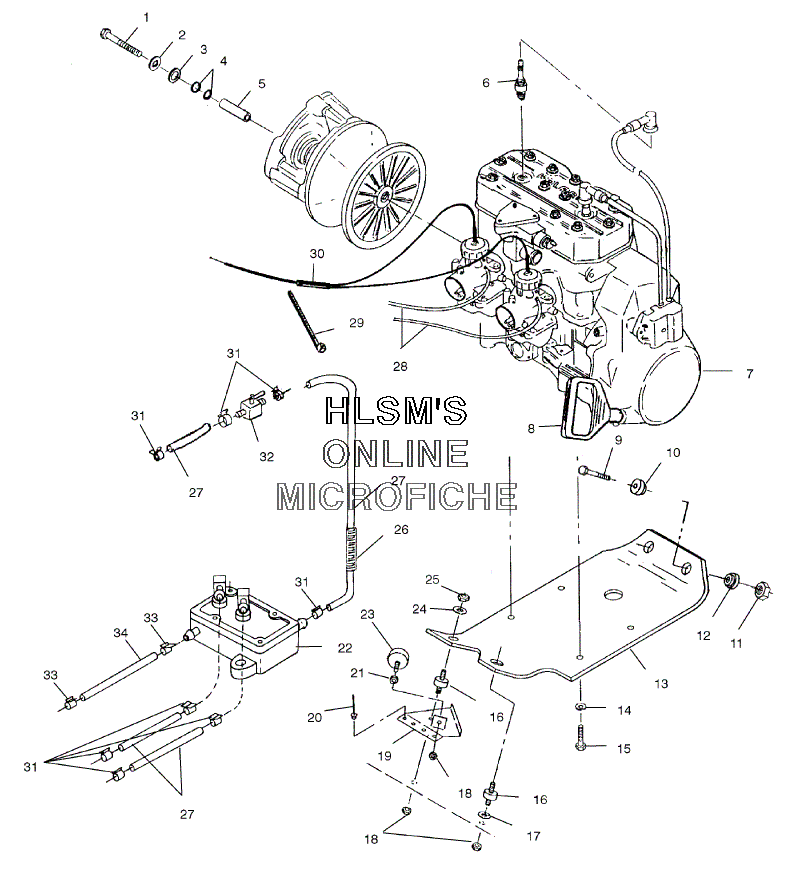

ENGINE MOUNTING W/ SHORT BLOCK для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512565 BOLT
    BOLT
  • 2
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 3
    5010278 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 4
    5410507 O-RING
    O-RING
  • 5
    5020513 SPACER, CLUTCH BOLT
    SPACER, CLUTCH BOLT
  • 6
    3070166 SPARKPLUG (RN3C)
    SPARKPLUG (RN3C)
  • 7
    3086509 ENGINE, SHORT BLOCK
    ENGINE, SHORT BLOCK
  • 8
    5431499 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 9
    7512530 SCREW
    SCREW
  • 10
    5411685 MOUNT, ENGINE RUBBER (TOP)
    MOUNT, ENGINE RUBBER (TOP)
  • 11
    7542522 NUT, FLANGE
    NUT, FLANGE
  • 12
    5411686 MOUNT, ENGINE RUBBER (BOTTOM)
    MOUNT, ENGINE RUBBER (BOTTOM)
  • 13
    5242496 PLATE, MOTOR MOUNT
    PLATE, MOTOR MOUNT
  • 14
    7553101 WASHER, LOCK
    WASHER, LOCK
  • 15
    7512539 BOLT
    BOLT
  • 16
    3110061 MOUNT, ENGINE
    MOUNT, ENGINE
  • 17
    7555915 WASHER, FLAT
    WASHER, FLAT
  • 18
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 19
    1012048-067 LIMITER, TORQUE (BLACK)
    LIMITER, TORQUE (BLACK)
  • 20
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 21
    7542414 NUT, HEX
    NUT, HEX
  • 23
    3110063 STOP, TORQUE COARSE (1.94 DIA)
    STOP, TORQUE COARSE (1.94 DIA)
  • 24
    7555893 WASHER
    WASHER
  • 25
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 26
    8360052-15 TUBING
    TUBING
  • 27
    8350018-600 TUBING, ETHER ERETHNE (160CM) (OPT)
    TUBING, ETHER ERETHNE (160CM) (OPT)
  • 28
    8360009-600 FUEL LINE (1/8 ID 600 CM.) (OPT)
    FUEL LINE (1/8 ID 600 CM.) (OPT)
  • 29
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 30
    7080554 CABLE, THROTTLE W/OIL
    CABLE, THROTTLE W/OIL
  • 31
    7080307 CLAMP
    CLAMP
  • 32
    7052060 VALVE, FUEL SHUT-OFF
    VALVE, FUEL SHUT-OFF
  • 33
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 34
    8450040-600 FUEL LINE (1/4 ID 600 CM.) (OPT)
    FUEL LINE (1/4 ID 600 CM.) (OPT)
