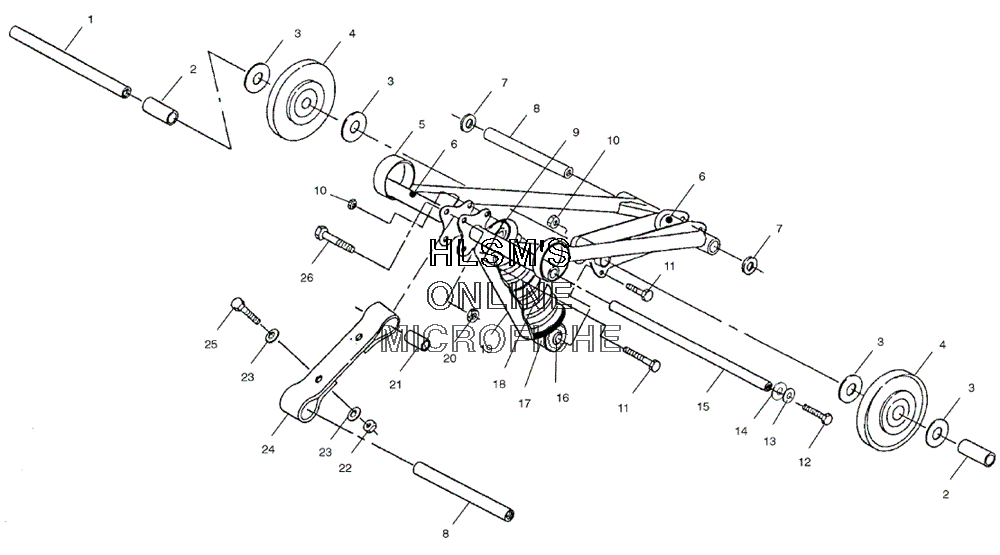

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
15020720 SHAFT, SPANNERSHAFT, SPANNER
-
25333012 TUBE, SPACER (OUTER)TUBE, SPACER (OUTER)
-
37556301 MACHINERY, BUSHINGMACHINERY, BUSHING
-
41543018 WHEEL, IDLERWHEEL, IDLER
-
51541044-067 ARM, TORQUE (BLACK/FRONT)ARM, TORQUE (BLACK/FRONT)
-
67080424 FITTING, LUBEFITTING, LUBE
-
77555823 WASHERWASHER
-
85132239 SHAFT, PIVOTSHAFT, PIVOT
-
95630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107542411 NUT, LOCKNUT, LOCK
-
117515433 BOLTBOLT
-
127517247 SCREWSCREW
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147555893 WASHER, FLATWASHER, FLAT
-
155020909 SHAFTSHAFT
-
167041742 SHOCK, SUSPENSION (CENTER)SHOCK, SUSPENSION (CENTER)
-
175241276-067 RETAINER, SPRING GAB PLATEDRETAINER, SPRING GAB PLATED
-
187041712-067 SPRING, TRACK (BLACK/FRONT)SPRING, TRACK (BLACK/FRONT)
-
195430671 SHIELD, SPRINGSHIELD, SPRING
-
207542439 NUT, NYLOKNUT, NYLOK
-
215010212 BUSHING, SUSPENSIONBUSHING, SUSPENSION
-
227542344 NUT, NYLOCNUT, NYLOC
-
237555716 WASHERWASHER
-
245410397 STRAP, LIMITERSTRAP, LIMITER
-
257517313 SCREWSCREW
-
267515438 BOLTBOLT
