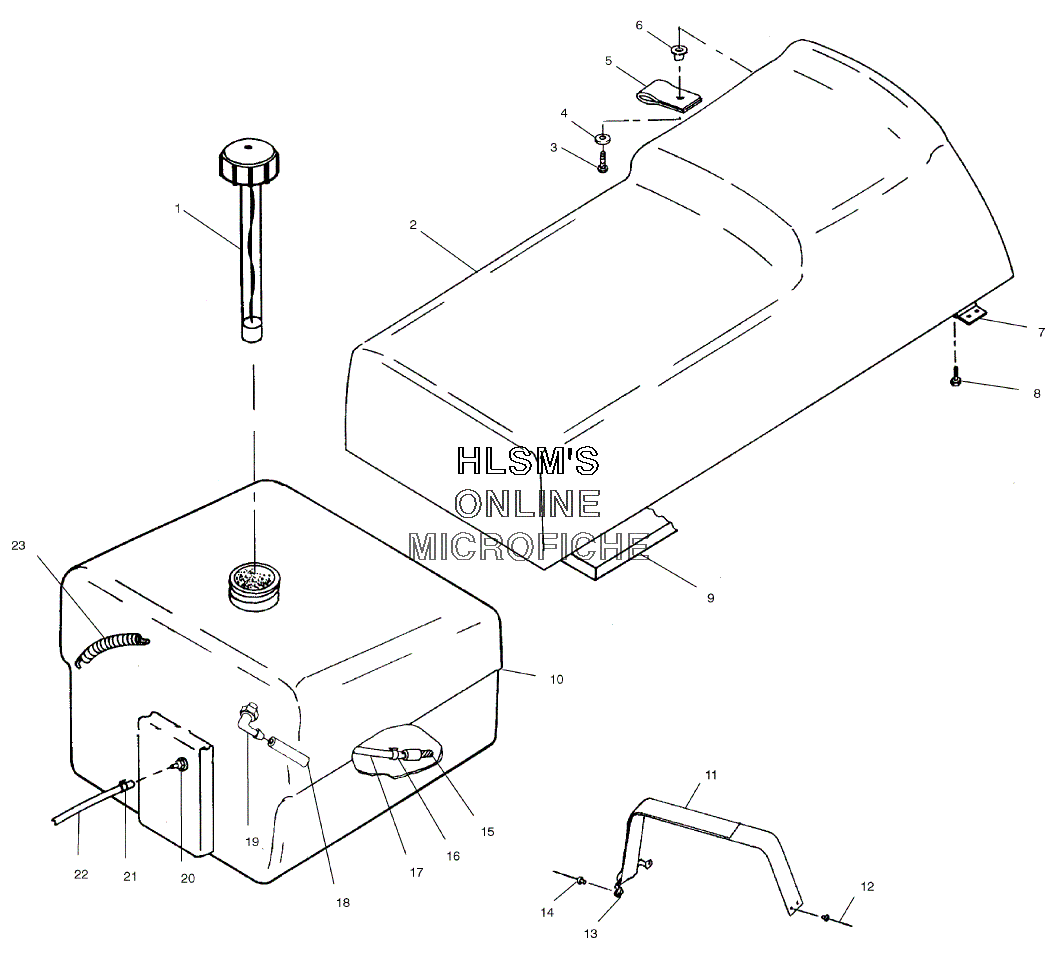

SEAT W/ GAS TANK ASSEMBLY для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска`
-
№АртикулНазвание
-
12511246 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22681976 SEAT ASSY., WT. 2-UP (INCL. 7)SEAT ASSY., WT. 2-UP (INCL. 7)
-
22682102 COVER, SEAT WT. 2-UPCOVER, SEAT WT. 2-UP
-
37511989 SCREWSCREW
-
47558203 WASHERWASHER
-
55810464 PULL, SEATPULL, SEAT
-
67541930 TEENUTTEENUT
-
87511990 SCREWSCREW
-
95811339 PAD, SEAT (BOTTOM)PAD, SEAT (BOTTOM)
-
105431143 TANK, FUEL ASSY.TANK, FUEL ASSY.
-
112690086 SEATBELT ASSY. (INCL. 13)SEATBELT ASSY. (INCL. 13)
-
127621467 RIVET, BLINDRIVET, BLIND
-
147661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
157052243 FUEL PICKUP W/FILTERFUEL PICKUP W/FILTER
-
167080402 RING, COMPRESSIONRING, COMPRESSION
-
178350019-1525 TUBING (OPT)TUBING (OPT)
-
188450061-600 FUELLINE (3MMX7MM) (OPT)FUELLINE (3MMX7MM) (OPT)
-
197052095 FITTING (90 DEG 1/8)FITTING (90 DEG 1/8)
-
207052023 FITTING, OUTLETFITTING, OUTLET
-
217080307 CLAMPCLAMP
-
228350018-600 TUBING, ETHER ERETHNE (160CM) (OPT)TUBING, ETHER ERETHNE (160CM) (OPT)
-
237042020 SPRING, TANKSPRING, TANK
