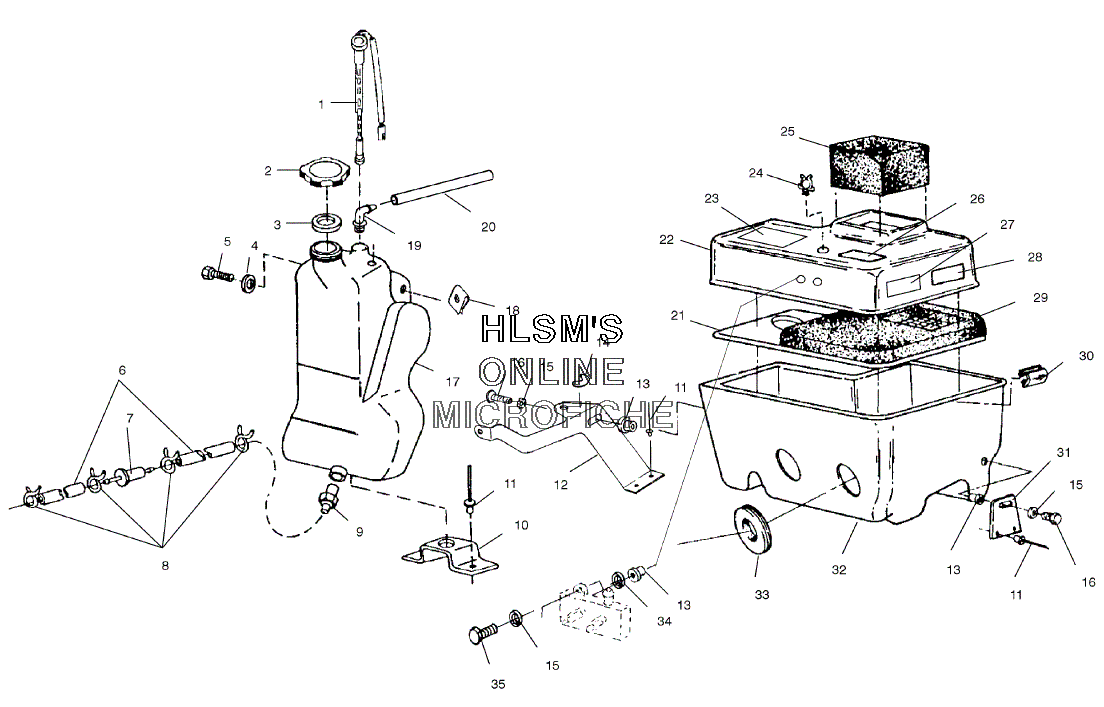

OIL TANK W/ AIR BOX ASSEMBLY для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
-
№АртикулНазвание
-
14040040 SENSOR, OIL LEVEL W/CONNECTIONSENSOR, OIL LEVEL W/CONNECTION
-
25430779 CAP, OIL TANKCAP, OIL TANK
-
35810141 GASKET, OIL CAPGASKET, OIL CAP
-
47558302 WASHER, WROUGHTWASHER, WROUGHT
-
57512276 BOLTBOLT
-
68450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
72530009 FILTER, IN-LINEFILTER, IN-LINE
-
87080307 CLAMPCLAMP
-
97052042 FITTING, OUTLETFITTING, OUTLET
-
105241334 BRACKET, OIL TANKBRACKET, OIL TANK
-
117661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
125241792-067 BRACKET, SIL./REM. FILLERBRACKET, SIL./REM. FILLER
-
137541923 NUT, WELLNUT, WELL
-
147072151 DECAL, SHUT-OFF VALVEDECAL, SHUT-OFF VALVE
-
157552604 WASHERWASHER
-
167512279 SCREWSCREW
-
175430997 TANK, OILTANK, OIL
-
187670096 NUTNUT
-
197052095 FITTING (90 DEGREE 1/8)FITTING (90 DEGREE 1/8)
-
208450061-600 FUEL LINE (3MMX7MM) (OPT)FUEL LINE (3MMX7MM) (OPT)
-
215850075 PLATE, AIR SILENCERPLATE, AIR SILENCER
-
225432244 COVER, SILENCERCOVER, SILENCER
-
237075359 DECAL, COOLER SYSTEMDECAL, COOLER SYSTEM
-
244020139 CLIP, PLASTICCLIP, PLASTIC
-
255811688 FOAM, AIRBOX, CHIMNEYFOAM, AIRBOX, CHIMNEY
-
267075351 DECAL, CAUTION AIRBOXDECAL, CAUTION AIRBOX
-
277073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
287073426 DECAL, GREASINGDECAL, GREASING
-
291253102 BAFFLE ASSY. (INCL. 21)BAFFLE ASSY. (INCL. 21)
-
307670055 CLIP, AIR BOXCLIP, AIR BOX
-
315211274 BRACKET, SILENCERBRACKET, SILENCER
-
325432647 SILENCER, INT. MODSILENCER, INT. MOD
-
335410403 BOOTBOOT
-
347555843 WASHER, WROUGHTWASHER, WROUGHT
-
357512222 SCREWSCREW
