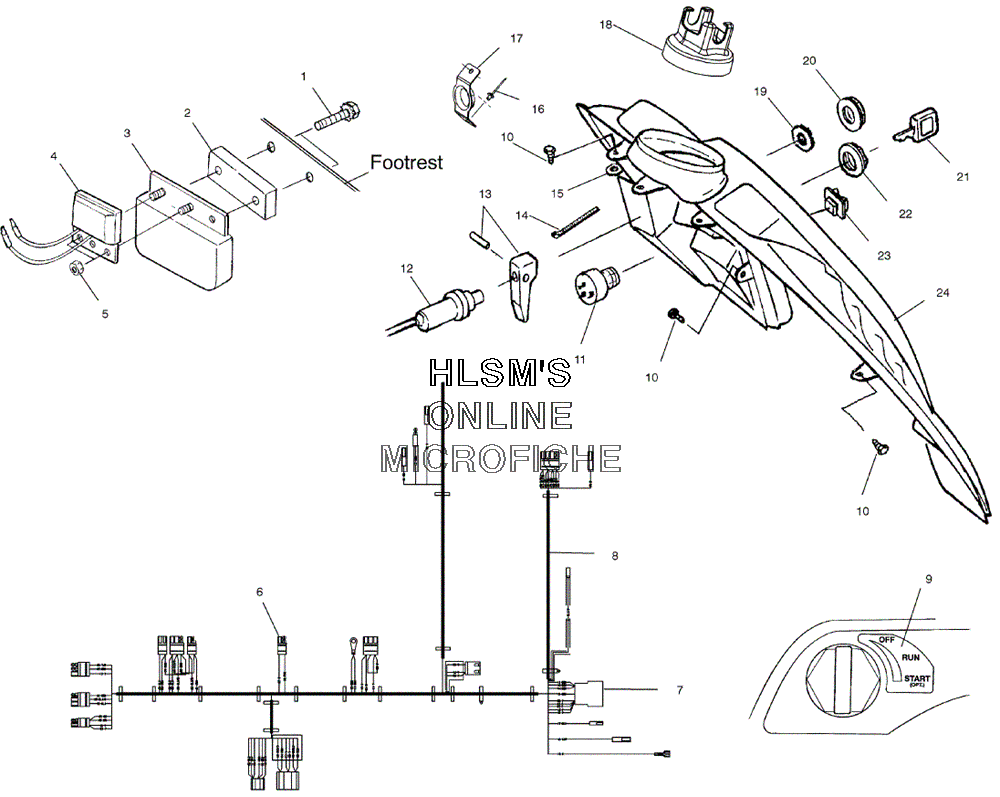

CONSOLE для Polaris WIDETRAK LX (S00SU4BS) - 2000 года выпуска
‹-+›
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060122 REGULATOR (14 VAC.LR-9)REGULATOR (14 VAC.LR-9)
-
44060104 RECTIFIER (LR-4)RECTIFIER (LR-4)
-
57541925 NUTNUT
-
64020092 TERMINAL, RINGTERMINAL, RING
-
74020057 HOUSING, W/RECEPTACLEHOUSING, W/RECEPTACLE
-
82460689 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
85811764 SLEEVESLEEVE
-
85811765 FOIL (4X5 3M)FOIL (4X5 3M)
-
97078399 DECAL, ELECTRIC STARTDECAL, ELECTRIC START
-
107515199 SCREWSCREW
-
112200358 IGN.SWITCH KITIGN.SWITCH KIT
-
127080290 CABLE, CHOKE (INCL. 13, 20)CABLE, CHOKE (INCL. 13, 20)
-
135432943 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
147080804 CABLE, TIE-RELEASABLE (5 1/2'')CABLE, TIE-RELEASABLE (5 1/2'')
-
157555932 WASHER, NYLONWASHER, NYLON
-
167621330 RIVET, POPRIVET, POP
-
175243049 GUIDE, RECOILGUIDE, RECOIL
-
185433243 BOOT, HANDLEBARBOOT, HANDLEBAR
-
197571610 WASHER, LOCKWASHER, LOCK
-
205432944 NUT, CHOKENUT, CHOKE
-
215410611 KEY, IGNITION, W/CAP (SEE FOOTNOTE)KEY, IGNITION, W/CAP (SEE FOOTNOTE)
-
227547035 NUT, IGNITIONNUT, IGNITION
-
234110263 SWITCH, HEATER HI/LOSWITCH, HEATER HI/LO
-
245432994 CONSOLE, HYB. (BLACK)CONSOLE, HYB. (BLACK)
