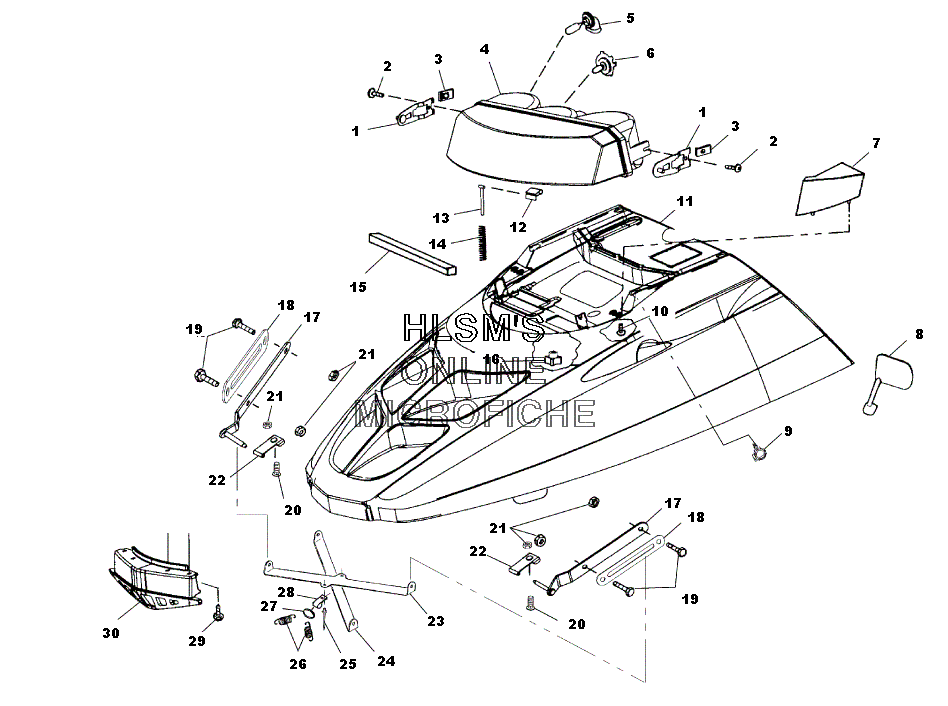

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска`
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD, HEADLIGHTMOUNT, WELD, HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP, ASSY THREE BULB (INCL. BULBS)HEADLAMP, ASSY THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT, 50 WATTBULB, HEADLIGHT, 50 WATT
-
62870448 BULB, QUARTZ. HEADLIGHT, INDYBULB, QUARTZ. HEADLIGHT, INDY
-
75431855 LENS, CLEAR REFLECTOR (LEFT)LENS, CLEAR REFLECTOR (LEFT)
-
75431856 LENS, CLEAR REFLECTOR (RIGHT)LENS, CLEAR REFLECTOR (RIGHT)
-
82871531 MIRRORS, DELUXE, PR (INCL. HARDWARE)MIRRORS, DELUXE, PR (INCL. HARDWARE)
-
87512040 SCREWSCREW
-
87541901 NUT, WELLNUT, WELL
-
94020149 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
97080886 CLIP (ROSEBUD) (GRAY)CLIP (ROSEBUD) (GRAY)
-
107511953 SCREWSCREW
-
112632069-177 HOOD, HYB, SVC, MOUNT, W/O SCR (BLK) (INCL. FOAM/FOIL)HOOD, HYB, SVC, MOUNT, W/O SCR (BLK) (INCL. FOAM/FOIL)
-
127670040 CLIP, U TYPECLIP, U TYPE
-
137517746 BOLT, TEE ADJUSTER, 2.25BOLT, TEE ADJUSTER, 2.25
-
147041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
155811687 FOAM, HEADLIGHT SEAL W/PSAFOAM, HEADLIGHT SEAL W/PSA
-
167080887 KNOB, HEADLIGHT, ADJUST, LOCKING BKNOB, HEADLIGHT, ADJUST, LOCKING B
-
171012750 HINGE (LEFT) (UPPER)HINGE (LEFT) (UPPER)
-
171012751 HINGE (RIGHT) (UPPER)HINGE (RIGHT) (UPPER)
-
185242948 PLATE, BOLTPLATE, BOLT
-
197515184 BOLTBOLT
-
207515203 BOLTBOLT
-
217542122 NUT, LOCKNUT, LOCK
-
225242678 PLATE, HINGE (LOWRE)PLATE, HINGE (LOWRE)
-
235242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
245242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
257661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
267041732 SPRING, EXT.SPRING, EXT.
-
277041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
287080372 CLAMP, RETAINERCLAMP, RETAINER
-
297517441 SCREWSCREW
-
305432931 SCREEN, HYB (FRONT)SCREEN, HYB (FRONT)
