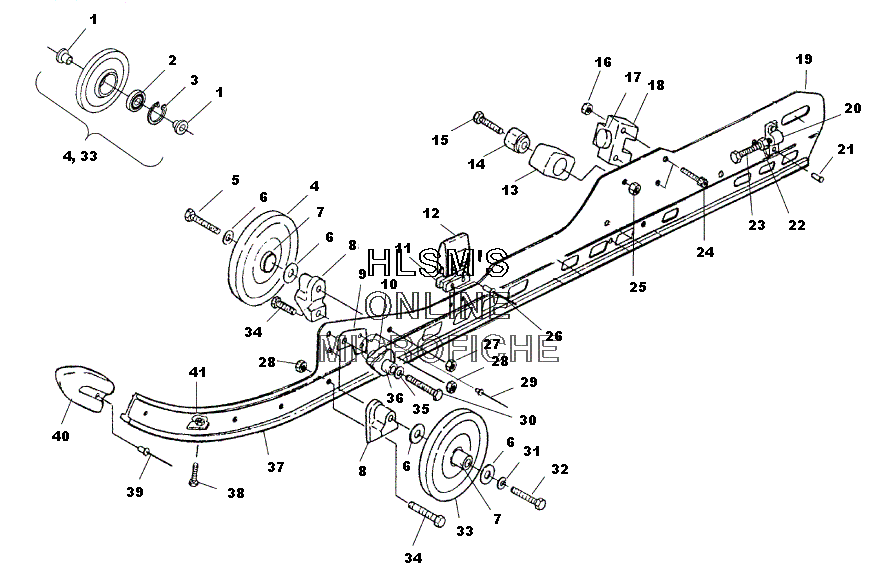

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5431531 INSERT, WHEEL (2 PER WHEEL)
    INSERT, WHEEL (2 PER WHEEL)
  • 2
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 3
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 4
    1543018 WHEEL, IDLER (INCL. 1, 3)
    WHEEL, IDLER (INCL. 1, 3)
  • 5
    7512538 BOLT
    BOLT
  • 6
    7555852 WASHER, FLAT
    WASHER, FLAT
  • 7
    5333116 SPACER, WHEEL
    SPACER, WHEEL
  • 8
    5630399 SPACER
    SPACER
  • 9
    5211786 PLATE, RAIL SUPPORT
    PLATE, RAIL SUPPORT
  • 10
    5431924 BLOCK, SPRING SLIDER
    BLOCK, SPRING SLIDER
  • 11
    5240946 BRACKET, BUMPER SUPPORT
    BRACKET, BUMPER SUPPORT
  • 12
    5811065 BUMPER, JOUNCE, RAIL, LT
    BUMPER, JOUNCE, RAIL, LT
  • 13
    5410925 BUMPER, PIVOT ARM (FRONT)
    BUMPER, PIVOT ARM (FRONT)
  • 14
    5131113 MOUNT, BUMPER PIVOT ARM (FRONT)
    MOUNT, BUMPER PIVOT ARM (FRONT)
  • 15
    7515545 BOLT
    BOLT
  • 16
    7542103 NUT, LOCK
    NUT, LOCK
  • 17
    5411041 BUMPER, PIVOT ARM (REAR)
    BUMPER, PIVOT ARM (REAR)
  • 18
    5131111 BLOCK, PIVOT ARM STOP (REAR)
    BLOCK, PIVOT ARM STOP (REAR)
  • 19
    1541438 RAIL, XTRA SKS, ASSY. (LEFT) (INCL. 11, 12, 20, 21, 26, 39, 40)
    RAIL, XTRA SKS, ASSY. (LEFT) (INCL. 11, 12, 20, 21, 26, 39, 40)
  • 19
    1541439 RAIL, XTRA SKS, ASSY. (RIGHT) (INCL.11, 12, 20, 21, 26, 39, 40)
    RAIL, XTRA SKS, ASSY. (RIGHT) (INCL.11, 12, 20, 21, 26, 39, 40)
  • 20
    5130530 BLOCK, IDLER BOLT ADJUST
    BLOCK, IDLER BOLT ADJUST
  • 21
    7621501 RIVET
    RIVET
  • 22
    5020943 NUT, TENSIONER ADJUST
    NUT, TENSIONER ADJUST
  • 23
    7515455 BOLT, ADJUSTER
    BOLT, ADJUSTER
  • 24
    7515156 SCREW
    SCREW
  • 25
    7542411 NUT LOCK
    NUT LOCK
  • 26
    7621488 RIVET
    RIVET
  • 27
    7542525 NUT, NYLOCK
    NUT, NYLOCK
  • 28
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 29
    7621514 RIVET
    RIVET
  • 30
    7515538 BOLT
    BOLT
  • 31
    7553101 WASHER LOCK
    WASHER LOCK
  • 32
    7512508 BOLT
    BOLT
  • 33
    1594082-256 WHEEL, BOGIE, SCRL (C.RED)
    WHEEL, BOGIE, SCRL (C.RED)
  • 34
    7512404 BOLT
    BOLT
  • 35
    7555976 WASHER
    WASHER
  • 36
    5010332 BUSHING
    BUSHING
  • 37
    5521452 SLIDER (WHITE)
    SLIDER (WHITE)
  • 38
    7515175 BOLT
    BOLT
  • 39
    7621435 RIVET
    RIVET
  • 40
    5433005 COVER, RAIL TIP
    COVER, RAIL TIP
  • 41
    7542122 NUT, LOCK
    NUT, LOCK
