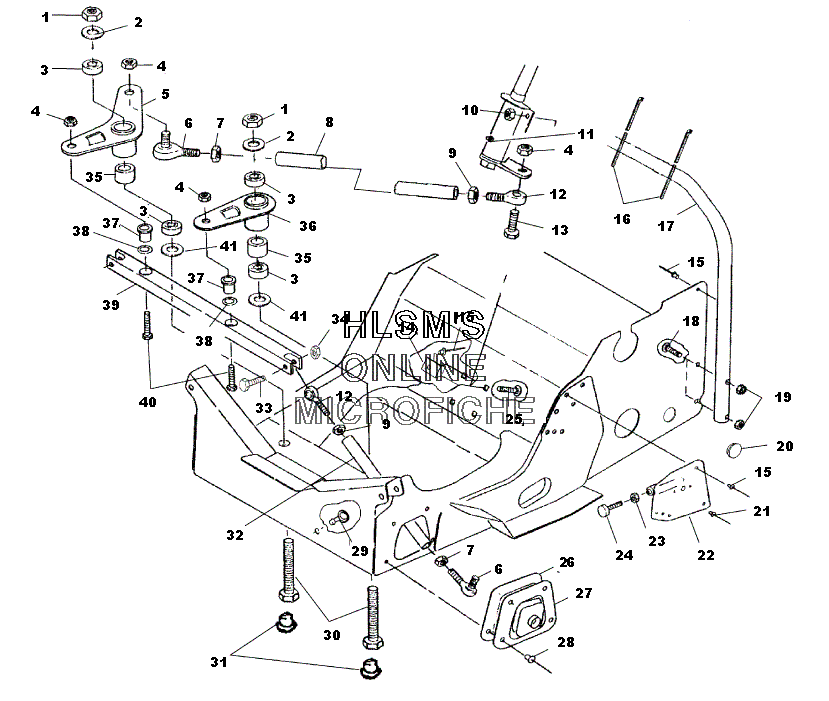

STEERING ASSEMBLY для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска
-
№АртикулНазвание
-
17547029 NUT, FLEX LOCKNUT, FLEX LOCK
-
27555721 WASHERWASHER
-
33563907 BUSHINGBUSHING
-
47542403 NUT LOCKNUT LOCK
-
51822417 PITMAN ARM ASSY. (INCL. 3, 35)PITMAN ARM ASSY. (INCL. 3, 35)
-
57080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
67060174 ROD, END, HI-ANGLE (RIGHT) (3/8)ROD, END, HI-ANGLE (RIGHT) (3/8)
-
77542401 NUT HEXNUT HEX
-
85333408 ROD, DRAG LINKROD, DRAG LINK
-
97542424 NUTNUT
-
107542303 NUT FLEX, LOCNUT FLEX, LOC
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
127060166 ROD END (LEFT)ROD END (LEFT)
-
137512404 BOLTBOLT
-
145241997 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
-
157661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
167080804 CABLE TIE, RELEASABLE (5 1/2'')CABLE TIE, RELEASABLE (5 1/2'')
-
171013152-067 STEERING, HOOP, WELDSTEERING, HOOP, WELD
-
187512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
197542103 NUT, LOCKNUT, LOCK
-
205410344 PLUGPLUG
-
217661643 RIVET (-3/16-.214-.420)RIVET (-3/16-.214-.420)
-
221012854 TORQUE STOP SN44TORQUE STOP SN44
-
237542404 NUTNUT
-
243110078 STOP, TORQUESTOP, TORQUE
-
257517428 BOLTBOLT
-
265411249 BOOT, TIEROD, MODULEBOOT, TIEROD, MODULE
-
275211796-067 PLATE, BOOT, MODULEPLATE, BOOT, MODULE
-
287621323 POP RIVETPOP RIVET
-
294020139 CLIP, PLASTICCLIP, PLASTIC
-
307517328 SCREWSCREW
-
317080689 PLUG, HOLEPLUG, HOLE
-
325132090-067 ROD, TIE (BLK)ROD, TIE (BLK)
-
337515434 SCREWSCREW
-
347542411 NUT LOCKNUT LOCK
-
355010468 SPACERSPACER
-
361820582 IDLER ARM (INCL. 3, 35)IDLER ARM (INCL. 3, 35)
-
375010384 TUBE, SPACERTUBE, SPACER
-
385411220 O-RINGO-RING
-
391822413 RACK ASSY, STEERINGRACK ASSY, STEERING
-
407517574 SCREWSCREW
-
417556053 WASHERWASHER
