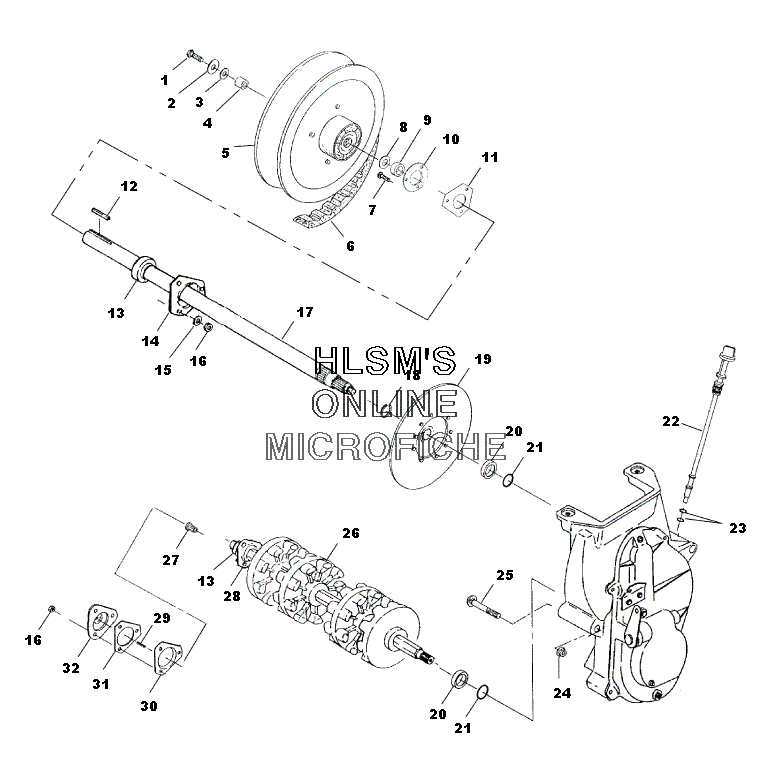

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020913 SPACERSPACER
-
63211075 BELT, DRIVEBELT, DRIVE
-
77512377 BOLTBOLT
-
87556509 WASHER SPECIALWASHER SPECIAL
-
95020837 SPACERSPACER
-
105241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
107080561 FITTING, LUB/VENFITTING, LUB/VEN
-
115811095 GASKET, JACKSHAFT (BLK)GASKET, JACKSHAFT (BLK)
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157558402 WASHER STEELWASHER STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY, 15 SPLINE (INCL. 13, 18)JACKSHAFT ASSY, 15 SPLINE (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC, SNOW, 6385 CR, ASSY.BRAKE DISC, SNOW, 6385 CR, ASSY.
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O RINGO RING
-
225431419 DIPSTICK, ASSYDIPSTICK, ASSY
-
235410675 O-RINGO-RING
-
247542423 NUTNUT
-
257515428 BOLTBOLT
-
261590282 DRIVESHAFT ASSY, 4 DR, W/BEARING, XHS (INCL. 27, 28)DRIVESHAFT ASSY, 4 DR, W/BEARING, XHS (INCL. 27, 28)
-
273280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
281012945 FLANGETTE, W/SCREWS, ASSYFLANGETTE, W/SCREWS, ASSY
-
293280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
305243529 FLANGETTE, OFFSET, W/HOLEFLANGETTE, OFFSET, W/HOLE
-
315830012 GASKET, DRIVE ADAPTOR,GASKET, DRIVE ADAPTOR,
-
323280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
