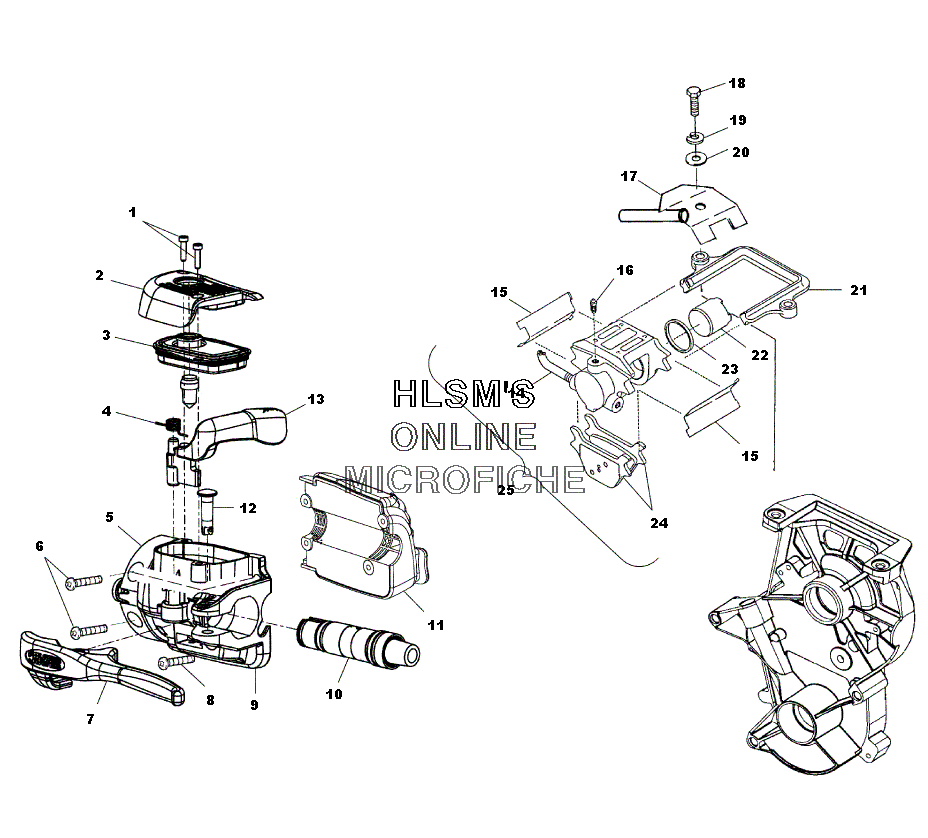

BRAKE ASSEMBLY для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW, KIT (HAYES)
    COVER SCREW, KIT (HAYES)
  • 2
    2201255 COVER ASSY, KIT (HAYES) (INCL. 1, 3)
    COVER ASSY, KIT (HAYES) (INCL. 1, 3)
  • 4
    2201250 PARKLEVER SPRING, KIT
    PARKLEVER SPRING, KIT
  • 5
    2050087 MASTER CYLINDER ASSY KIT (HAYES) (INCL. 2, 4, 7, 9, 10, 12)
    MASTER CYLINDER ASSY KIT (HAYES) (INCL. 2, 4, 7, 9, 10, 12)
  • 6
    7517441 SCREW
    SCREW
  • 7
    2201569 LEVER, 3 NOTCH/PIN/RING, KIT
    LEVER, 3 NOTCH/PIN/RING, KIT
  • 8
    7517566 SCREW
    SCREW
  • 9
    2201249 MASTER CYLINDER ASSY KIT (HAYES)
    MASTER CYLINDER ASSY KIT (HAYES)
  • 9
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 10
    2201248 CARTRIDGE SUB, ASSY.KIT (5/8'')
    CARTRIDGE SUB, ASSY.KIT (5/8'')
  • 11
    2010167 CONTROL ASSY (LEFT) (BASIC)
    CONTROL ASSY (LEFT) (BASIC)
  • 12
    2201252 PIVOT, PIN ALUMINUM W/SNAP RING KIT
    PIVOT, PIN ALUMINUM W/SNAP RING KIT
  • 13
    2201251 PARKLEVER AND SPRING, KIT (INCL. 4)
    PARKLEVER AND SPRING, KIT (INCL. 4)
  • 14
    1910313 LINE, BRAKE, HYBRID
    LINE, BRAKE, HYBRID
  • 15
    2200467 CLIP SPRING, KIT (QTY. 2)
    CLIP SPRING, KIT (QTY. 2)
  • 16
    1930735 INLET, KIT
    INLET, KIT
  • 17
    1012581 GUIDE, ROPE, CHAINCASE Z
    GUIDE, ROPE, CHAINCASE Z
  • 18
    7515521 BOLT
    BOLT
  • 19
    7552603 WASHER
    WASHER
  • 20
    7555806 WASHER
    WASHER
  • 21
    1930733 CALIPER BRACKET, KIT
    CALIPER BRACKET, KIT
  • 22
    1930734 PISTON SEAL, KIT (INCL. 23)
    PISTON SEAL, KIT (INCL. 23)
  • 23
    2200466 SEAL
    SEAL
  • 24
    2201429 BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 15)
    BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 15)
  • 24
    2201430 BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 15)
    BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 15)
  • 25
    1910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 22, 23, 24)
    BRAKE CALIPER, HD, LIQ, NOSW (INCL. 22, 23, 24)
