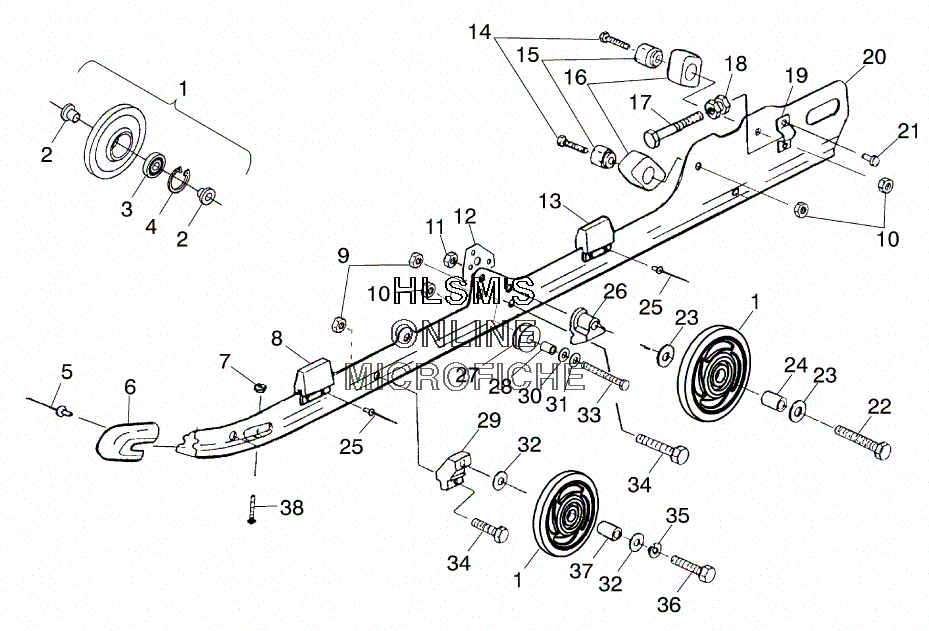

SUSPENSION - RAIL MOUNTING для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска
-
№АртикулНазвание
-
11594082-293 WHEEL, SCROLL, BOGIE (INDYRED0 (INCL. 2, 4)WHEEL, SCROLL, BOGIE (INDYRED0 (INCL. 2, 4)
-
25431531 INSERT, WHEEL, (2 PER WHEEL)INSERT, WHEEL, (2 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
57621435 RIVETRIVET
-
65433005 COVER, RAIL TIPCOVER, RAIL TIP
-
77542122 NUT, LOCKNUT, LOCK
-
85222629 REINF., BUMPERREINF., BUMPER
-
85810554 BUMPER, RAILBUMPER, RAIL
-
97542439 NUT, NYLOKNUT, NYLOK
-
107542411 NUT LOCKNUT LOCK
-
117542525 NUT, NYLOCKNUT, NYLOCK
-
125211790 BRACKET RAIL, REINFBRACKET RAIL, REINF
-
135222629 REINF., BUMPERREINF., BUMPER
-
135811097 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
147515545 BOLT,BOLT,
-
155131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
165410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
177515455 BOLT, ADJUSTERBOLT, ADJUSTER
-
185020943 NUT, TENSIONER ADJUSTERNUT, TENSIONER ADJUSTER
-
195130530 BLOCK, IDLER BOLT ADJUSTERBLOCK, IDLER BOLT ADJUSTER
-
201541336 RAIL (XTRA 10) (121) (LEFT) (INCL. 6, 8, 13, 19)RAIL (XTRA 10) (121) (LEFT) (INCL. 6, 8, 13, 19)
-
201541337 RAIL (XTRA 10) (121) (RIGHT) (INCL. 6, 8, 13, 19)RAIL (XTRA 10) (121) (RIGHT) (INCL. 6, 8, 13, 19)
-
217621501 RIVETRIVET
-
227512538 BOLTBOLT
-
237555852 WASHER, FLATWASHER, FLAT
-
245333116 SPACER, WHEELSPACER, WHEEL
-
257621476 RIVETRIVET
-
265630399 SPACERSPACER
-
275432982 ROLLER, SPRING, SQUARE (X10)ROLLER, SPRING, SQUARE (X10)
-
285332787 SPACERSPACER
-
295130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
307555806 WASHERWASHER
-
317555976 WASHERWASHER
-
327555804 WASHERWASHER
-
337515433 BOLTBOLT
-
347512404 BOLTBOLT
-
357553201 LOCK WASHERLOCK WASHER
-
367512659 BOLTBOLT
-
375332786 SPACERSPACER
-
387515175 BOLTBOLT
