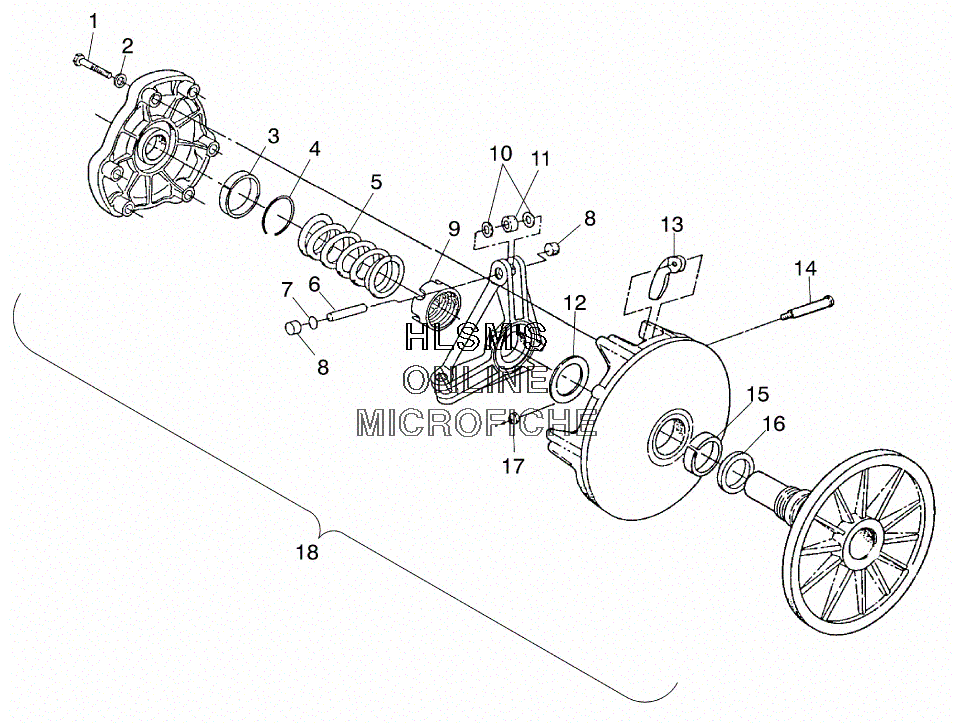

CLUTCH - DRIVE для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041148 SPRING, CLUTCH (GOLD)SPRING, CLUTCH (GOLD)
-
65020422 PIN, ROLLERPIN, ROLLER
-
72200387 SHIM, DRIVE CLUTCH, KITSHIM, DRIVE CLUTCH, KIT
-
85430445 BUTTON, GUIDEBUTTON, GUIDE
-
95020425 NUT, JAMNUT, JAM
-
105430945 WASHERWASHER
-
111321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
125210752 SPACER (.020'')SPACER (.020'')
-
125210753 SPACER (.032'')SPACER (.032'')
-
125210754 SPACER (.050'')SPACER (.050'')
-
125242981 SPACER (.025'')SPACER (.025'')
-
131321528 WT/BUSH.ASSY. (10M)WT/BUSH.ASSY. (10M)
-
147515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
153576502 SLEEVE, BEARINGSLEEVE, BEARING
-
165010188 BUSHING, RETAINERBUSHING, RETAINER
-
177541906 NUT, FLEX LOCNUT, FLEX LOC
-
181321736 CLUTCH, BASIC #87 (DRIVE) (INCL. ALL LESS 5, 13)CLUTCH, BASIC #87 (DRIVE) (INCL. ALL LESS 5, 13)
-
182200386 CLUTCH UPDATE, KIT (INCL. 6, 7, 8, 10, 11, 14)CLUTCH UPDATE, KIT (INCL. 6, 7, 8, 10, 11, 14)
