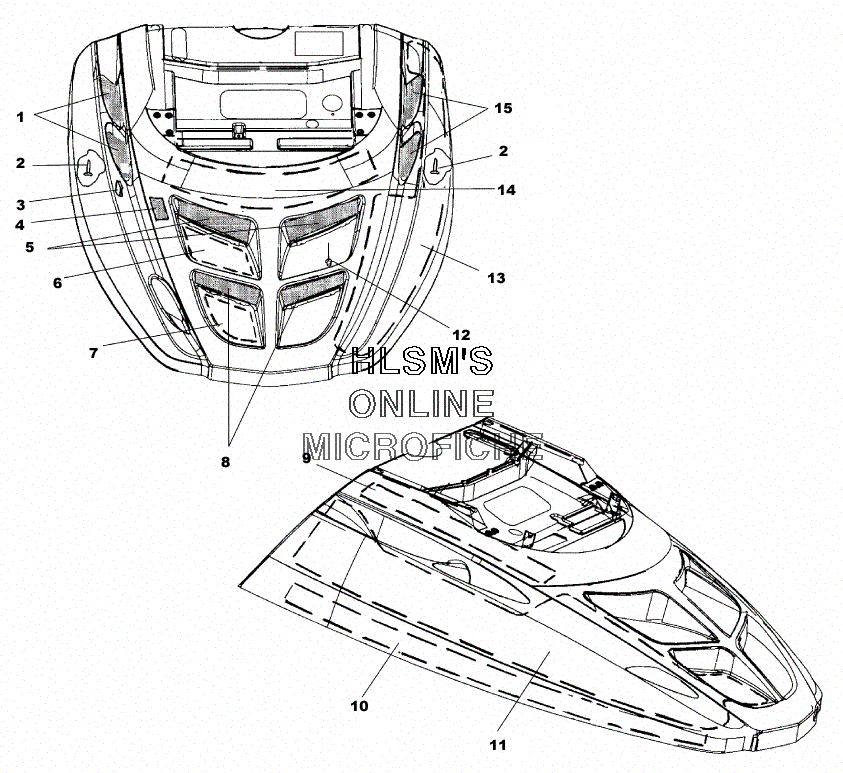

HOOD - FOAM/FOIL для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5242858-067 SCREEN, HOOD (BLK) (RIGHT)
    SCREEN, HOOD (BLK) (RIGHT)
  • 2
    7511864 BOLT
    BOLT
  • 3
    7670040 CLIP, U TYPE
    CLIP, U TYPE
  • 4
    5811703 FOIL, HOOD TAB, REINF
    FOIL, HOOD TAB, REINF
  • 5
    5243108-067 SCREEN, HOOD (FRONT) (UPPER) (LEFT) (BLK)
    SCREEN, HOOD (FRONT) (UPPER) (LEFT) (BLK)
  • 5
    5243109-067 SCREEN, HOOD (FRONT) (UPPER) (RIGHT) (BLK)
    SCREEN, HOOD (FRONT) (UPPER) (RIGHT) (BLK)
  • 6
    5811621 FOIL, TAPE, W/CUTOUT
    FOIL, TAPE, W/CUTOUT
  • 7
    5811616 FOIL, TAPE
    FOIL, TAPE
  • 8
    5243110-067 SCREEN, HOOD (FRONT) (LOWER) (LEFT) (BLK)
    SCREEN, HOOD (FRONT) (LOWER) (LEFT) (BLK)
  • 8
    5243111-067 SCREEN, HOOD (FRONT) (LOWER) (RIGHT) (BLK)
    SCREEN, HOOD (FRONT) (LOWER) (RIGHT) (BLK)
  • 9
    5811721 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 10
    5811612 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 11
    5811611 FOIL/FOAM, HEAT SHIELD, HD. (LEFT)
    FOIL/FOAM, HEAT SHIELD, HD. (LEFT)
  • 12
    7621334 RIVET
    RIVET
  • 13
    5811607 FOAM, HOOD (LEFT)
    FOAM, HOOD (LEFT)
  • 14
    5811609 FOAM, HOOD (CENTER)
    FOAM, HOOD (CENTER)
  • 15
    5242857-067 SCREEN, HOOD (BLK) (LEFT)
    SCREEN, HOOD (BLK) (LEFT)
