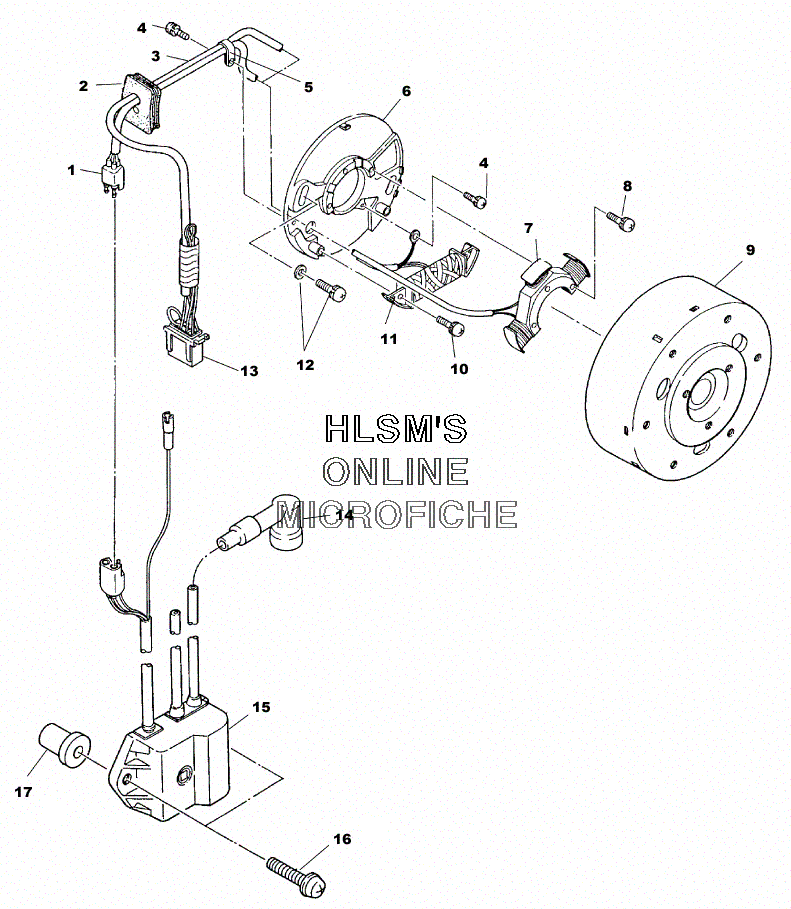

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33084289 HARNESS, WIRE (INCL. 2)HARNESS, WIRE (INCL. 2)
-
43081260 SCREW AND WASHERSCREW AND WASHER
-
53081296 CLAMPCLAMP
-
63083987 PLATE, COILPLATE, COIL
-
63084286 PLATE ASSY. (INCL. 1, 8, 10, 11, 13)PLATE ASSY. (INCL. 1, 8, 10, 11, 13)
-
73083991 STATOR 1STATOR 1
-
83082365 SCREWSCREW
-
93084287 FLYWHEELFLYWHEEL
-
103083423 SCREW AND WASHERSCREW AND WASHER
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 SCREW AND WASHERSCREW AND WASHER
-
133081513 COUPLER, MALECOUPLER, MALE
-
144020129 CAP SPARK PLUGCAP SPARK PLUG
-
153085053 COIL, IGNITIONCOIL, IGNITION
-
163083784 SCREW AND WASHERSCREW AND WASHER
-
173083240 NUT, RUBBERNUT, RUBBER
