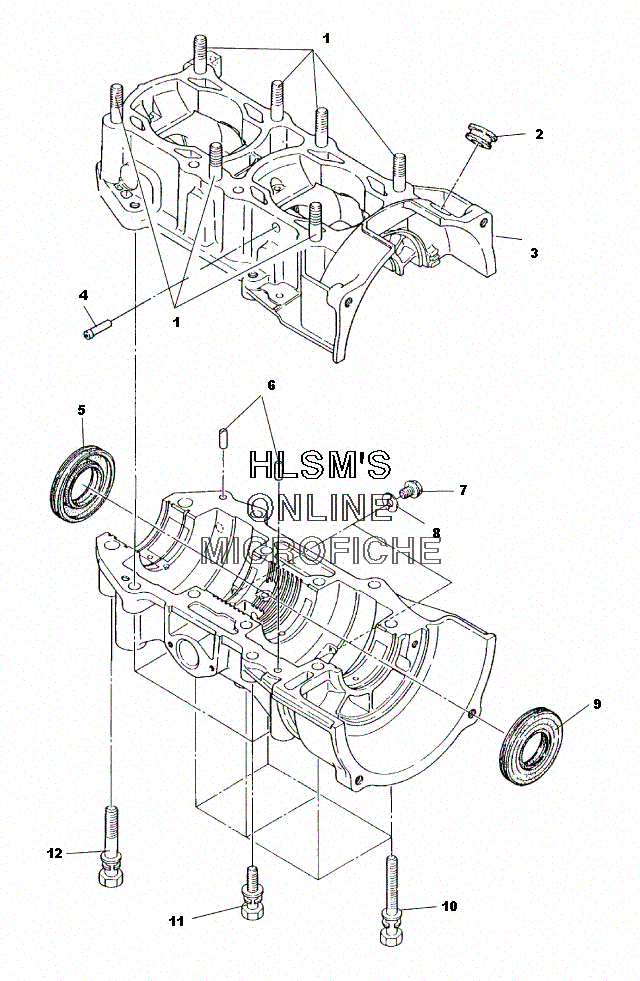

CRANKCASE ASSEMBLY для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска`
-
№АртикулНазвание
-
13084119 STUDSTUD
-
23082875 GROMMETGROMMET
-
33085199 CRANKCASE ASSY. (INCL. 1, 4, 6, 10-12)CRANKCASE ASSY. (INCL. 1, 4, 6, 10-12)
-
43083567 PIPE, PULSEPIPE, PULSE
-
53085200 SEAL, OIL (PTO)SEAL, OIL (PTO)
-
63080103 PIN, DOWELPIN, DOWEL
-
73083568 BOLT, FLANGEBOLT, FLANGE
-
83082758 WASHER, FLATWASHER, FLAT
-
93083045 SEAL, OIL (MAG)SEAL, OIL (MAG)
-
103080739 BOLT W/WASHERBOLT W/WASHER
-
113083078 BOLT AND WASHERBOLT AND WASHER
-
123084220 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
