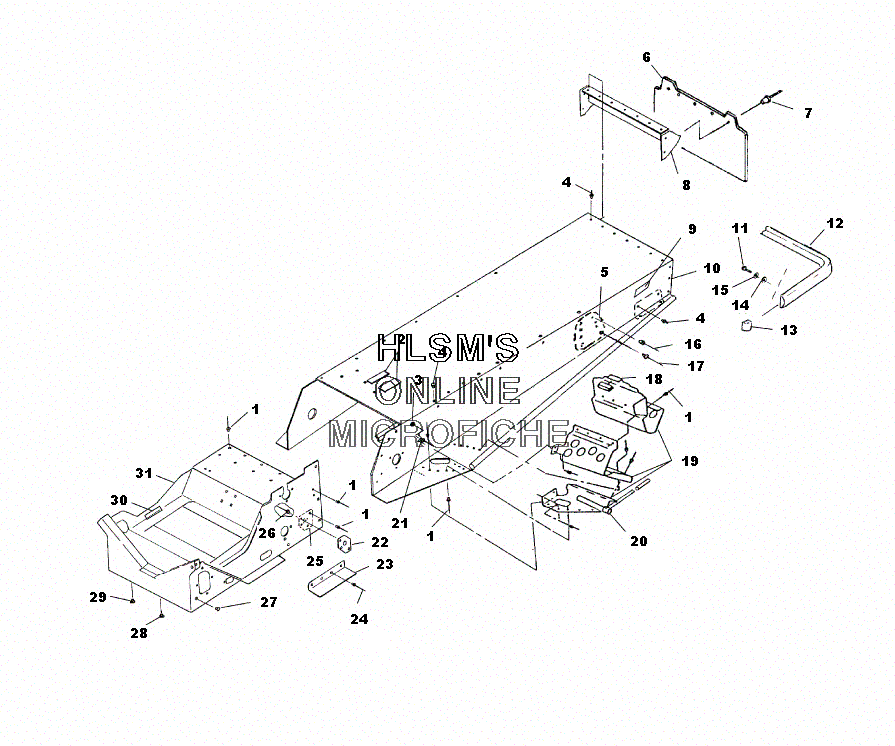

TUNNEL ASSEMBLY для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
27073978 DECAL, TUNNEL STRIP (TOP)DECAL, TUNNEL STRIP (TOP)
-
37080227 SNAP, MALESNAP, MALE
-
47661840 RIVET, SEMI-TUBERIVET, SEMI-TUBE
-
51012431-067 PAD, SUSPENSION (BLACK/LEFT/REAR)PAD, SUSPENSION (BLACK/LEFT/REAR)
-
51012432-067 PAD, SUSPENSION (BLACK/RIGHT/REAR)PAD, SUSPENSION (BLACK/RIGHT/REAR)
-
65432149 FLAP, SNOW 13.74'' (BLACK W/CHROME)FLAP, SNOW 13.74'' (BLACK W/CHROME)
-
77621418 POP RIVETPOP RIVET
-
85241053-067 PANEL, TUNNELBACKPANEL, TUNNELBACK
-
92670070 REFLECTOR (RED)REFLECTOR (RED)
-
101012910-067 TUNNEL, L/C (BLACK) (INCL. 4-5,8,24 AND HEAT EXCHANGERS)TUNNEL, L/C (BLACK) (INCL. 4-5,8,24 AND HEAT EXCHANGERS)
-
117512240 BOLTBOLT
-
122670169 BUMPER ASSY. (BLACK/REAR)BUMPER ASSY. (BLACK/REAR)
-
135431995-070 CAP, BUMPERCAP, BUMPER
-
147558301 WASHERWASHER
-
157552801 LOCK, WASHERLOCK, WASHER
-
167661837 RIVETRIVET
-
177661846 RIVETRIVET
-
185521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
191012681 FOOTREST ASSY. (BLACK/LEFT)FOOTREST ASSY. (BLACK/LEFT)
-
191012682 FOOTREST ASSY. (BLACK/RIGHT)FOOTREST ASSY. (BLACK/RIGHT)
-
201012812-067 SUPPORT, TUNNEL (BLACK/LEFT)SUPPORT, TUNNEL (BLACK/LEFT)
-
201012813-067 SUPPORT, TUNNEL (BLACK/RIGHT)SUPPORT, TUNNEL (BLACK/RIGHT)
-
217621222 RIVETRIVET
-
225211746-067 PLATE, SUSPENSION OUT (BLACK/FRONT)PLATE, SUSPENSION OUT (BLACK/FRONT)
-
235222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
247621452 RIVETRIVET
-
251012269-067 MOUNT, SUSPENSION (BLACK/LEFT/FRONT)MOUNT, SUSPENSION (BLACK/LEFT/FRONT)
-
251012270-067 MOUNT, SUSPENSION (BLACK/RIGHT/FRONT)MOUNT, SUSPENSION (BLACK/RIGHT/FRONT)
-
267661643 RIVETRIVET
-
277080416 PLUG, HOLEPLUG, HOLE
-
287080398 PLUG, HOLEPLUG, HOLE
-
297080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
308360012-06 DECALDECAL
-
311012888-067 BULKHEAD (STD) (BLACK)BULKHEAD (STD) (BLACK)
