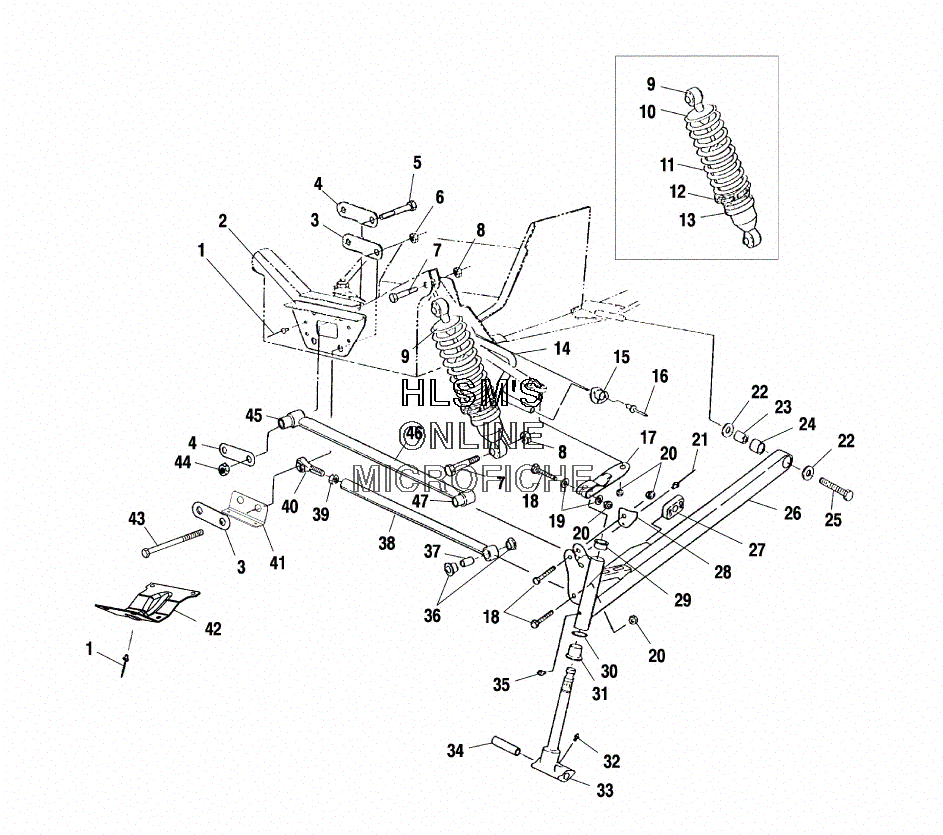

SUSPENSION - FRONT для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
  • 2
    5242117 BRACE, BULKHEAD (FRONT)
    BRACE, BULKHEAD (FRONT)
  • 3
    5211345 STRAP, SPACER (BOTTOM)
    STRAP, SPACER (BOTTOM)
  • 4
    5211344 STRAP, SPACER (TOP)
    STRAP, SPACER (TOP)
  • 5
    7512582 BOLT
    BOLT
  • 6
    7542703 NUT, FLEX
    NUT, FLEX
  • 7
    7515415 BOLT
    BOLT
  • 8
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 9
    7041866 SHOCK, GAS IFS
    SHOCK, GAS IFS
  • 10
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 11
    7041405-067 SPRING, .306 COMP (BLACK)
    SPRING, .306 COMP (BLACK)
  • 12
    5431734 RING, SPRING PRELOAD ADJUST
    RING, SPRING PRELOAD ADJUST
  • 13
    1500063 RETAINER, SPRING BODY THREADED
    RETAINER, SPRING BODY THREADED
  • 14
    5224749-067 BAR, SWAY (9/16) (X-12) (BLACK)
    BAR, SWAY (9/16) (X-12) (BLACK)
  • 15
    5432412 BUSHING, SWAY BAR
    BUSHING, SWAY BAR
  • 16
    7621433 RIVET
    RIVET
  • 17
    5241560-067 ARM, STEERING (BLACK)
    ARM, STEERING (BLACK)
  • 18
    7517583 SCREW
    SCREW
  • 19
    7555832 WASHER
    WASHER
  • 20
    7542403 NUT, LOCK
    NUT, LOCK
  • 21
    7661643 RIVET
    RIVET
  • 22
    7555721 WASHER
    WASHER
  • 23
    5010310 TUBE, BUSHING
    TUBE, BUSHING
  • 24
    5410872 PIVOT, TRAILING ARM RUBBER
    PIVOT, TRAILING ARM RUBBER
  • 25
    7512557 BOLT
    BOLT
  • 26
    1822506 TRAILING ARM ASSY. (BLACK/LEFT) (INCL. 23, 24)
    TRAILING ARM ASSY. (BLACK/LEFT) (INCL. 23, 24)
  • 26
    1822507 TRAILING ARM ASSY. (RIGHT/BLACK) (INCL. 23, 24)
    TRAILING ARM ASSY. (RIGHT/BLACK) (INCL. 23, 24)
  • 27
    5432674 SLIDE, SWAYBAR (9/16)
    SLIDE, SWAYBAR (9/16)
  • 28
    5241569-067 STOP, STEERING (BLACK/LEFT)
    STOP, STEERING (BLACK/LEFT)
  • 28
    5241570-067 STOP, STEERING (BLACK/RIGHT)
    STOP, STEERING (BLACK/RIGHT)
  • 29
    3573909 BUSHING FLANGE
    BUSHING FLANGE
  • 30
    7556509 WASHER, SPECIAL
    WASHER, SPECIAL
  • 31
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 32
    7080306 FITTING, LUBE W/BALL CHECK
    FITTING, LUBE W/BALL CHECK
  • 33
    6230102-067 SHAFT, SPINDLE TRAILING (BLACK)
    SHAFT, SPINDLE TRAILING (BLACK)
  • 34
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 35
    7080433 ZERK, FITTING THREADED
    ZERK, FITTING THREADED
  • 36
    5431486 BUSH, RADIUS ROD PIVOT (OUTTER)
    BUSH, RADIUS ROD PIVOT (OUTTER)
  • 37
    5010127 BUSHING, RADIUS ROD
    BUSHING, RADIUS ROD
  • 38
    1822383-067 ROD, RADIUS (BLACK/LOWER)
    ROD, RADIUS (BLACK/LOWER)
  • 39
    7542711 NUT, JAM
    NUT, JAM
  • 40
    7061027 ROD END, RADIUS (RIGHT/LOWER)
    ROD END, RADIUS (RIGHT/LOWER)
  • 41
    5242578 BRACKET, RADIUS ROD (BOTTOM)
    BRACKET, RADIUS ROD (BOTTOM)
  • 43
    7512684 BOLT
    BOLT
  • 44
    7542503 NUT, LOCK
    NUT, LOCK
  • 45
    5411095 BUSHING, PIVOT (7/16)
    BUSHING, PIVOT (7/16)
  • 46
    1822510 ROD, RADIUS FIXED (UPPER)
    ROD, RADIUS FIXED (UPPER)
  • 47
    5411099 BUSHING, RADIUS ROD PIVOT (3/8)
    BUSHING, RADIUS ROD PIVOT (3/8)
