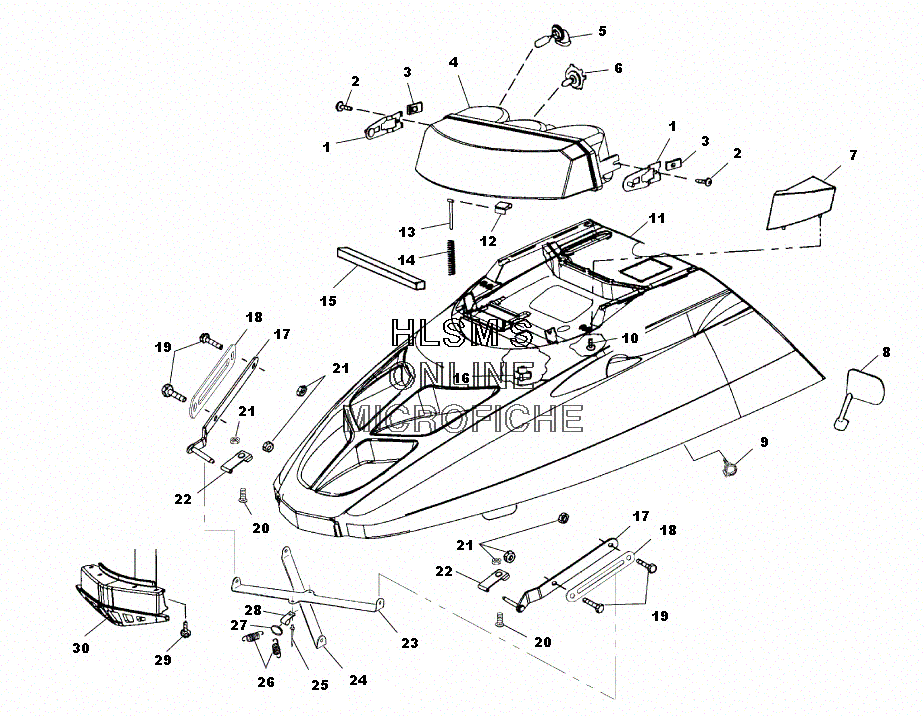

HOOD - HEADLIGHT ASSEMBLY для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1011944-067 MOUNT, WELD HEADLIGHTS
    MOUNT, WELD HEADLIGHTS
  • 2
    7515107 BOLT
    BOLT
  • 3
    7670057 NUT, SPEED
    NUT, SPEED
  • 4
    2433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)
    HEADLAMP ASSY., THREE BULB (INCL. BULBS)
  • 5
    4010253 BULB, HEADLIGHT (50 WATT)
    BULB, HEADLIGHT (50 WATT)
  • 6
    2870448 BULB, QUARTZ HEADLIGHT
    BULB, QUARTZ HEADLIGHT
  • 7
    5431855 LENS, REFLECTOR (CLEAR/LEFT)
    LENS, REFLECTOR (CLEAR/LEFT)
  • 7
    5431856 LENS, REFLECTOR (CLEAR/RIGHT)
    LENS, REFLECTOR (CLEAR/RIGHT)
  • 8
    2871531 MIRRORS, DELUXE (PAIR) (INCL. HARDWARE)
    MIRRORS, DELUXE (PAIR) (INCL. HARDWARE)
  • 8
    7512040 SCREW
    SCREW
  • 8
    7541901 NUT, WELL
    NUT, WELL
  • 9
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 10
    7511953 SCREW
    SCREW
  • 11
    2632069-259 HOOD, HYBRID, SVC (CANDY APPLE RED) (INCL. FOAM/FOIL)
    HOOD, HYBRID, SVC (CANDY APPLE RED) (INCL. FOAM/FOIL)
  • 12
    7670040 CLIP-U TYPE
    CLIP-U TYPE
  • 13
    7517746 BOLT, TEE ADJUSTER
    BOLT, TEE ADJUSTER
  • 14
    7041308 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 15
    5811687 FOAM HEADLIGHT SEAL W/PSA
    FOAM HEADLIGHT SEAL W/PSA
  • 16
    7080887 KNOB, HEADLIGHT ADJUST LOCKING B
    KNOB, HEADLIGHT ADJUST LOCKING B
  • 17
    1012750 HINGE (LEFT/UPPER)
    HINGE (LEFT/UPPER)
  • 17
    1012751 HINGE (RIGHT/UPPER)
    HINGE (RIGHT/UPPER)
  • 18
    5242948 PLATE, BOLT
    PLATE, BOLT
  • 19
    7515184 BOLT
    BOLT
  • 20
    7515203 BOLT
    BOLT
  • 21
    7542122 NUT, LOCK
    NUT, LOCK
  • 22
    5242678 PLATE, HINGE (LOWER)
    PLATE, HINGE (LOWER)
  • 23
    5242945 BRACE, HOOD (UPPER)
    BRACE, HOOD (UPPER)
  • 24
    5242946 BRACE, HOOD (LOWER)
    BRACE, HOOD (LOWER)
  • 25
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 26
    7041732 SPRING, EXT.
    SPRING, EXT.
  • 27
    7041760 SPRING, ATTACHMENT RING
    SPRING, ATTACHMENT RING
  • 28
    7080372 CLAMP, RETAINER
    CLAMP, RETAINER
  • 29
    7517441 SCREW
    SCREW
  • 30
    5432931 SCREEN, HYBRID (FRONT)
    SCREEN, HYBRID (FRONT)
