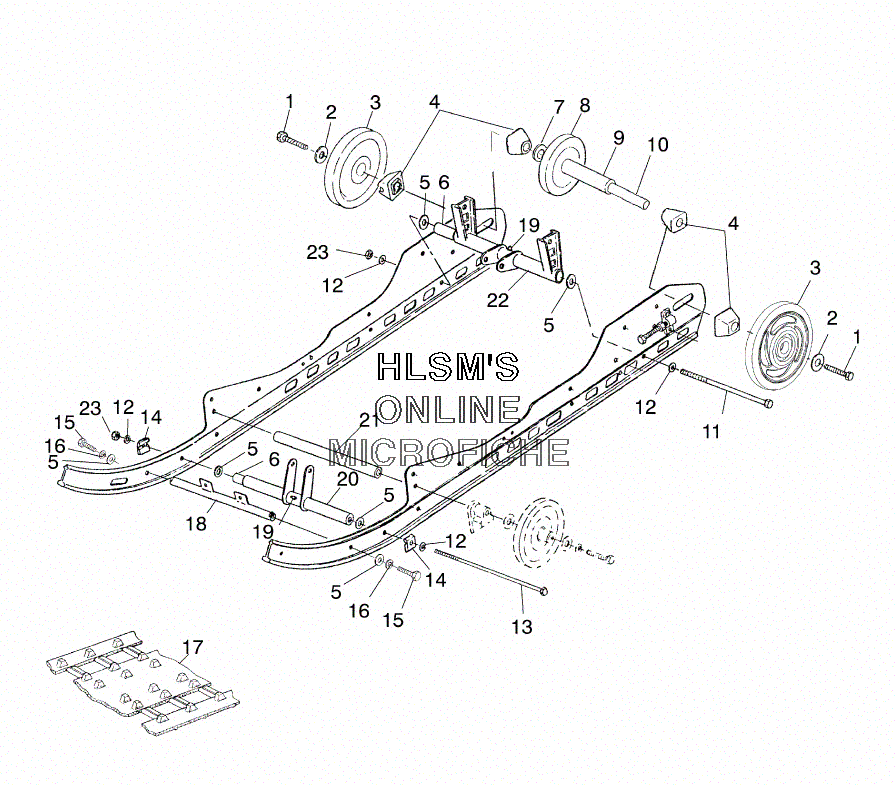

RAIL ASSEMBLY W/ IDLER WHEELS #2 для Polaris 500 CLASSIC (S00SD4BS) - 2000 года выпуска`
-
№АртикулНазвание
-
17515526 BOLTBOLT
-
27571629 WASHERWASHER
-
31594083-256 WHEEL, IDLER (C.RED)WHEEL, IDLER (C.RED)
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555893 WASHERWASHER
-
65333404 SHAFTSHAFT
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
117517353 SCREWSCREW
-
127555806 WASHERWASHER
-
137517380 SCREWSCREW
-
145131112 BOSS, BOLT HEADBOSS, BOLT HEAD
-
157517247 SCREWSCREW
-
167552603 WASHERWASHER
-
175222839 CLIP, TRACK (OPT)CLIP, TRACK (OPT)
-
175222840 CLIP, GUIDE (OPT)CLIP, GUIDE (OPT)
-
175411168 TRACK (121''X.82) MOD (LIGHTNING)TRACK (121''X.82) MOD (LIGHTNING)
-
181012267-067 SHAFT, LIMITER STRAP (BLACK)SHAFT, LIMITER STRAP (BLACK)
-
197080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
201540968-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
215020649 SHAFT, SHOCK BRACKETSHAFT, SHOCK BRACKET
-
221541141-067 ARM, PIVOT (BLACK/REAR)ARM, PIVOT (BLACK/REAR)
-
237542411 NUT, LOCKNUT, LOCK
