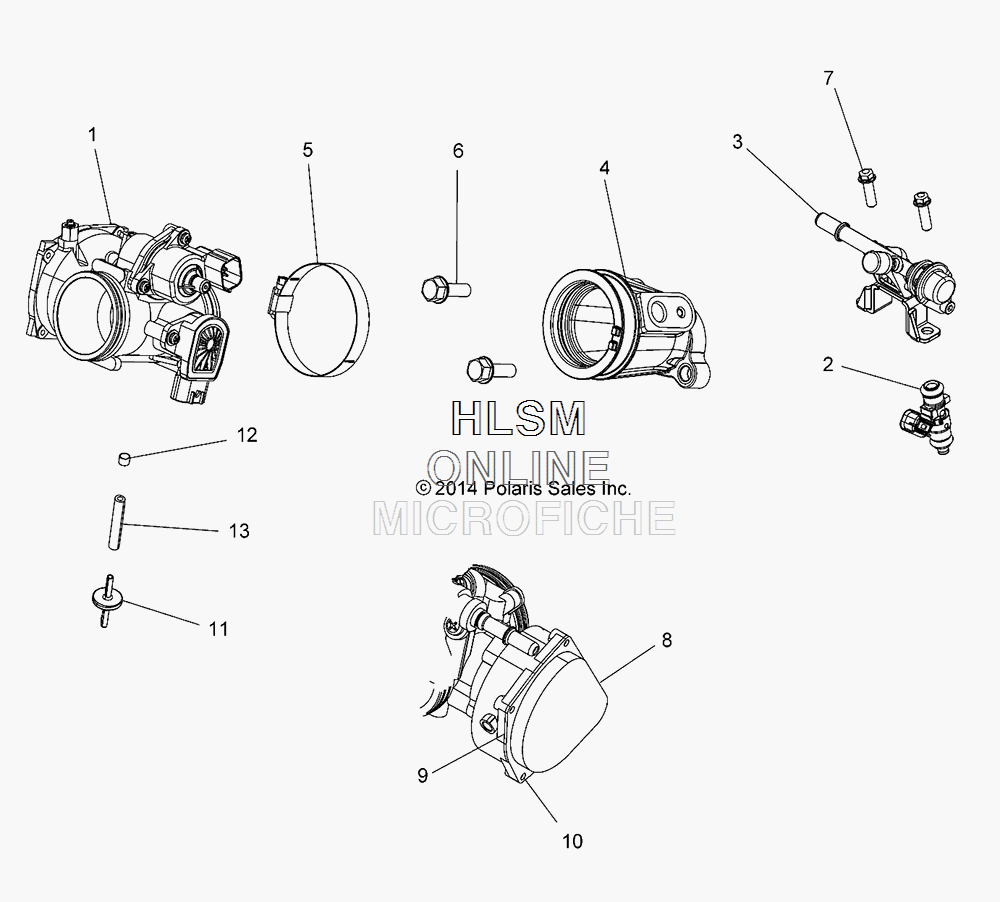

THROTTLE BODY W/ FUEL RAIL для Polaris SPORTSMAN 570 6X6 (SAGE BRUSH GREEN) [A18S6E57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1205009 ASM., THROTTLE BODY
    ASM., THROTTLE BODY
  • 2
    2521068 INJECTOR, FUEL
    INJECTOR, FUEL
  • 3
    2521403 RAIL, FUEL
    RAIL, FUEL
  • 4
    5415524 ADAPTER, THROTTLE BODY
    ADAPTER, THROTTLE BODY
  • 5
    7081623 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    7516734 SCREW
    SCREW
  • 7
    7518576 SCREW
    SCREW
  • 8
    5259059 COVER-THROTTLE BODY
    COVER-THROTTLE BODY
  • 9
    5415104 GASKET-TB HOUSING
    GASKET-TB HOUSING
  • 10
    7519292 SCREW
    SCREW
  • 11
    7052038 CHECK VALVE
    CHECK VALVE
  • 12
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    8450003-55 FUEL LINE, 1/4 ID(1525 CM.)
    FUEL LINE, 1/4 ID(1525 CM.)
