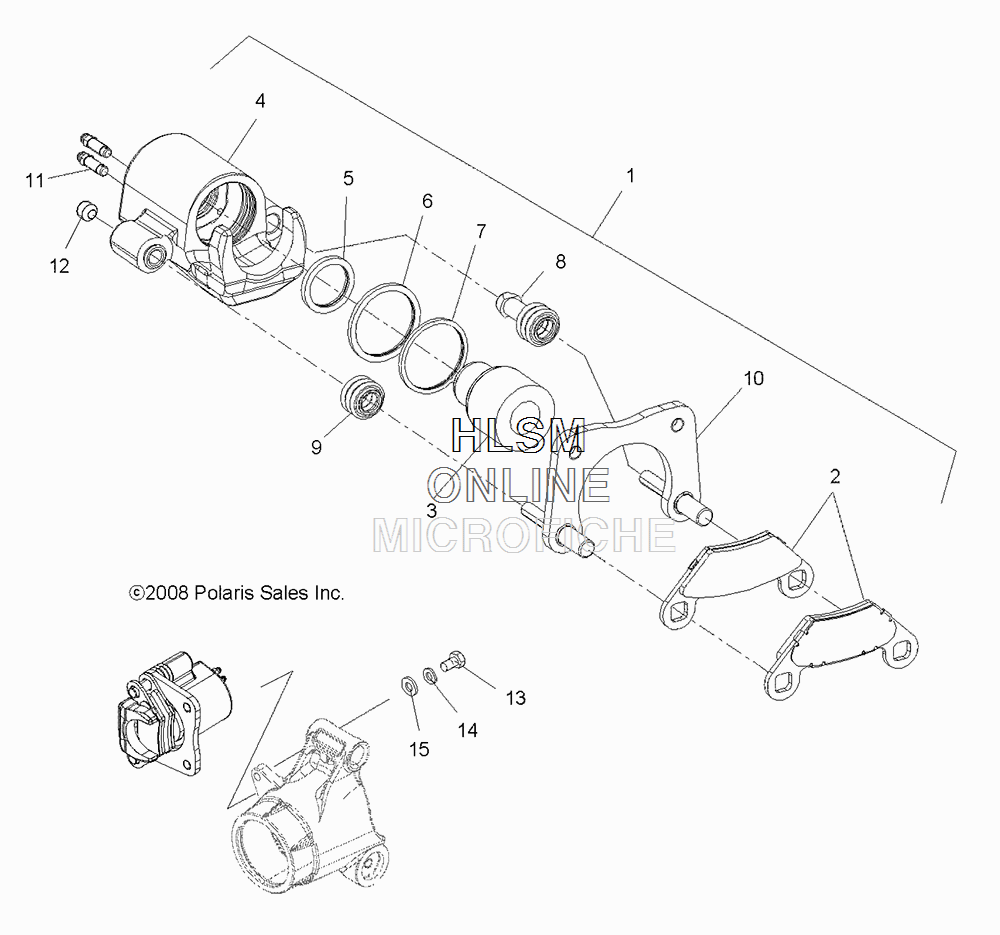

BRAKE - REAR CALIPER для Polaris SPORTSMAN 570 6X6 (SAGE BRUSH GREEN) [A18S6E57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1912408 ASM., CALIPER , 1.5 IN, 1 IN DUAL INPUT, REAR, LEFT HAND (INCL. 1-12)
    ASM., CALIPER , 1.5 IN, 1 IN DUAL INPUT, REAR, LEFT HAND (INCL. 1-12)
  • 2
    2204088 KIT, BRAKE PAD, REAR (INCL. 2 PADS)
    KIT, BRAKE PAD, REAR (INCL. 2 PADS)
  • 3
    5136698 PISTON, BRAKE, STEP
    PISTON, BRAKE, STEP
  • 5
    5410766 RING, SQUARE, MOLDED
    RING, SQUARE, MOLDED
  • 6
    5412010 SEAL, CALIPER, INNER, 1.50 IN
    SEAL, CALIPER, INNER, 1.50 IN
  • 7
    5412011 SEAL, CALIPER, OUTER, 1.50 IN
    SEAL, CALIPER, OUTER, 1.50 IN
  • 8
    5412505 BOOT, PIN BUSHING
    BOOT, PIN BUSHING
  • 9
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 10
    1911416 ASM., CALIPER MOUNT, REAR
    ASM., CALIPER MOUNT, REAR
  • 11
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
  • 12
    7515489 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 13
    7512457 SCREW
    SCREW
  • 14
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 15
    7556188 WASHER, FLAT
    WASHER, FLAT
