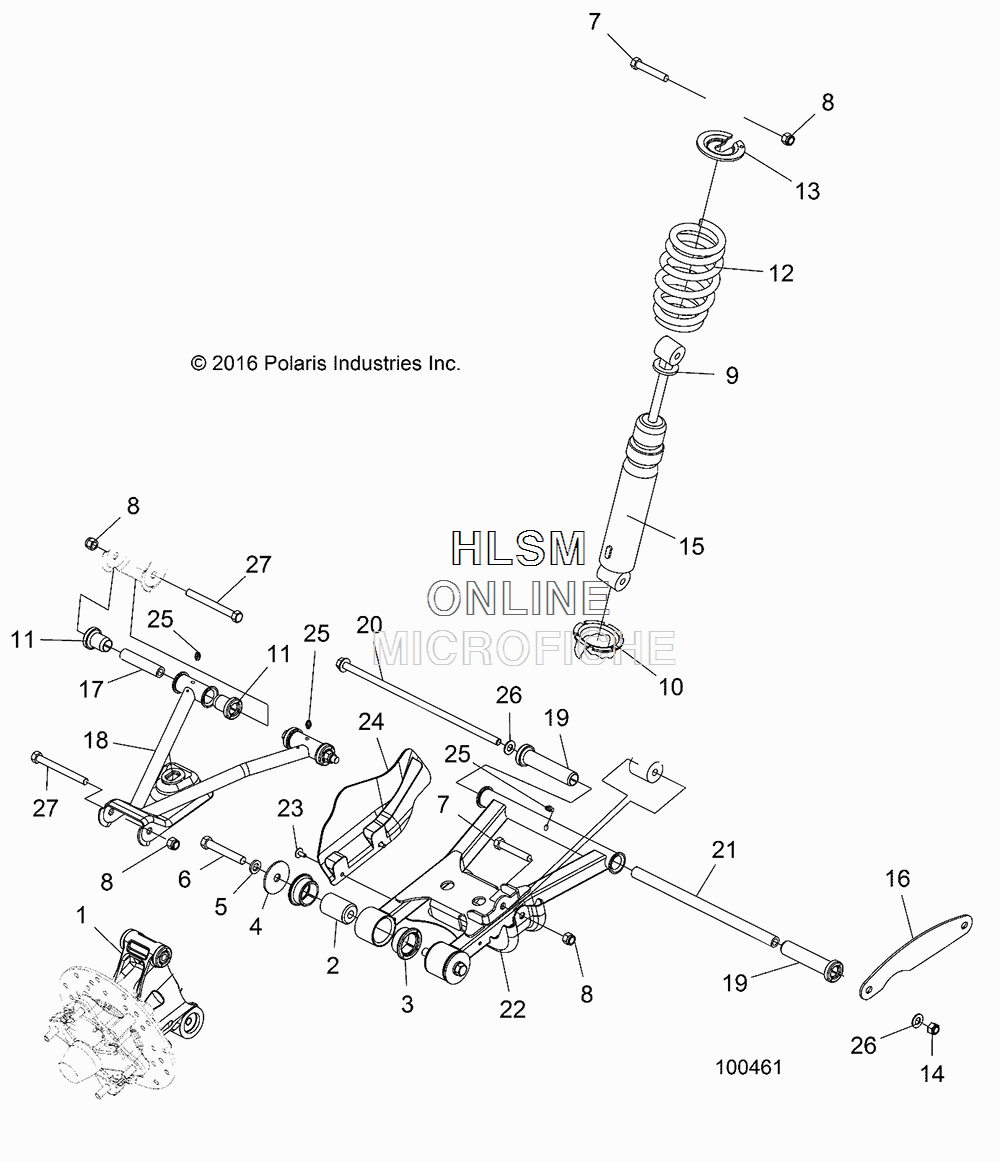

SUSPENSION - REAR для Polaris SPORTSMAN 570 6X6 (SAGE BRUSH GREEN) [A18S6E57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5139363 CARRIER, BEARING, WHEEL, LEFT HAND
    CARRIER, BEARING, WHEEL, LEFT HAND
  • 1
    5137436 CARRIER-BEARING, WHEEL, RIGHT HAND
    CARRIER-BEARING, WHEEL, RIGHT HAND
  • 2
    5632291 BUSHING, BEARING CARRIER
    BUSHING, BEARING CARRIER
  • 3
    5438902 BUSHING, CONTROL, LOWER, BLACK
    BUSHING, CONTROL, LOWER, BLACK
  • 4
    7555740 WASHER, FLAT
    WASHER, FLAT
  • 5
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 6
    7517873 BOLT
    BOLT
  • 7
    7515415 SCREW
    SCREW
  • 8
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 9
    7043451 SHOCK-RR, IRS, 6X6
    SHOCK-RR, IRS, 6X6
  • 10
    5631014 CAM-SPRING ADJUST, 1-3/8
    CAM-SPRING ADJUST, 1-3/8
  • 11
    5438895 BUSHING, A-ARM, SHORT, BLACK
    BUSHING, A-ARM, SHORT, BLACK
  • 12
    7041986-067 SPRING-COMP, 130/165, 13.8LG
    SPRING-COMP, 130/165, 13.8LG
  • 13
    5251753 RETAINER, SPRING
    RETAINER, SPRING
  • 14
    7547344 NUT-3/8-24 HEX LOC, GR8
    NUT-3/8-24 HEX LOC, GR8
  • 15
    5433551 SLEEVE-SHOCK PROTECTOR
    SLEEVE-SHOCK PROTECTOR
  • 16
    5252941-067 STRAP-REAR GEARCASE, 6X6, BLACK
    STRAP-REAR GEARCASE, 6X6, BLACK
  • 17
    5020826 SHAFT, A-ARM, SHORT
    SHAFT, A-ARM, SHORT
  • 18
    1014320-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
    WELD-UPPER CONTROL ARM, LEFT HAND, BLACK
  • 18
    1014321-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
    WELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
  • 19
    5436973 BUSHING, A-ARM, LONG, 102.36MM
    BUSHING, A-ARM, LONG, 102.36MM
  • 20
    7519065 SCR-3/8-24X12.25 FLG HX GR8-Y
    SCR-3/8-24X12.25 FLG HX GR8-Y
  • 21
    5137562 TUBE-PIVOT, .625ODX.385IDX11.12
    TUBE-PIVOT, .625ODX.385IDX11.12
  • 22
    1015888-067 CONTROL, LOWER, BLACK, LEFT HAND
    CONTROL, LOWER, BLACK, LEFT HAND
  • 22
    1015889-067 CONTROL, LOWER, BLACK, RIGHT HAND
    CONTROL, LOWER, BLACK, RIGHT HAND
  • 23
    7512084 SCREW
    SCREW
  • 24
    5435008-070 SHIELD, CV REAR, BLACK, LEFT HAND
    SHIELD, CV REAR, BLACK, LEFT HAND
  • 24
    5435009-070 SHIELD, CV REAR, BLACK, RIGHT HAND
    SHIELD, CV REAR, BLACK, RIGHT HAND
  • 25
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 26
    7556153 WASHER
    WASHER
  • 27
    7515472 BOLT
    BOLT
