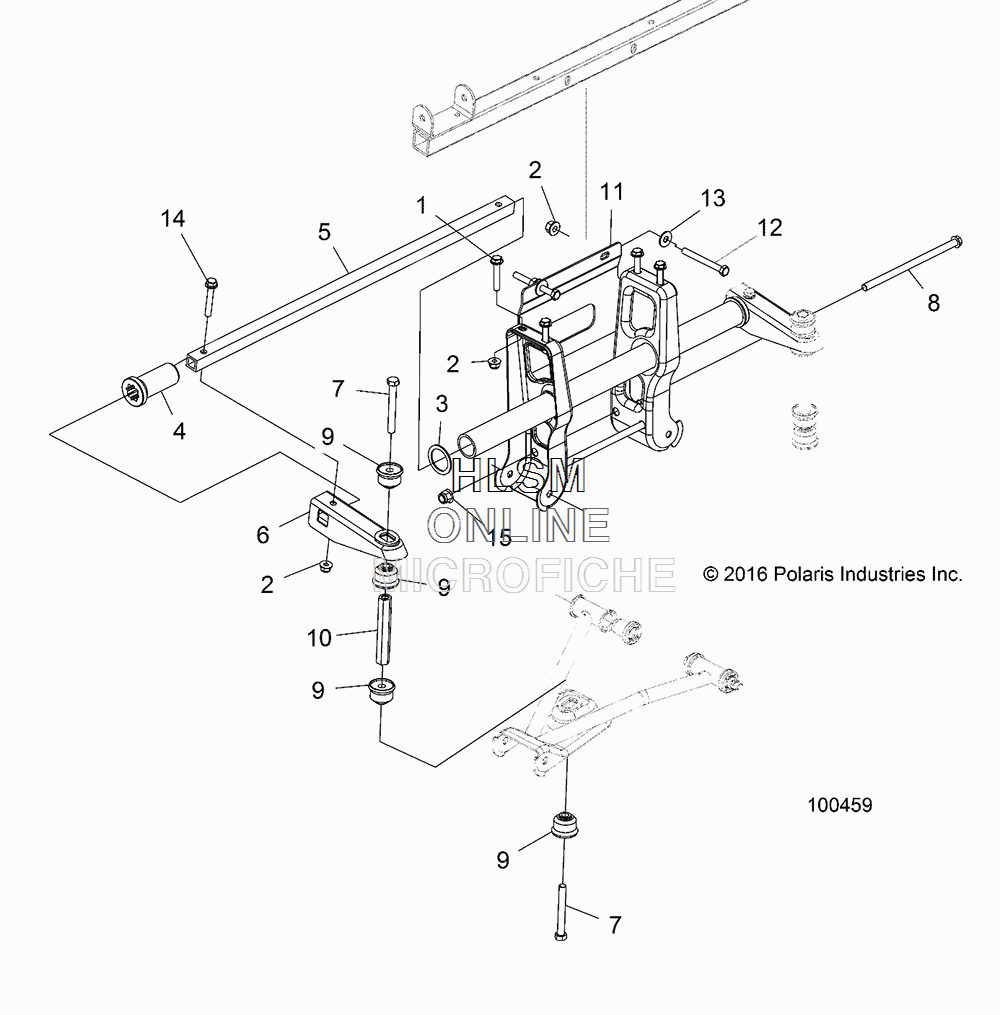

SUSPENSION - TORSION BAR для Polaris SPORTSMAN 570 6X6 (SAGE BRUSH GREEN) [A18S6E57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7518341 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 3
    7555939 WASHER
    WASHER
  • 4
    5438901 BUSHING, STABILIZER TUBE, BLACK
    BUSHING, STABILIZER TUBE, BLACK
  • 5
    5334114-329 BAR, STABILIZER TUBE, BLACK
    BAR, STABILIZER TUBE, BLACK
  • 6
    1543119-067 ARM, STABILIZER BAR, BLACK
    ARM, STABILIZER BAR, BLACK
  • 7
    7517231 SCREW
    SCREW
  • 8
    7518365 SCR-HXFL-3/8-16X7 GR5 ZY3
    SCR-HXFL-3/8-16X7 GR5 ZY3
  • 9
    5414877 BUSHING-WSHR TORBAR, DURO80, ITW
    BUSHING-WSHR TORBAR, DURO80, ITW
  • 10
    5020827 ROD, LINKAGE, STABILIZER
    ROD, LINKAGE, STABILIZER
  • 11
    1542677-067 SUPPORT, STABILIZER, BLACK
    SUPPORT, STABILIZER, BLACK
  • 12
    7515346 SCREW
    SCREW
  • 13
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 14
    7518876 SCREW
    SCREW
  • 15
    7547180 NUT-FLANGED, 3/8-16 NYLON
    NUT-FLANGED, 3/8-16 NYLON
