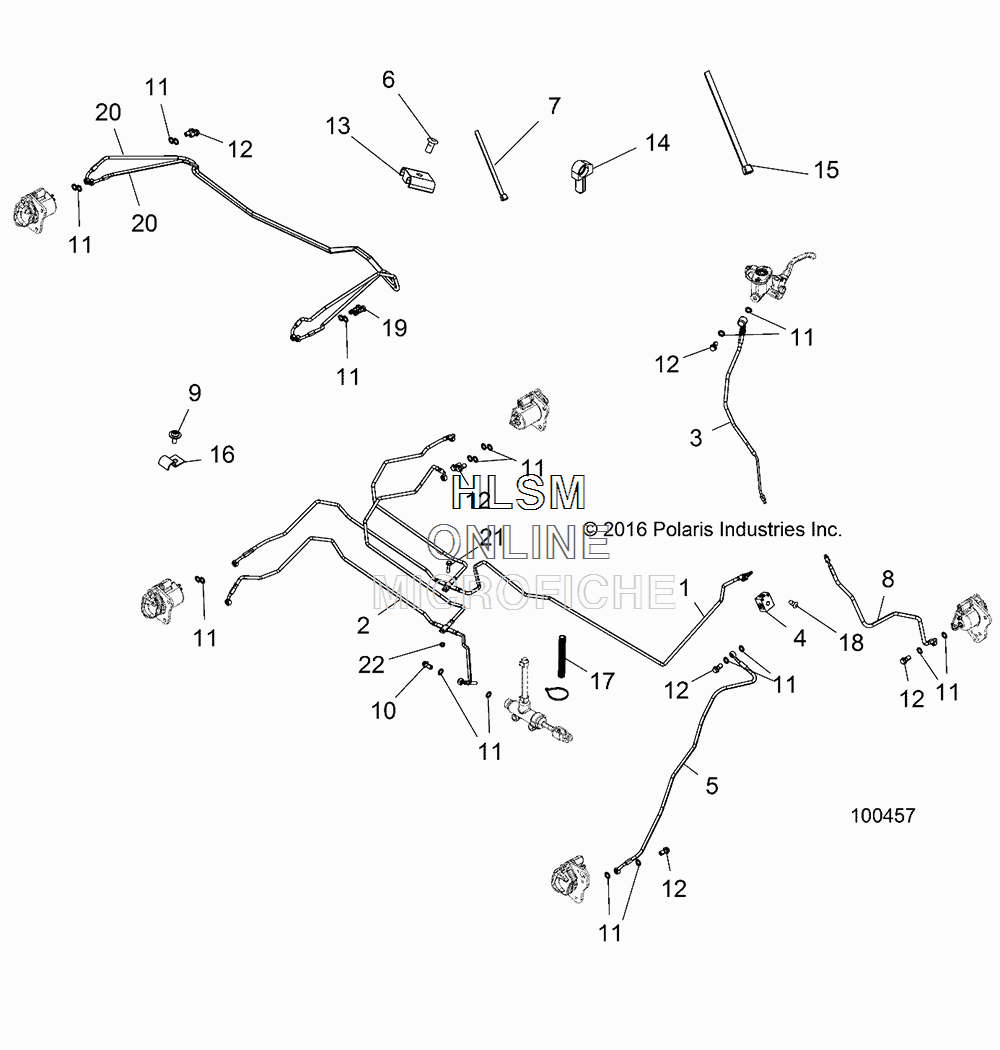

BRAKE LINES для Polaris SPORTSMAN 570 6X6 (SAGE BRUSH GREEN) [A18S6E57B1] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1913041 LINE-BRK, AUX, T, 90F, 70B, 70B, G2
    LINE-BRK, AUX, T, 90F, 70B, 70B, G2
  • 2
    1913034 LINE-BRK, SV, T, 20B, 45B, 45B, G2
    LINE-BRK, SV, T, 20B, 45B, 45B, G2
  • 3
    1913044 LINE-BRK, MCT, 22, 30B, CF1, 0, JF
    LINE-BRK, MCT, 22, 30B, CF1, 0, JF
  • 4
    7052662 FITTING-CROSS, ATV, BRAKE, BANJO
    FITTING-CROSS, ATV, BRAKE, BANJO
  • 5
    1913035 LINE-BRK, FR, 33, 20SB, 70B, 190, G2
    LINE-BRK, FR, 33, 20SB, 70B, 190, G2
  • 6
    7517756 SCREW
    SCREW
  • 7
    7080138 CABLE TIE
    CABLE TIE
  • 8
    1913036 LINE-BRK, FL, 26, OF, 70B, G2
    LINE-BRK, FL, 26, OF, 70B, G2
  • 9
    7512024 SCREW
    SCREW
  • 10
    1910958 BOLT, BANJO
    BOLT, BANJO
  • 11
    5413212 SEAL
    SEAL
  • 12
    1910499 BOLT, BANJO
    BOLT, BANJO
  • 13
    7670126 CLIP, RETAINING, DUAL .250 IN LINE
    CLIP, RETAINING, DUAL .250 IN LINE
  • 14
    7670102 CLIP
    CLIP
  • 15
    7080761 STRAP-PANDUIT, 14 IN
    STRAP-PANDUIT, 14 IN
  • 16
    7081940 CLIP, HALF
    CLIP, HALF
  • 17
    8360052-25 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 18
    7512084 SCREW
    SCREW
  • 19
    1911009 BOLT-BANJO, M10X1.0, 30GRIP
    BOLT-BANJO, M10X1.0, 30GRIP
  • 20
    1913038 LINE-BRK, RR, 58, 70B, 70B, 345, G2
    LINE-BRK, RR, 58, 70B, 70B, 345, G2
  • 21
    7515153 SCR-HXFL-1/4-20X1.125 GR5 ZY3
    SCR-HXFL-1/4-20X1.125 GR5 ZY3
  • 22
    7542105 NUT-1/4-20 HEX-Y
    NUT-1/4-20 HEX-Y
