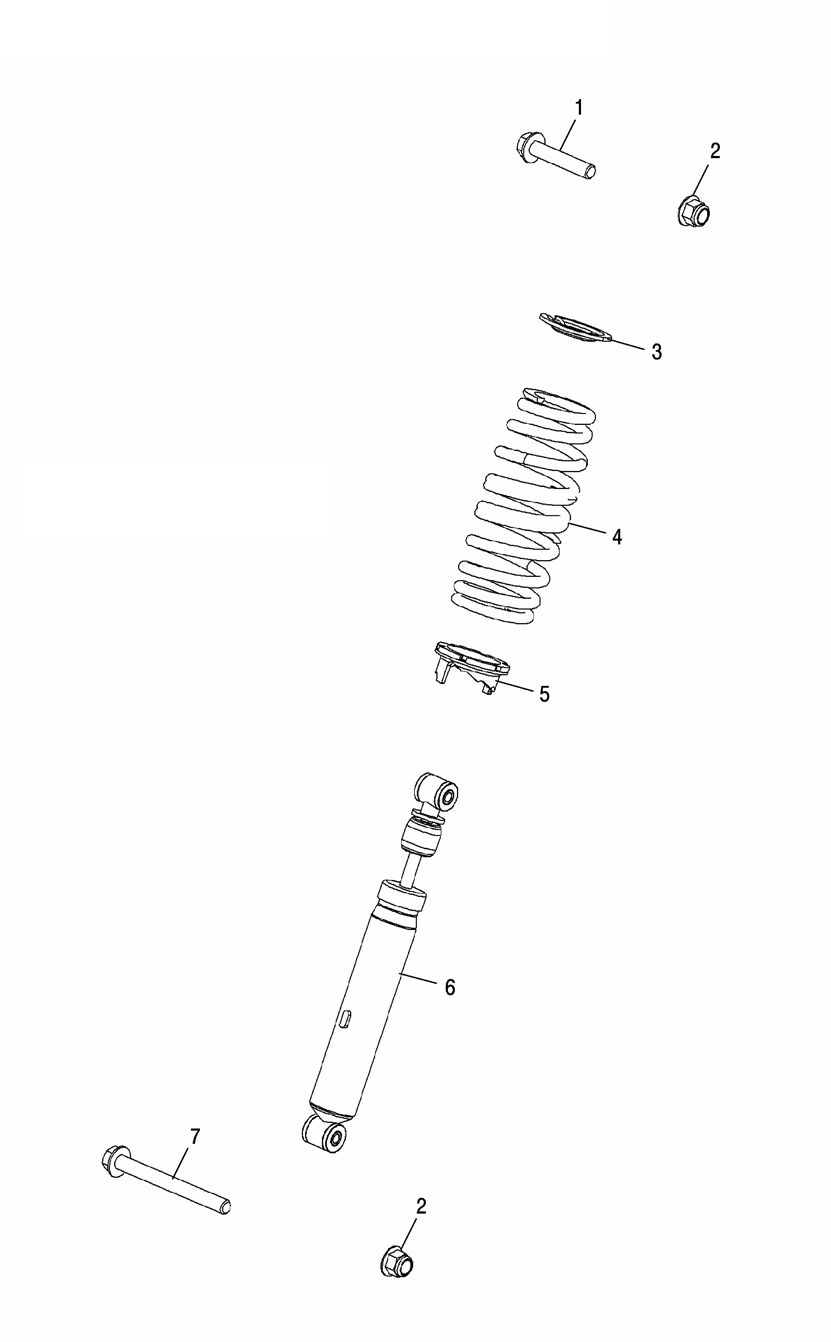

SUSPENSION - REAR SHOCK для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17518474 BOLT-M10X1.5X55, HX HD FLGBOLT-M10X1.5X55, HX HD FLG
-
27547313 NUT-M10X1.5, HXFLG, NYLON INSNUT-M10X1.5, HXFLG, NYLON INS
-
35251753 RETAINER-SPRING, STEELRETAINER-SPRING, STEEL
-
47043144-067 SPRING-COMP, 140#/IN, BLACKSPRING-COMP, 140#/IN, BLACK
-
55630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
67043271 SHOCK-IRS, 409.9 EXTSHOCK-IRS, 409.9 EXT
-
77518468 BOLT-M10X1.5X95, HX HD FLGBOLT-M10X1.5X95, HX HD FLG
