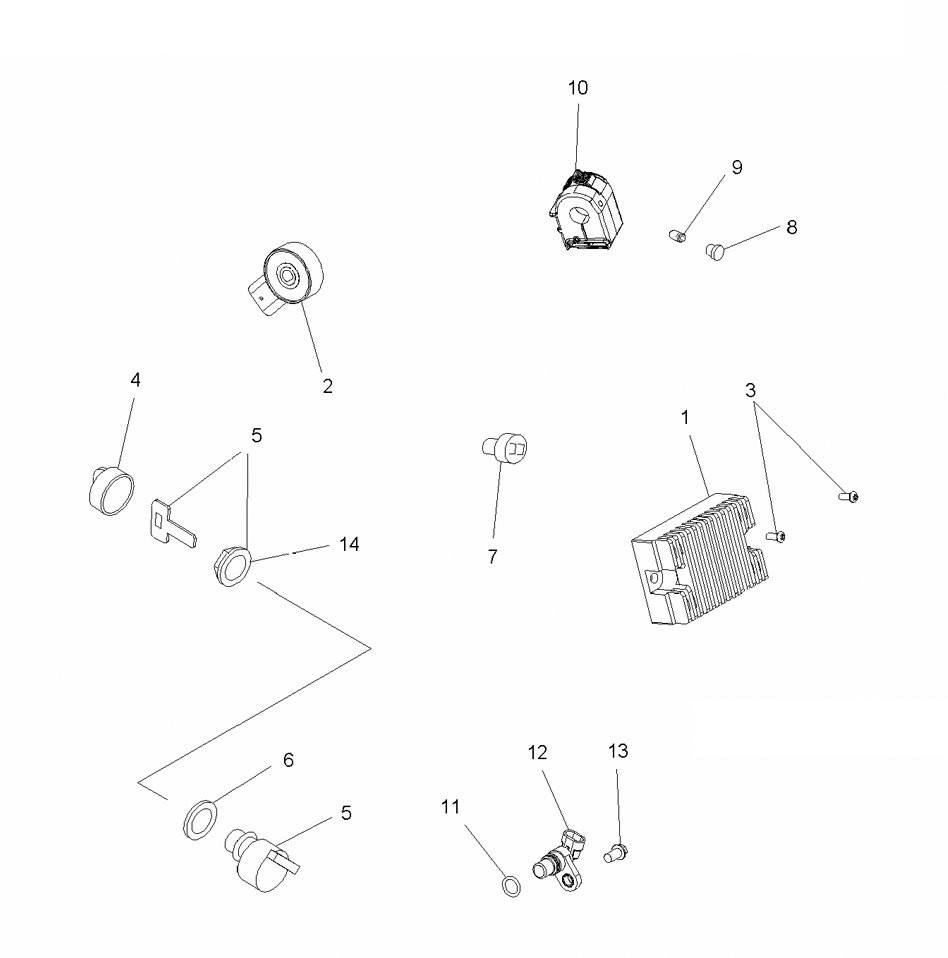

CONTROL MODULES - SWITCHES/SENSORS для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
14011182 RECT-REG, SERIES, 3PH, 20ARECT-REG, SERIES, 3PH, 20A
-
23233835 SWITCH-ROTARY, 6 PINSWITCH-ROTARY, 6 PIN
-
37512024 SCREWSCREW
-
45433534 KEY COVER-KEYSWITCHKEY COVER-KEYSWITCH
-
54012165 SWITCH-KEY, 3 POS, MT SLV [INCL. 4,14] (SEE NOTE)SWITCH-KEY, 3 POS, MT SLV [INCL. 4,14] (SEE NOTE)
-
67555735 WASHER, WAVEWASHER, WAVE
-
74110164 SWITCH, STOPLIGHTSWITCH, STOPLIGHT
-
85432952 PLUG, HOLEPLUG, HOLE
-
97517625 SCREW, SETSCREW, SET
-
104011655 SWITCH-HANDLEBAR, LEFT HAND, ON/OFF, SPDSWITCH-HANDLEBAR, LEFT HAND, ON/OFF, SPD
-
113234302 O-RING, -113O-RING, -113
-
123234299 SENSOR-SPEED, TRANSSENSOR-SPEED, TRANS
-
133234311 SCREW, HEX HEAD, M6 X 1 X 16SCREW, HEX HEAD, M6 X 1 X 16
-
145433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
