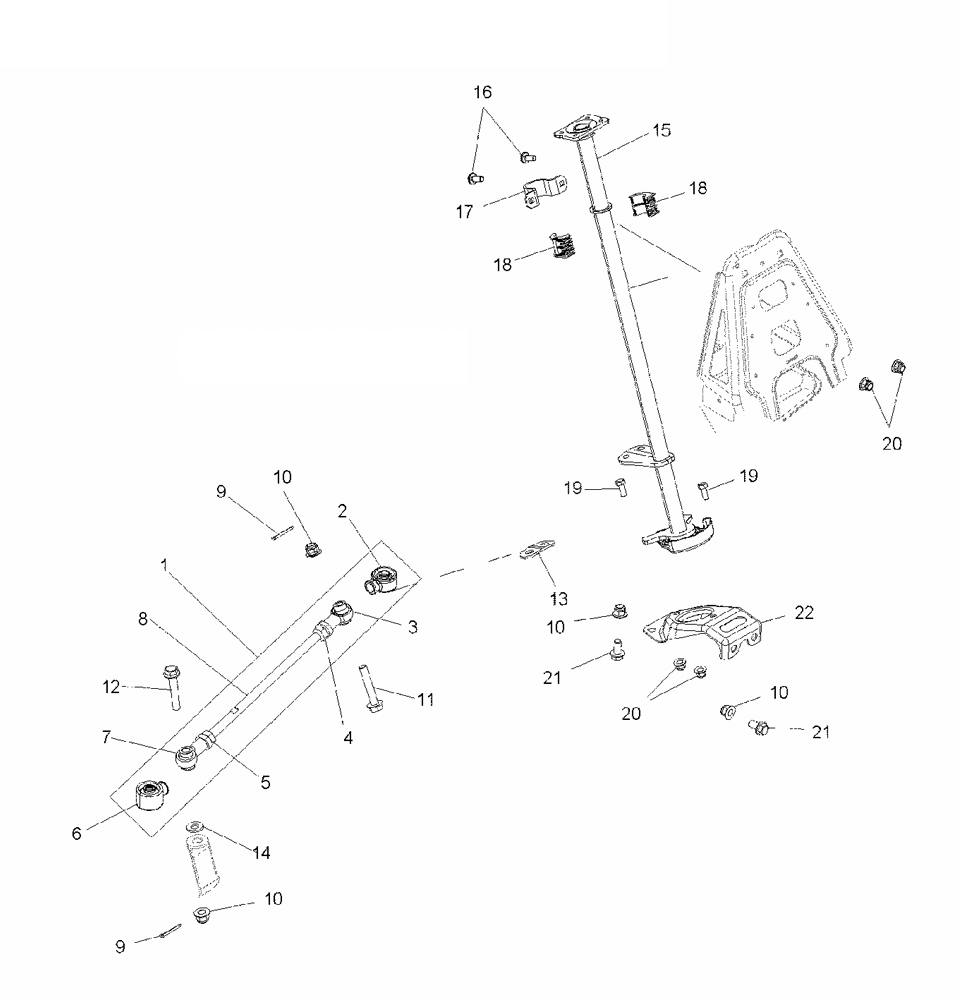

STEERING POST для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
11822955 ASM-TIE ROD, 339.2 LONG [INCL 2-8]ASM-TIE ROD, 339.2 LONG [INCL 2-8]
-
25411291 BOOT-SEAL,ROD END, 1/2 INBOOT-SEAL,ROD END, 1/2 IN
-
37061134 ROD-END, 10MM, M12X1.5, RIGHT HANDROD-END, 10MM, M12X1.5, RIGHT HAND
-
47547358 NUT-M12X1.5, RIGHT HAND, FULL JAMNUT-M12X1.5, RIGHT HAND, FULL JAM
-
57547357 NUT-NUT12X1.5, LEFT HAND, FULL JAMNUT-NUT12X1.5, LEFT HAND, FULL JAM
-
65411920 BOOT-SEAL, ROD END, 10MMBOOT-SEAL, ROD END, 10MM
-
77061135 ROD-END, 10MM, M12X1.5, LEFT HANDROD-END, 10MM, M12X1.5, LEFT HAND
-
85134603 ROD-TIE, 1/2-M12 X 1.5ROD-TIE, 1/2-M12 X 1.5
-
97661203 PIN, COTTERPIN, COTTER
-
107547313 NUT-M10X1.5, HXFLG, NYLON INSNUT-M10X1.5, HXFLG, NYLON INS
-
117518605 BOLT-M10X1.5X55, HX HD FLGBOLT-M10X1.5X55, HX HD FLG
-
127518682 BOLT-M10X1.5X60, HXHDFLGBOLT-M10X1.5X60, HXHDFLG
-
135248353 RETAINER-TIE RODRETAINER-TIE ROD
-
147556099 WASHERWASHER
-
151015961 POST, STEERINGPOST, STEERING
-
167518479 BOLT-M8X1.25X20, CARRIAGEBOLT-M8X1.25X20, CARRIAGE
-
175246732 BRKT-UPPER BUSHING-BRKT-UPPER BUSHING-
-
185433866 BUSHING-UPPER, 1 INBUSHING-UPPER, 1 IN
-
197518702 BOLT-M8X1.25X20, HXHDFLGBOLT-M8X1.25X20, HXHDFLG
-
207547317 NUT-M8X1.25, HXFLG, NYLON INSNUT-M8X1.25, HXFLG, NYLON INS
-
217518700 BOLT-M10X1.5X20, HXHDFLGBOLT-M10X1.5X20, HXHDFLG
-
225249419-067 SUPPORT-STEERING, LOWER, BLACKSUPPORT-STEERING, LOWER, BLACK
