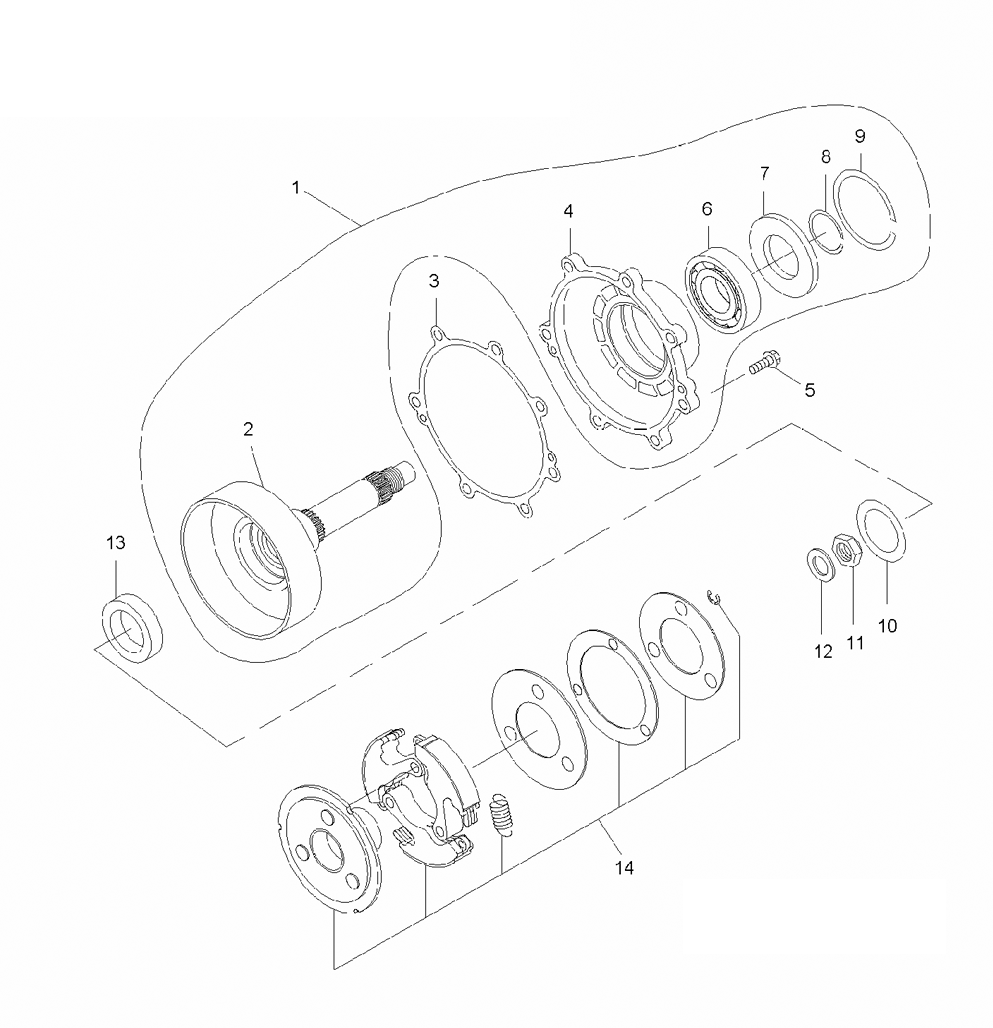

GEARCASE - CLUTCH для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3089981 ASM-CLUTCH SHAFT [INCL. 2,4,6-9]
    ASM-CLUTCH SHAFT [INCL. 2,4,6-9]
  • 2
    3089874 SHAFT, CVT DRIVE
    SHAFT, CVT DRIVE
  • 3
    3089871 GASKET-CLUTCH COVER
    GASKET-CLUTCH COVER
  • 4
    3089982 COVER-CLUTCH COMPLETE [INCL. 6,9]
    COVER-CLUTCH COMPLETE [INCL. 6,9]
  • 5
    3089988 BOLT
    BOLT
  • 6
    3089866 BEARING-BALL
    BEARING-BALL
  • 7
    3089867 SEAL-OIL
    SEAL-OIL
  • 8
    3089868 CLIP
    CLIP
  • 9
    3089869 CLIP
    CLIP
  • 10
    3089916 SPACER
    SPACER
  • 11
    3089876 NUT-LOCK
    NUT-LOCK
  • 12
    3089877 WASHER-LOCK
    WASHER-LOCK
  • 13
    3089875 CLUTCH-ONE WAY
    CLUTCH-ONE WAY
  • 14
    3089979 CLUTCH
    CLUTCH
