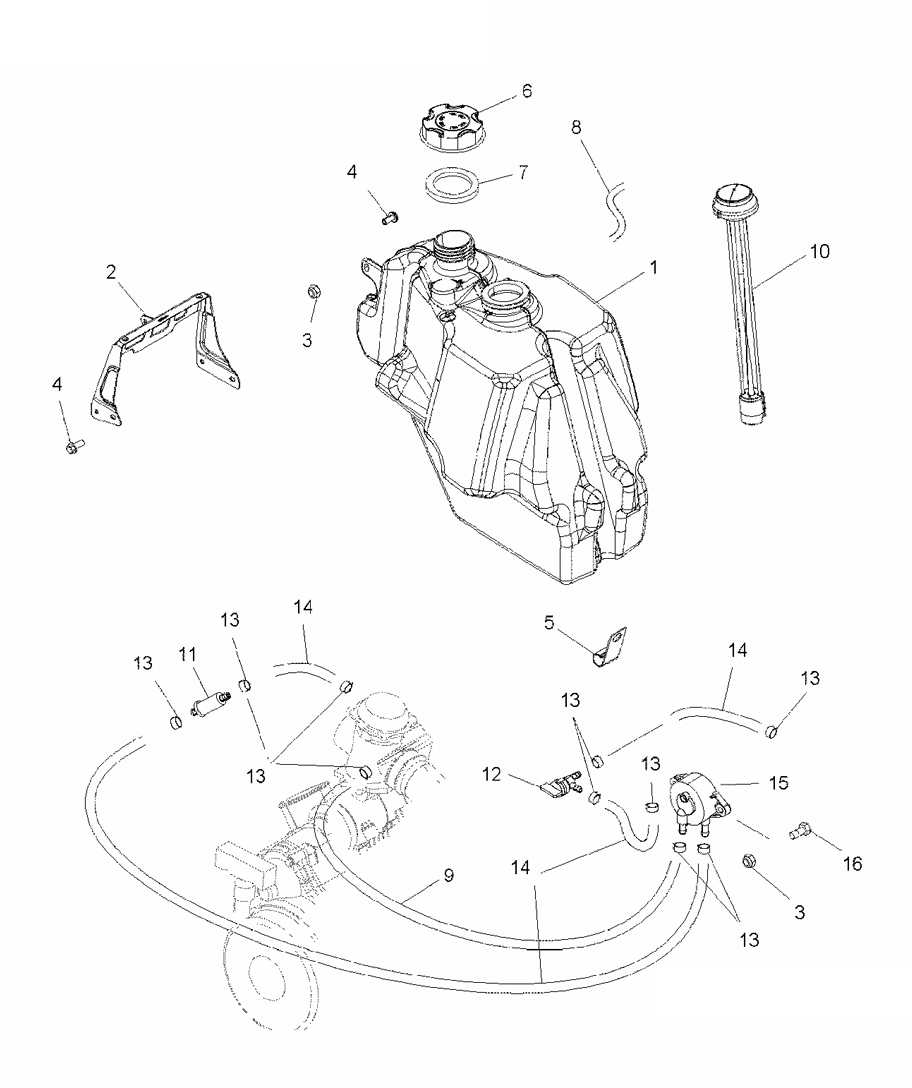

FUEL TANK для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2520804 ASM-TANK, FUEL, 7 LAYER, GAUGE [INCL. 10]
    ASM-TANK, FUEL, 7 LAYER, GAUGE [INCL. 10]
  • 2
    1016190-067 WELD-FUEL TANK BRACKET, E-COAT
    WELD-FUEL TANK BRACKET, E-COAT
  • 3
    7547339 NUT-M6X1.0, FLG-NYLOC-OLIVE D
    NUT-M6X1.0, FLG-NYLOC-OLIVE D
  • 4
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 5
    7080884 CLIP, J
    CLIP, J
  • 6
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 7
    5812123 GASKET
    GASKET
  • 8
    8360009-600 LINE, FUEL, 1/8 ID, 600 CM.
    LINE, FUEL, 1/8 ID, 600 CM.
  • 9
    8450040-600 LINE FUEL, 1/4 ID (600 CM.)
    LINE FUEL, 1/4 ID (600 CM.)
  • 10
    3280503 GAUGE-FUEL,REMOTE
    GAUGE-FUEL,REMOTE
  • 11
    2530009 FILTER, SMALL, IN-LINE,
    FILTER, SMALL, IN-LINE,
  • 12
    7052249 VALVE-FUEL, PLASTIC 90°, 1/4HOSE
    VALVE-FUEL, PLASTIC 90°, 1/4HOSE
  • 13
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    8450117-250 FUEL HOSE-250 CM
    FUEL HOSE-250 CM
  • 15
    3089760 PUMP, FUEL
    PUMP, FUEL
  • 16
    7518533 BOLT-M6X1.0X20, HXHD, FLG, BLACK
    BOLT-M6X1.0X20, HXHD, FLG, BLACK
