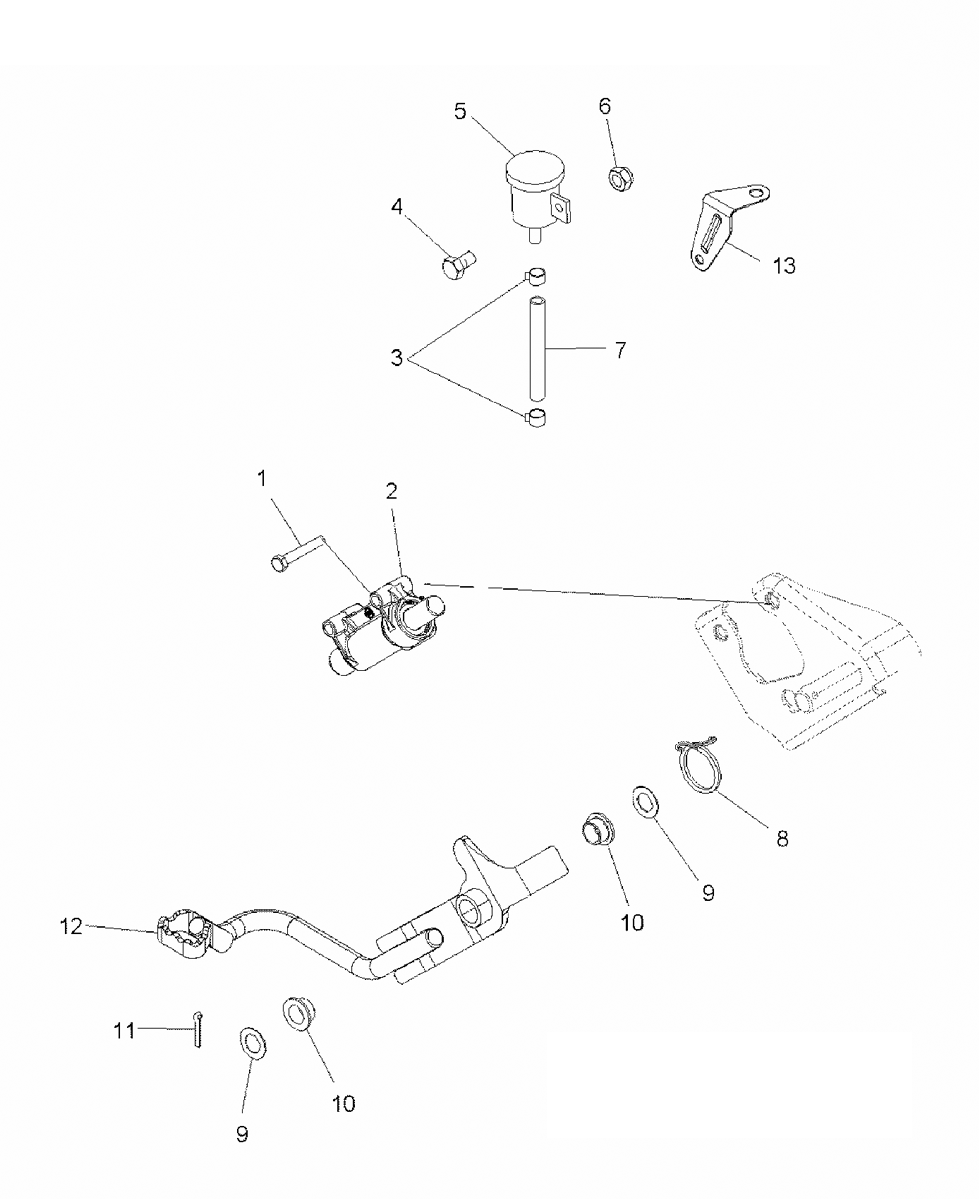

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris HAWKEYE 2X4 (LB27AA) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7518470 BOLT-M6X1.0X40 HXHD, FLG, W/PATC
    BOLT-M6X1.0X40 HXHD, FLG, W/PATC
  • 2
    2010258 KIT-M/C REAR,DIRMC 5/8"
    KIT-M/C REAR,DIRMC 5/8"
  • 3
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    7518533 BOLT-M6X1.0X20, HXHD, FLG, BLACK
    BOLT-M6X1.0X20, HXHD, FLG, BLACK
  • 5
    1930854 RESERVOIR ASM, R.BRAKE
    RESERVOIR ASM, R.BRAKE
  • 6
    7547339 NUT-M6X1.0, FLG-NYLOC-OLIVE D
    NUT-M6X1.0, FLG-NYLOC-OLIVE D
  • 7
    1910969 HOSE-RESERVOIR, 6.35 ID, 20 CM
    HOSE-RESERVOIR, 6.35 ID, 20 CM
  • 8
    7043126 SPRING-TORSION, BRAKE
    SPRING-TORSION, BRAKE
  • 9
    7555919 WASHER
    WASHER
  • 10
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 11
    7661401 PIN, COTTER
    PIN, COTTER
  • 12
    1015048-067 WELD-BRAKE PEDAL, BLACK
    WELD-BRAKE PEDAL, BLACK
  • 13
    5252419 BRACKET
    BRACKET
