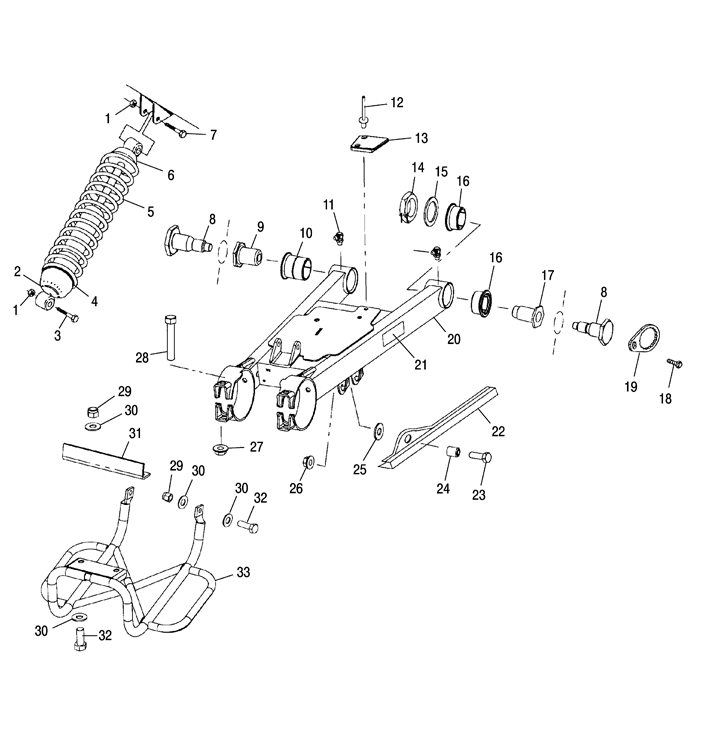

SUSPENSION - SWING ARM W/ SHOCK MOUNTING для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27041962 SHOCK MID AXLESHOCK MID AXLE
-
37515438 BOLTBOLT
-
47556142 WASHER, 2.085X2.88X.135WASHER, 2.085X2.88X.135
-
57041987-067 SPRING COMP, 100/160, 13.5LG (BLACK)SPRING COMP, 100/160, 13.5LG (BLACK)
-
65241147 RETAINER, SHOCKRETAINER, SHOCK
-
77515415 SCREWSCREW
-
85134321 BOLT PIVOTBOLT PIVOT
-
95133166 BUSHING PIVOT (LEFT)BUSHING PIVOT (LEFT)
-
105434545 BUSHING (LEFT), HYBRID (BLACK)BUSHING (LEFT), HYBRID (BLACK)
-
117080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
127661046 RIVET POP, 3/16 (.376 .500)RIVET POP, 3/16 (.376 .500)
-
135432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
147547082 NUT, HEX, JAMNUT, HEX, JAM
-
157556035 WASHER, FLATWASHER, FLAT
-
165434546 BUSHING (RIGHT), HYBRID (BLACK)BUSHING (RIGHT), HYBRID (BLACK)
-
175133167 BUSHING PIVOT (RIGHT)BUSHING PIVOT (RIGHT)
-
187515399 SCREWSCREW
-
195247488 BRKT BOLT LOCKBRKT BOLT LOCK
-
201541583 SWING, ARM, ASSY.HYBRID, 16.85 (INCLUDES 10, 11, 16)SWING, ARM, ASSY.HYBRID, 16.85 (INCLUDES 10, 11, 16)
-
217078572 DECAL ''CHAIN FREEPLAY'', HYBRIDDECAL ''CHAIN FREEPLAY'', HYBRID
-
225432854 GUARD, CHAINGUARD, CHAIN
-
237515304 SCREW FLANGEDSCREW FLANGED
-
245332828 BUSHINGBUSHING
-
257558402 WASHER, FLATWASHER, FLAT
-
267542343 NUT, FLANGENUT, FLANGE
-
277542522 NUT, FLANGENUT, FLANGE
-
287512576 BOLTBOLT
-
297542324 NUT, NYLOKNUT, NYLOK
-
307558402 WASHER, FLATWASHER, FLAT
-
315222221-067 MOUNT ROCK GUARD BRKT (BLACK)MOUNT ROCK GUARD BRKT (BLACK)
-
327512325 BOLTBOLT
-
331013328-067 GUARD, SWING ARM (BLACK).GUARD, SWING ARM (BLACK).
