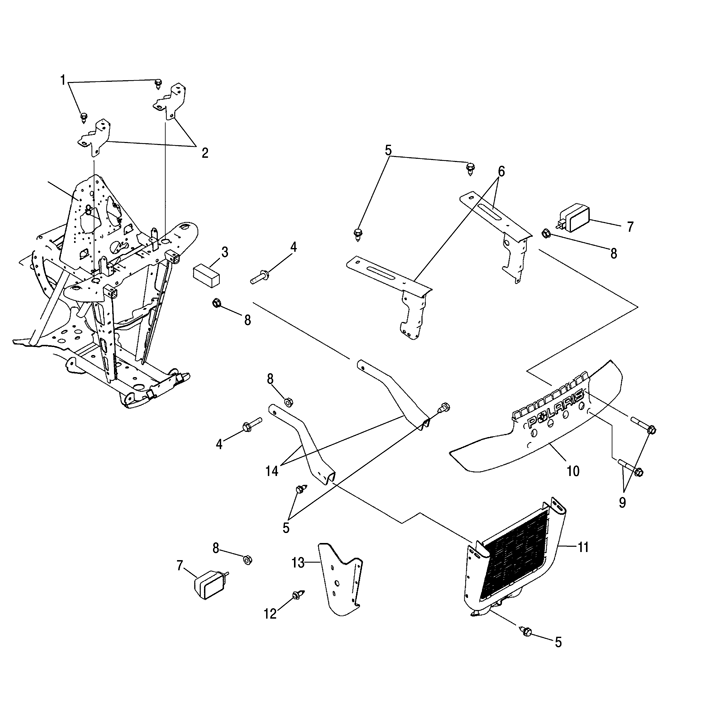

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
21013744-067 WELD SUPPORT RACK, FRONT (LEFT) (BLACK)WELD SUPPORT RACK, FRONT (LEFT) (BLACK)
-
21013746-067 WELD SUPPORT, RACK, FRONT (RIGHT) (BLACK)WELD SUPPORT, RACK, FRONT (RIGHT) (BLACK)
-
35810467 PLUG, FRAMEPLUG, FRAME
-
47518341 BOLT 5/16 18X1 3/4 HXFLNG GR5BOLT 5/16 18X1 3/4 HXFLNG GR5
-
57515399 SCREW *SCREW *
-
61014099-067 WELD RACK MOUNT (LEFT) (BLACK)WELD RACK MOUNT (LEFT) (BLACK)
-
61014101-067 WELD RACK MOUNT (RIGHT) (BLACK)WELD RACK MOUNT (RIGHT) (BLACK)
-
72431014 ASSY., HEADLIGHT, SIDE MOUNT (LEFT)ASSY., HEADLIGHT, SIDE MOUNT (LEFT)
-
72431015 ASSY., HEADLIGHT, SIDE MOUNT (RIGHT)ASSY., HEADLIGHT, SIDE MOUNT (RIGHT)
-
74030059 BULB, H/L, 27W.HOBBSBULB, H/L, 27W.HOBBS
-
87542343 NUT, FLANGENUT, FLANGE
-
97517977 BOLT 5/16 18X2.25 FLG TAP/R YBOLT 5/16 18X2.25 FLG TAP/R Y
-
105432155-070 BUMPER (BLACK)BUMPER (BLACK)
-
111013772-067 WELD BRUSH GUARD (BLACK)WELD BRUSH GUARD (BLACK)
-
127661855 RIVET TUFLOK, .315 .325X.787 (50RIVET TUFLOK, .315 .325X.787 (50
-
135433923 SHIELD RADIATOR, SIDE (LEFT)SHIELD RADIATOR, SIDE (LEFT)
-
135433924 SHIELD RADIATOR, SIDE (RIGHT)SHIELD RADIATOR, SIDE (RIGHT)
-
145244729-067 EXTENSION FRAME (LEFT) (BLACK)EXTENSION FRAME (LEFT) (BLACK)
-
145244730-067 EXTENSION FRAME (RIGHT) (BLACK)EXTENSION FRAME (RIGHT) (BLACK)
