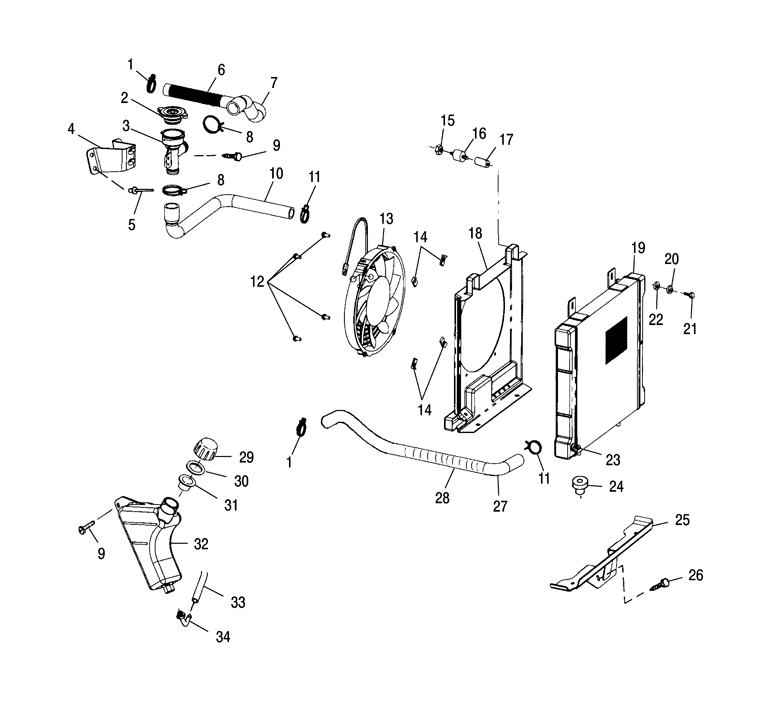

COOLING SYSTEM для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7080614 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    1240044 CAP PRESSURE, 13 PSI
    CAP PRESSURE, 13 PSI
  • 3
    5433364 FILLER REMOTE COOLANT
    FILLER REMOTE COOLANT
  • 4
    5243505 BRKT REMOTE COOLANT FILL PLTD
    BRKT REMOTE COOLANT FILL PLTD
  • 5
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 6
    5433948 FLEXGUARD PLASTIC GUARD
    FLEXGUARD PLASTIC GUARD
  • 7
    5411811 HOSE, ENGINE, UPPER
    HOSE, ENGINE, UPPER
  • 8
    7080827 CLAMP ROTO SPRING 1''
    CLAMP ROTO SPRING 1''
  • 9
    7512084 SCREW
    SCREW
  • 10
    5411632 HOSE, FILLER NECK
    HOSE, FILLER NECK
  • 11
    7080826 CLAMP ROTO CLIP
    CLAMP ROTO CLIP
  • 12
    7517659 SCREW
    SCREW
  • 13
    2410430 FAN AND MOTOR, SPAL ASSY
    FAN AND MOTOR, SPAL ASSY
  • 14
    7670111 CLIP, U
    CLIP, U
  • 15
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 16
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 17
    5020572 SPACER, MOUNT
    SPACER, MOUNT
  • 18
    5433059 SHROUD FAN
    SHROUD FAN
  • 19
    1240178 RADIATOR
    RADIATOR
  • 20
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 21
    7512240 BOLT
    BOLT
  • 22
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 23
    7052296 VALVE PLASTIC DRAIN
    VALVE PLASTIC DRAIN
  • 23
    5411633 VALVE PLASTIC DRAIN
    VALVE PLASTIC DRAIN
  • 24
    5410584 BUSHING MOUNT, LOWER RADIATOR
    BUSHING MOUNT, LOWER RADIATOR
  • 25
    5243503-067 BRKT, RADIATOR, LOWER (BLACK)
    BRKT, RADIATOR, LOWER (BLACK)
  • 26
    7512232 BOLT
    BOLT
  • 27
    5411694 HOSE, LOWER ENGINE
    HOSE, LOWER ENGINE
  • 28
    5521511 GUARD HOSE, 12''
    GUARD HOSE, 12''
  • 29
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 30
    5810279 GASKET
    GASKET
  • 31
    5433774 CAP, PLUG9X, FLEX TEMP (GREEN)
    CAP, PLUG9X, FLEX TEMP (GREEN)
  • 32
    5433410 TANK, SURGE
    TANK, SURGE
  • 33
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 34
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
