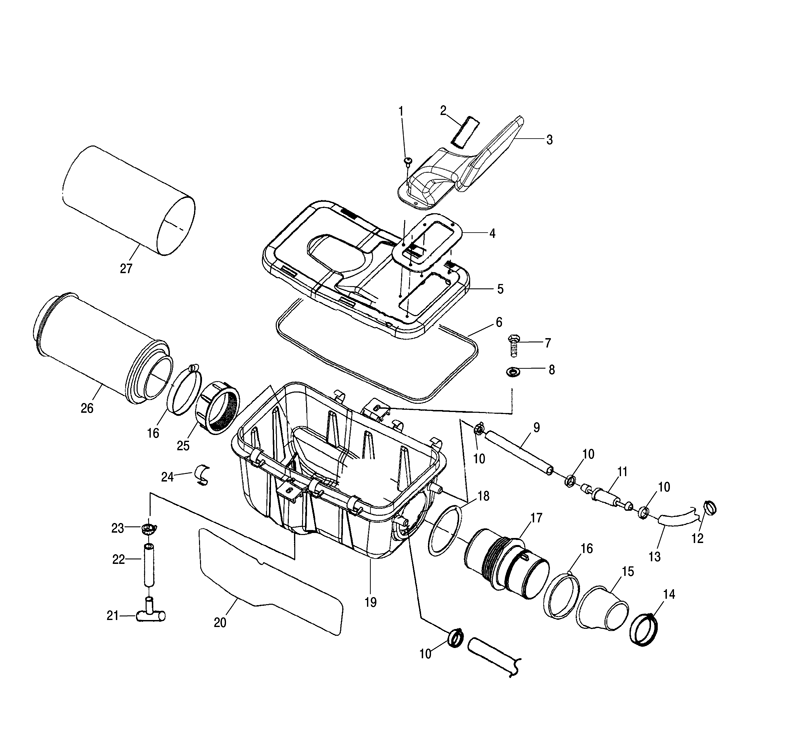

AIR BOX ASSY. для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7517317 SCREW
    SCREW
  • 2
    5810455 PAD
    PAD
  • 3
    5433395 DUCT, INLET
    DUCT, INLET
  • 4
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 5
    5432868 COVER, AIRBOX
    COVER, AIRBOX
  • 6
    5811482 SEAL AIRBOX COVER (IF BUILT BEFORE 4/02/07)
    SEAL AIRBOX COVER (IF BUILT BEFORE 4/02/07)
  • 6
    5812829 SEAL AIRBOX COVER (IF BUILT AFTER 4/02/07)
    SEAL AIRBOX COVER (IF BUILT AFTER 4/02/07)
  • 7
    7515179 SCREW
    SCREW
  • 8
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 9
    8450073-600 LINE, BREATHER, 3/8 ID.
    LINE, BREATHER, 3/8 ID.
  • 10
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    2530029 FILTER, BREATHER, IN LINE
    FILTER, BREATHER, IN LINE
  • 12
    7080694 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 13
    5411921 HOSE BREATHER, NITRILE
    HOSE BREATHER, NITRILE
  • 14
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 15
    5411540 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 16
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 17
    5432473 DUCT, CARBURETOR, INLET
    DUCT, CARBURETOR, INLET
  • 18
    5830128 GASKET, CARBURETOR INLET DUCT
    GASKET, CARBURETOR INLET DUCT
  • 19
    5433387 BOX, AIR
    BOX, AIR
  • 20
    5813042 FOIL AIRBOX, 10.75 X 5.60
    FOIL AIRBOX, 10.75 X 5.60
  • 21
    5432377 PLUG, TRAP (IF BUILT BEFORE 9/04/06)
    PLUG, TRAP (IF BUILT BEFORE 9/04/06)
  • 21
    5435299 PLUG, TRAP (IF BUILT AFTER 9/04/06)
    PLUG, TRAP (IF BUILT AFTER 9/04/06)
  • 22
    8450059-150 FUEL LINE
    FUEL LINE
  • 23
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    5242044 CLIP
    CLIP
  • 25
    5432601 COLLAR, CARBURETOR, INLET
    COLLAR, CARBURETOR, INLET
  • 26
    7080595 FILTER, AIR
    FILTER, AIR
  • 27
    5811633 FILTER, PRECLEAN, SLEEVE
    FILTER, PRECLEAN, SLEEVE
