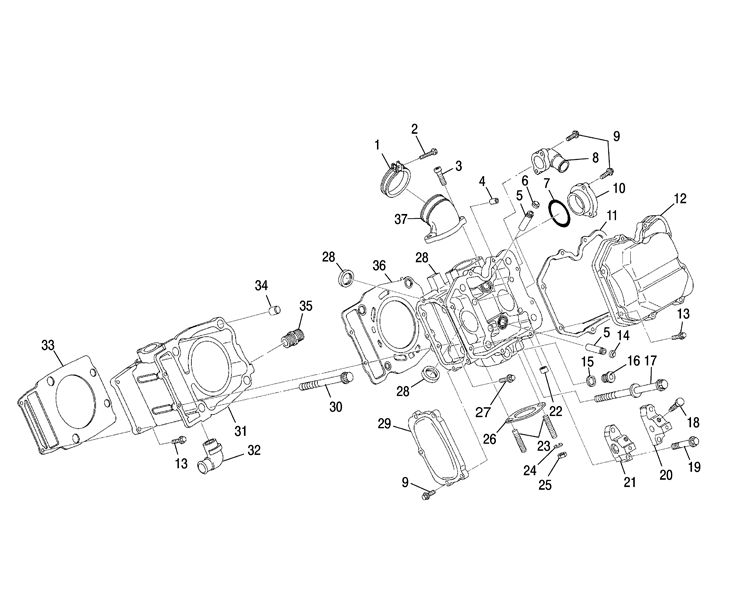

CYLINDER для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
13083166 ADAPTER BAND ASSY (INCLUDES 2)ADAPTER BAND ASSY (INCLUDES 2)
-
23081497 SCREW, PAN HEADSCREW, PAN HEAD
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 KNOCK, PIPEKNOCK, PIPE
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084867 O RINGO RING
-
83084870 ADAPTER WATER OUTADAPTER WATER OUT
-
93084877 BOLT, FLANGEBOLT, FLANGE
-
103084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
113085074 GASKET (ROCKER COVER)GASKET (ROCKER COVER)
-
123085073 COVER, ROCKERCOVER, ROCKER
-
133084874 BOLT, FLANGEBOLT, FLANGE
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153084861 GASKETGASKET
-
163084860 PLUGPLUG
-
173084875 BOLTBOLT
-
183085854 BOLT ROCKER SHAFTBOLT ROCKER SHAFT
-
193084876 BOLTBOLT
-
203084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
213084863 SUPPORT, VALVE ROCKER SHAFT MAG)SUPPORT, VALVE ROCKER SHAFT MAG)
-
223084862 PLUG, BLINDPLUG, BLIND
-
233085326 STUDSTUD
-
243080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
253087199 NUTNUT
-
263085075 GASKET ASSY (EXHAUST)GASKET ASSY (EXHAUST)
-
273086781 BOLT, FLANGEBOLT, FLANGE
-
283085527 HEAD, CYLINDER ASSY (INCL. 4-6,14-16,22,23)HEAD, CYLINDER ASSY (INCL. 4-6,14-16,22,23)
-
293089242 COVER CAMSHAFTCOVER CAMSHAFT
-
303084873 BOLT, FLANGEBOLT, FLANGE
-
313089256 CYLINDER ASSYCYLINDER ASSY
-
323086747 PIPE 2, ELBOWPIPE 2, ELBOW
-
333085370 GASKET CYLINDERGASKET CYLINDER
-
343087266 KNOCK, PIPEKNOCK, PIPE
-
353084849 UNION OIL FILTERUNION OIL FILTER
-
363085371 GASKET, HEAD ASSYGASKET, HEAD ASSY
-
373084879 ADAPTERADAPTER
