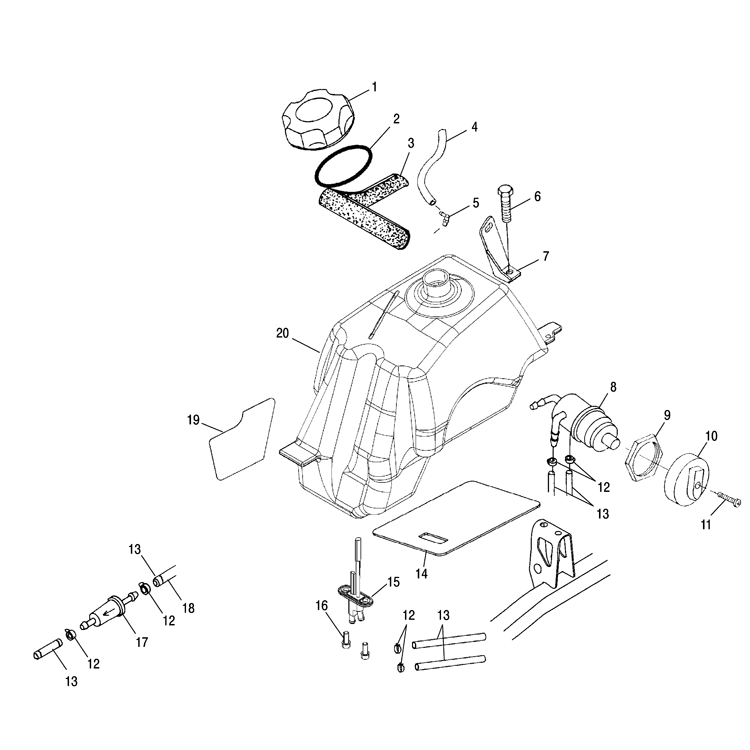

FUEL TANK для Polaris SPORTSMAN 6X6 (A07CL50AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET
    GASKET
  • 3
    5811310 SEAL FOAM, 21 IN
    SEAL FOAM, 21 IN
  • 4
    8360009-600 LINE, FUEL, 1/8 ID, 600 CM.
    LINE, FUEL, 1/8 ID, 600 CM.
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7515179 SCREW
    SCREW
  • 7
    5222154 BRKT FUEL COVER MNT, PLTD (LEFT)
    BRKT FUEL COVER MNT, PLTD (LEFT)
  • 7
    5222155 BRKT FUEL COVER MNT, PLTD (RIGHT)
    BRKT FUEL COVER MNT, PLTD (RIGHT)
  • 8
    7052161 VALVE, 3 WAY
    VALVE, 3 WAY
  • 9
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 10
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 11
    7517505 SCREW
    SCREW
  • 12
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    8450103 FUEL HOSE 250CM
    FUEL HOSE 250CM
  • 14
    5813045 FOIL FUEL TANK, 9.5X7.125
    FOIL FUEL TANK, 9.5X7.125
  • 15
    7052364 FITTING FUEL, DUAL OUTLET
    FITTING FUEL, DUAL OUTLET
  • 16
    7515136 SCREW
    SCREW
  • 17
    2530009 FILTER, SMALL, IN LINE,
    FILTER, SMALL, IN LINE,
  • 18
    8450105-65 SHEATH REFLECT SLEEVE, 16MMX65CM
    SHEATH REFLECT SLEEVE, 16MMX65CM
  • 19
    5813044 FOIL FUEL TANK
    FOIL FUEL TANK
  • 20
    2520407 FUEL TANK ASSY
    FUEL TANK ASSY
